Servo MDB89MH
Item No.: 1-03276
6-7,4 V | max. 122,6 N/cm | max. 0,13 Sek/60° | IP4X
Contents:
- 1x HiTEC Servo MDB89MH
- Servo arm set (M-O25, R-ML25)
- Mounting hardware
Description
The compact MDB89MH is a 13 mm micro servo motor with metal gears, weighing less than 28 g. It features two ball bearings, a high-end brushless motor, and a contactless magnetic encoder.
This discreet casing offers high performance and reliability for robotic and remote-controlled aerial applications, where space and weight are critical factors.
Operating with the PWM/TTL (Half Duplex) protocol over a wide voltage range of 3.5 to 8.4 volts, the MDB89MH actuator is unique in its class and delivers impressive performance for its size, including a torque of 12.5 kgf·cm at 7.4 V and a speed of 0.13 sec/60° at 7.4 V.
This discreet casing offers high performance and reliability for robotic and remote-controlled aerial applications, where space and weight are critical factors.
Operating with the PWM/TTL (Half Duplex) protocol over a wide voltage range of 3.5 to 8.4 volts, the MDB89MH actuator is unique in its class and delivers impressive performance for its size, including a torque of 12.5 kgf·cm at 7.4 V and a speed of 0.13 sec/60° at 7.4 V.

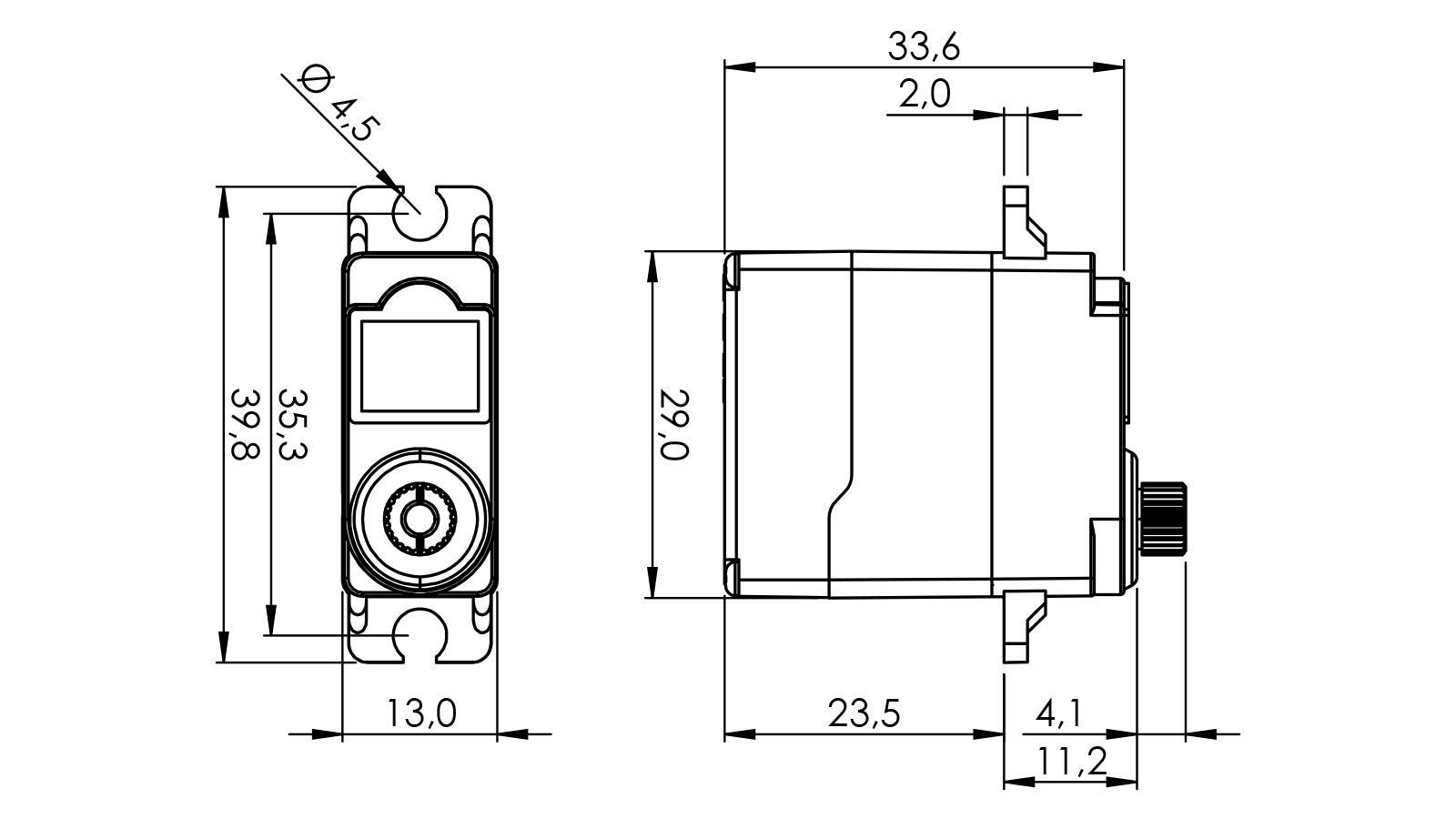

Technical data
Width (mm)
13,00
Motor Type
BLDC
Encoder
Magnetic Encoder
IP Protection Class
IP4X
Communication
PWM / TTL
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
12,50
Setting Speed max. (sec/60 degrees)
0,13
Hitec Servo Series
MDB-Series
Weight (gramm)
33,60
Horn Gear Spline
H25T (Ø6,0mm)
Length (mm)
29,00
Height (mm)
34,70
Voltage min. (V)
6,00
Torque min. (kg/cm)
10,50
Setting Speed min. (sec/60 degrees)
0,17
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
175°
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
30
Current Draw max. (mA)
3000
Torque min. (N/cm)
103,00
Torque max. (N/cm)
122,60
Housing
Engineering Plastic
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Metal
