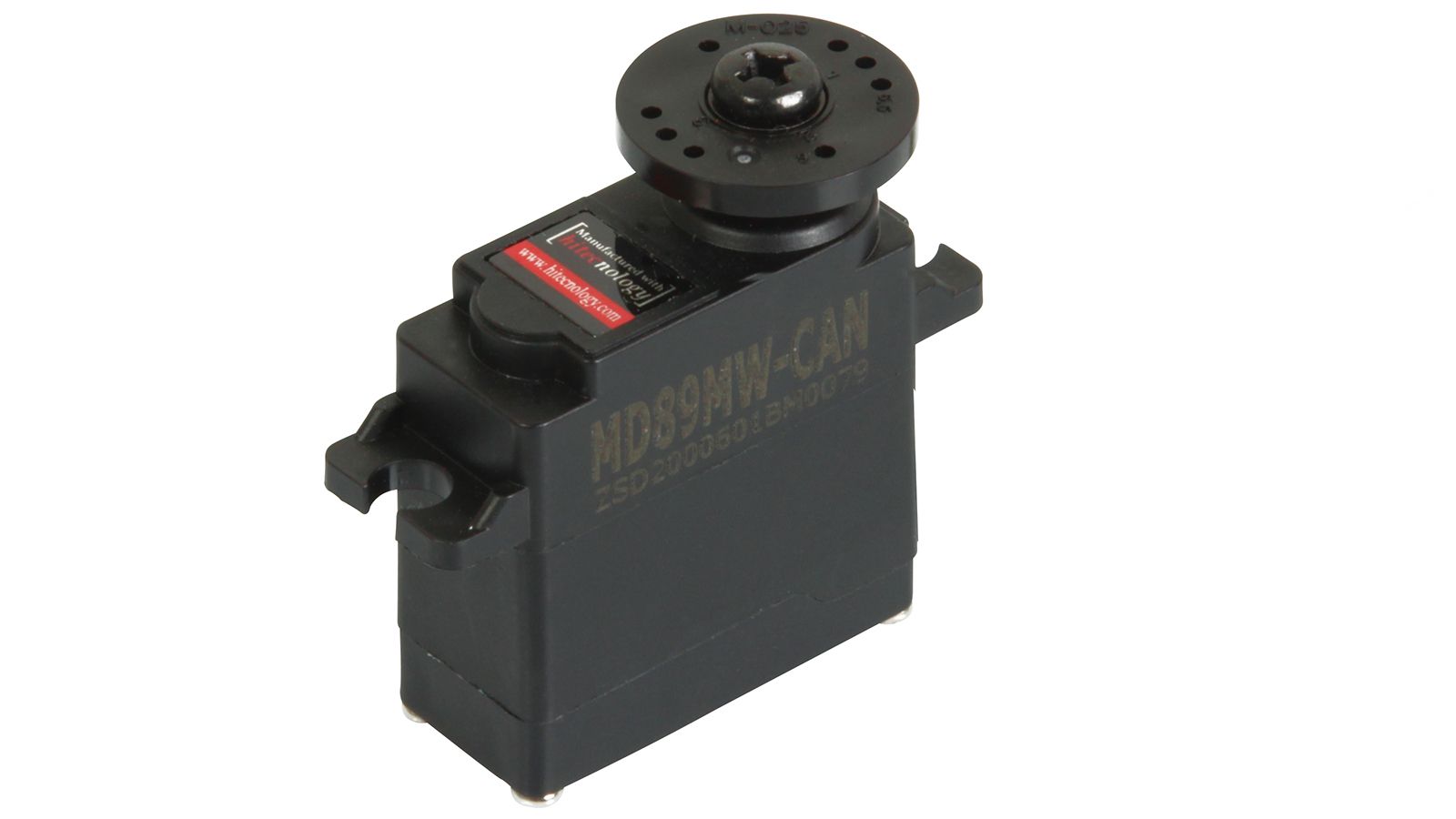

Servo MD89MW-UAVCAN / DroneCAN
Item No.: 1-01973
4,8-7,4 V | max. 83,36 N/cm | max. 0,11 Sek/60° | IP4X
Description
The HiTEC servo delivers precise angular motion in tight spaces, with a non-contact magnetic encoder for wear-free feedback. The coreless motor reacts instantly, and the metal gear train ensures smooth running and dependable torque transfer. At 7.4 V, it achieves 0.11 s per 60° and 83 N·cm, keeping dynamic sequences firmly under control. Over UAVCAN/DroneCAN, the actuator integrates reliably into distributed systems, while programmability enables application-specific tuning. The MD89MW unites fast response, accurate feedback, and dependable communication in a compact servo.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
13,00
Motor Type
Coreless
Encoder
Magnetic Encoder
IP Protection Class
IP4X
Communication
DroneCAN
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
8,50
Setting Speed max. (sec/60 degrees)
0,11
Hitec Servo Series
MD-Series
Weight (gramm)
28,00
Horn Gear Spline
H25T (Ø6,0mm)
Length (mm)
29,00
Height (mm)
30,00
Voltage min. (V)
4,80
Torque min. (kg/cm)
5,30
Setting Speed min. (sec/60 degrees)
0,17
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
300°
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
30
Current Draw max. (mA)
2700
Torque min. (N/cm)
51,98
Torque max. (N/cm)
83,36
Housing
Engineering Plastic
Connector
Hitec 4 Pin (Uni)
Gearing (characteristic)
Metal
