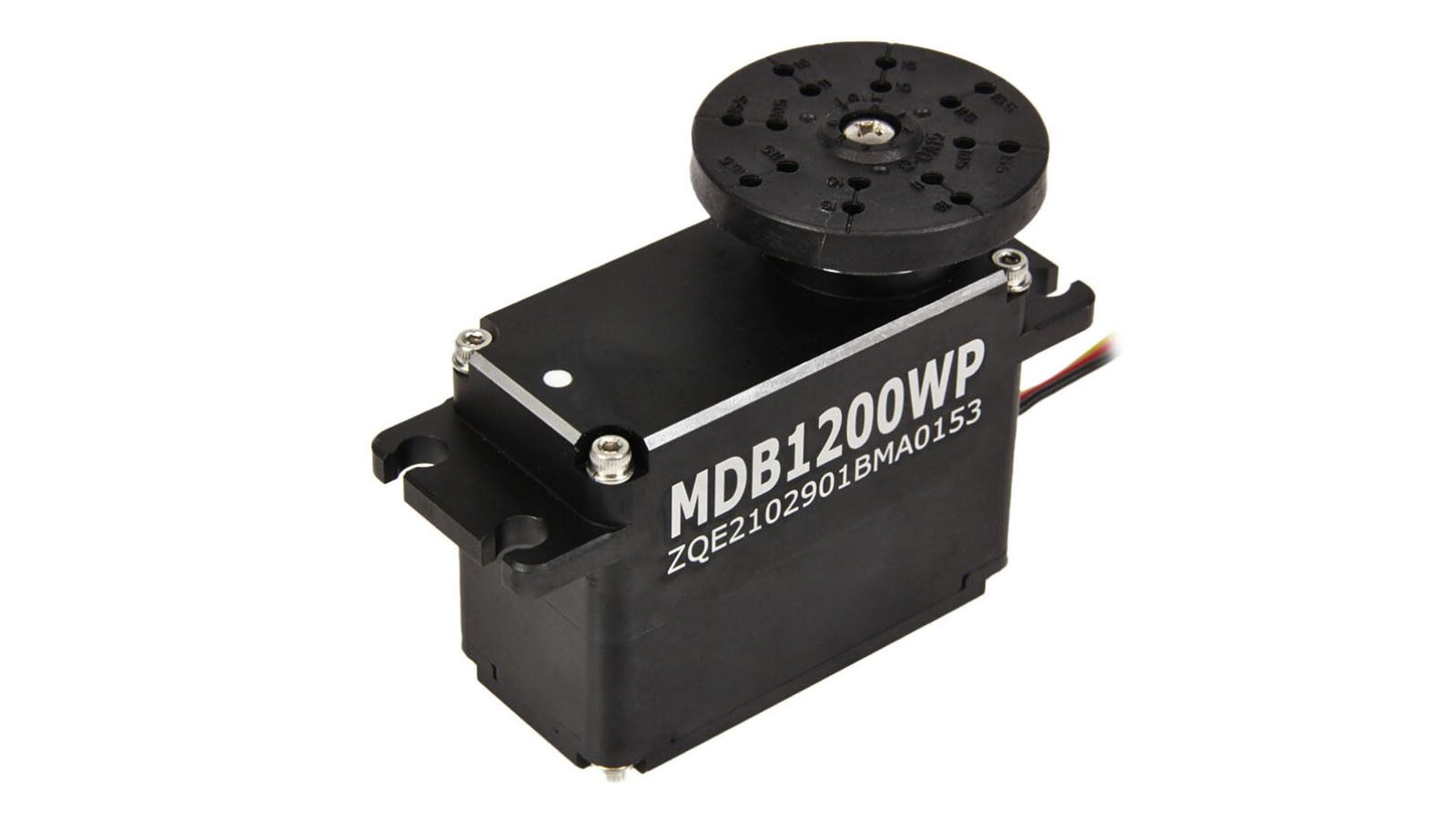

Servo MDB1200WP-UAVCAN / DroneCAN (AT)
Item No.: 1-03371
4-8,4 V | max. 1078 N/cm | max. 0,18 Sec/60° | IP67
COMING SOON:
Description
The HiTEC MDB1200WP-UAVCAN / DroneCAN servo motor combines impressive torque with precise control and robust engineering. Delivering 1078 N·cm of torque with a transit time of 0.18 sec/60° at 7.4 V, the servo responds to motion commands with powerful, dynamic performance. Its brushless DC motor supports efficient, low-wear operation, while the contactless magnetic encoder provides precise and highly repeatable position feedback. DroneCAN communication enables reliable integration of the actuator into connected control systems. With IP67 protection, the servo is also protected against dust and temporary immersion in water. The result is a powerful combination of torque, precision, and dependable communication for demanding applications.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
30,00
Motor Type
BLDC
Encoder
Magnetic Encoder
IP Protection Class
IP67
Communication
DroneCAN
Servo Type
Digital
Voltage max. (V)
8,40
Torque max. (kg/cm)
110,00
Setting Speed max. (sec/60 degrees)
0,18
Hitec Servo Series
MDB-Series
Weight (gramm)
260,00
Horn Gear Spline
15T (Ø8,0mm)
Length (mm)
62,00
Height (mm)
47,00
Voltage min. (V)
4,00
Torque min. (kg/cm)
100,00
Setting Speed min. (sec/60 degrees)
0,22
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
320°
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
20
Current Draw max. (mA)
4300
Torque min. (N/cm)
981,00
Torque max. (N/cm)
1079,10
Housing
Aluminum Alloy
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Hardened Steel
