Servo MDB1200WP
Item No.: 1-03109
6-7,4 V | max. 1079,1 N/cm | max. 0,18 Sek/60° | IP67
Contents:
- 1x HiTEC Servo MDB1200WP
- Servo arm set (2x Q-OA, 1x Q-XA)
- Mounting hardware
Description
When robust industrial performance must meet precise control, the HiTEC servo motor MDB1200WP is the right choice. This programmable digital servo provides stable position feedback with high repeatability thanks to its contactless magnetic encoder, while the brushless DC motor (BLDC) executes commands immediately and efficiently. At 7.4 V, the actuator achieves 0.18 s per 60° and delivers 1078 N·cm of torque, enabling fast, well-controlled load changes. The proven PWM/TTL interface simplifies integration into existing control systems, and the wide 4.0–8.4 V supply range supports flexible power concepts. Rated IP67, it is reliably protected against dust and temporary immersion, and the hardened steel gear train transmits power efficiently for durable operation. The MDB1200WP brings together precision and pulling power in a compact industrial servo for demanding motion tasks.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.

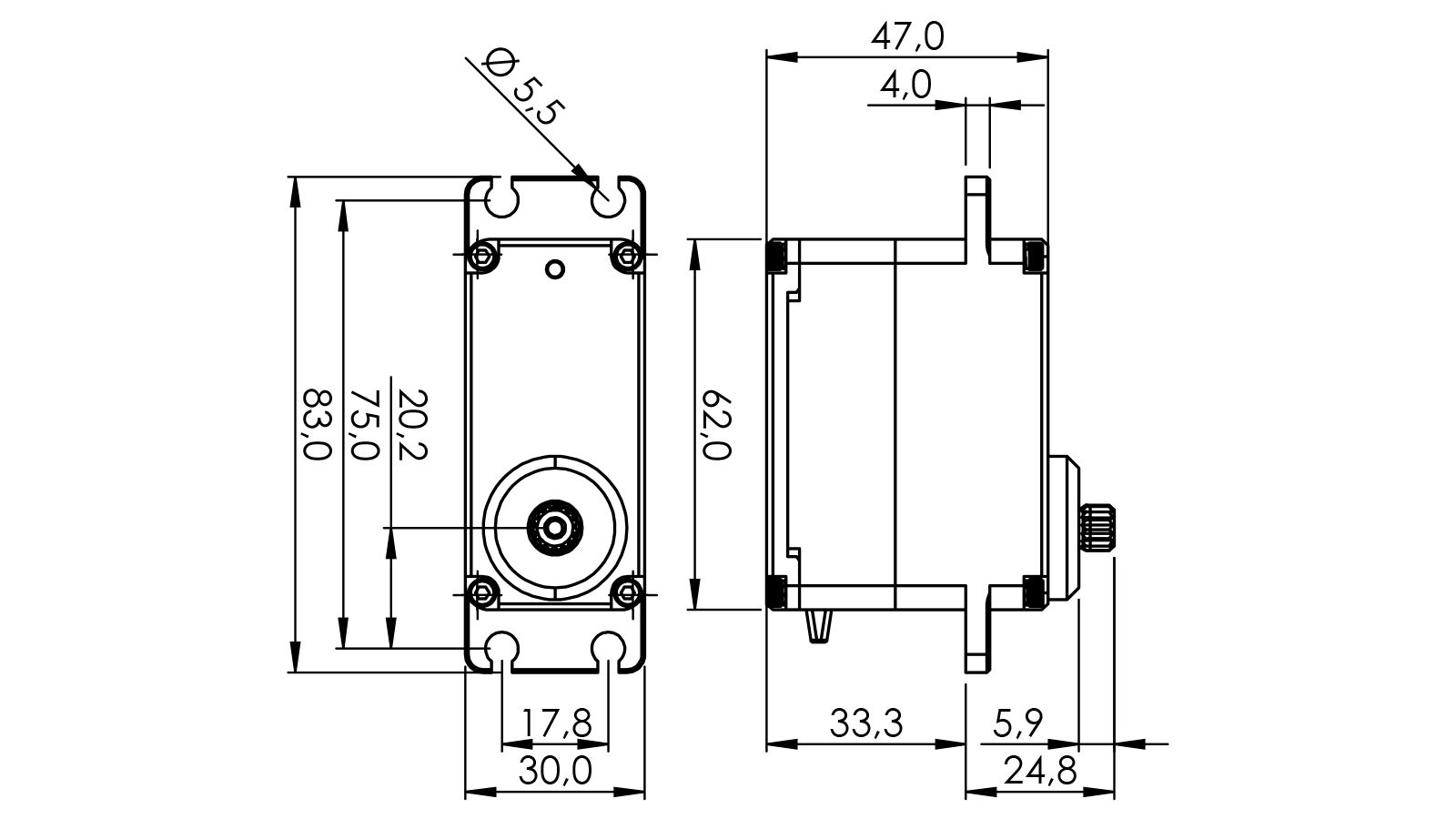

Technical data
Width (mm)
30,00
Motor Type
BLDC
Encoder
Magnetic Encoder
IP Protection Class
IP67
Communication
PWM / TTL
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
110,00
Setting Speed max. (sec/60 degrees)
0,18
Hitec Servo Series
MDB-Series
Weight (gramm)
260,00
Horn Gear Spline
15T (Ø8,0mm)
Length (mm)
62,00
Height (mm)
47,00
Voltage min. (V)
6,00
Torque min. (kg/cm)
100,00
Setting Speed min. (sec/60 degrees)
0,22
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
320°
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
20
Current Draw max. (mA)
4300
Torque min. (N/cm)
981,00
Torque max. (N/cm)
1079,10
Housing
Aluminum Alloy
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Hardened Steel
