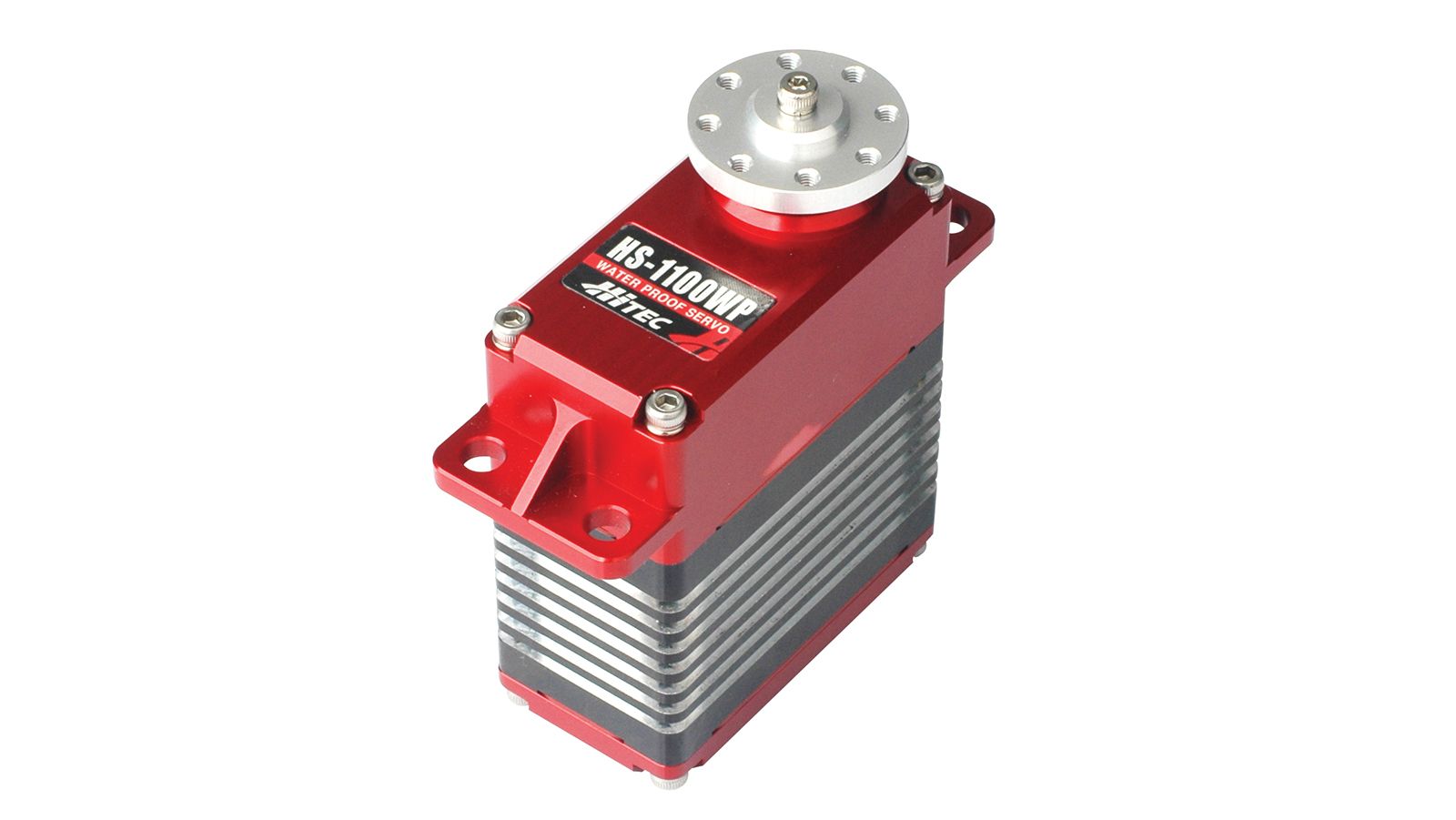

Servo HS-1100WP
Item No.: 138100
11,1-14,8 V | max. 1078,7 N/cm | max. 0,19 Sek/60° | IP67
EUS:
This actuator falls under export control regulations. End User Statement is required.
Please contact us if you are interested in buying.
Contents:
- 1x HiTEC Servo HS-1100WP
- 1x Servo arm I-MO
- Mounting hardware
Description
Designed for demanding environments with IP67 protection, the HiTEC servo delivers maximum force and reliable feedback. A precise potentiometer ensures clean centering, while the proven PWM interface integrates the actuator into existing controllers with ease. At 14.8 V, the brushed motor reaches 0.19 s per 60° and provides 1078 N·cm of torque, enabling heavy movements to be executed safely and under control. Separate supplies open up flexible architectures: motor 9.0–16.8 V, signal 3.5–8.4 V. A steel gear train engineered for high torque transfers power efficiently and supports smooth operation under load. The HS-1100WP thus combines protection, pulling power, and precision in a compact servo that impresses in industrial applications with robust sealing and straightforward control.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
33,00
Motor Type
Cored Carbon Brush
Encoder
Potentiometer
IP Protection Class
IP67
Communication
PWM
Servo Type
Analog
Voltage max. (V)
14,80
Torque max. (kg/cm)
110,00
Setting Speed max. (sec/60 degrees)
0,19
Hitec Servo Series
HS-1XXX Series
Weight (gramm)
320,00
Horn Gear Spline
15T (Ø8,0mm)
Length (mm)
64,00
Height (mm)
73,00
Voltage min. (V)
11,10
Torque min. (kg/cm)
84,00
Setting Speed min. (sec/60 degrees)
0,26
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
not possible
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
90
Current Draw max. (mA)
6500
Torque min. (N/cm)
823,80
Torque max. (N/cm)
1078,70
Housing
Aluminum Alloy
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Steel
