Servo MD980TW
Item No.: 1-03166
4,8-7,4 V | max. 431,49 N/cm | max. 0,17 Sek/60° | IP54
Contents:
- 1x HiTEC Servo MD980TW
- Servo arm set (HD-IM25, HD-LS25, HD-OS25, HD-X25, HD-IL25, HD-LL25, HD-IG25, HD-LG25)
- Mounting hardware
Description
Features
High Resolution 32-bit Programmable PWM Digital Circuit
PWM or TTL Protocol Capability <- Manual Link
Magnetic Encoder Position Sensor
Wide Operating Voltage (4.8 ~ 7.4V)
Heavy-Duty, Long Life Motors
IP65 Rated Cases
25 Tooth Output Shaft
RS-485*, PWM or TTL Control Options Available
*The available RS-485 protocol option MUST be requested at the time of special order customization.
Customization and Modification Options Available
Custom Connector Options Available
Parts and Accessories
Replacement Gear Set
Replacement Case Set
Applicable Horns and Mounting Hardware
Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset
High Resolution 32-bit Programmable PWM Digital Circuit
PWM or TTL Protocol Capability <- Manual Link
Magnetic Encoder Position Sensor
Wide Operating Voltage (4.8 ~ 7.4V)
Heavy-Duty, Long Life Motors
IP65 Rated Cases
25 Tooth Output Shaft
RS-485*, PWM or TTL Control Options Available
*The available RS-485 protocol option MUST be requested at the time of special order customization.
Customization and Modification Options Available
Custom Connector Options Available
Parts and Accessories
Replacement Gear Set
Replacement Case Set
Applicable Horns and Mounting Hardware
Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset

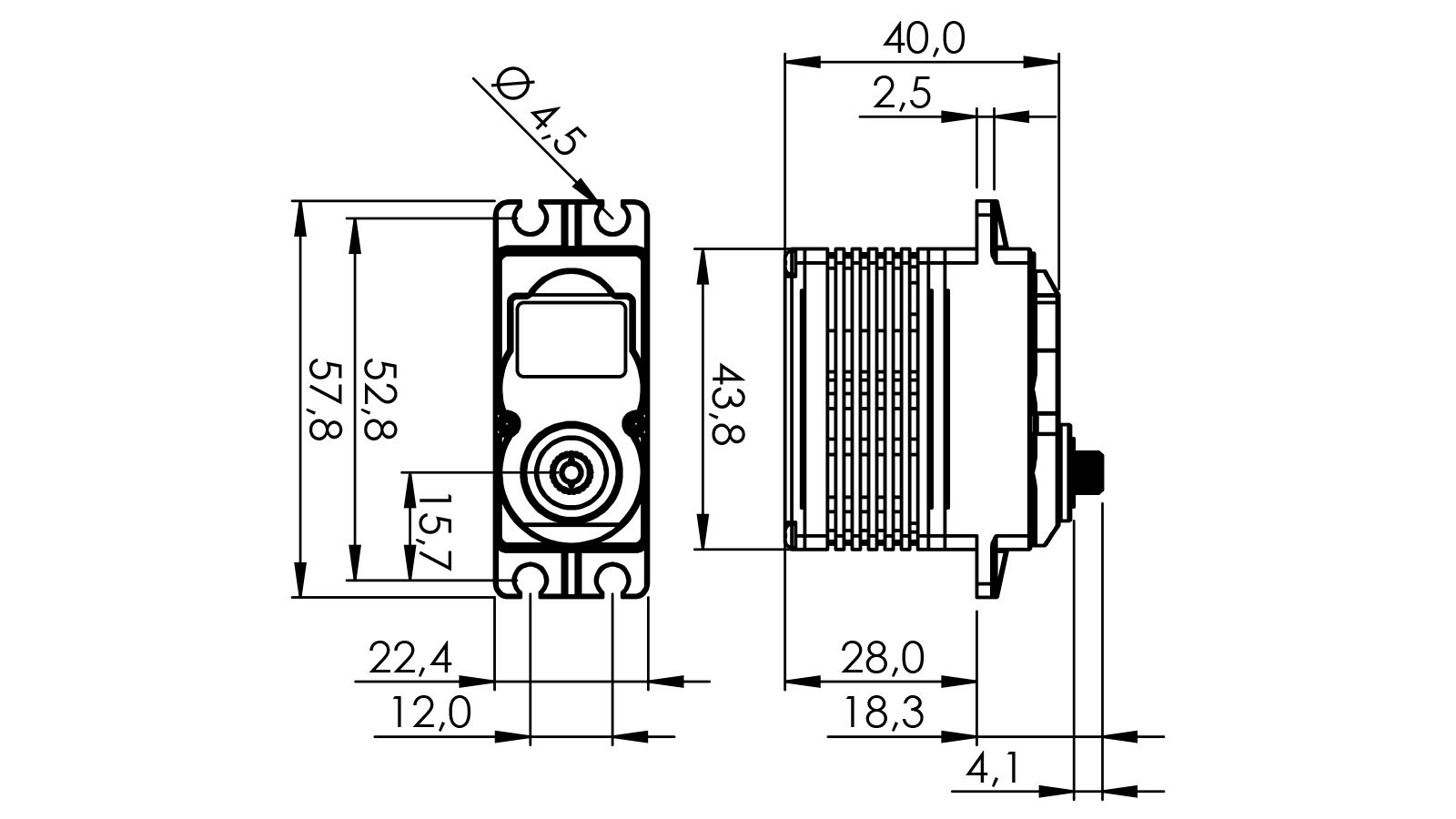

Technical data
Width (mm)
22,40
Motor Type
Coreless
Encoder
Magnetic Encoder
IP Protection Class
IP54
Communication
PWM / TTL
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
44,00
Setting Speed max. (sec/60 degrees)
0,17
Hitec Servo Series
MD-Series
Weight (gramm)
75,80
Horn Gear Spline
H25T (Ø6,0mm)
Length (mm)
43,80
Height (mm)
40,00
Voltage min. (V)
4,80
Torque min. (kg/cm)
26,00
Setting Speed min. (sec/60 degrees)
0,28
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
320°
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
30
Current Draw max. (mA)
6200
Torque min. (N/cm)
254,97
Torque max. (N/cm)
431,49
Housing
Engineering Plastic with Aluminum Heat Sink
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Titanium Alloy
