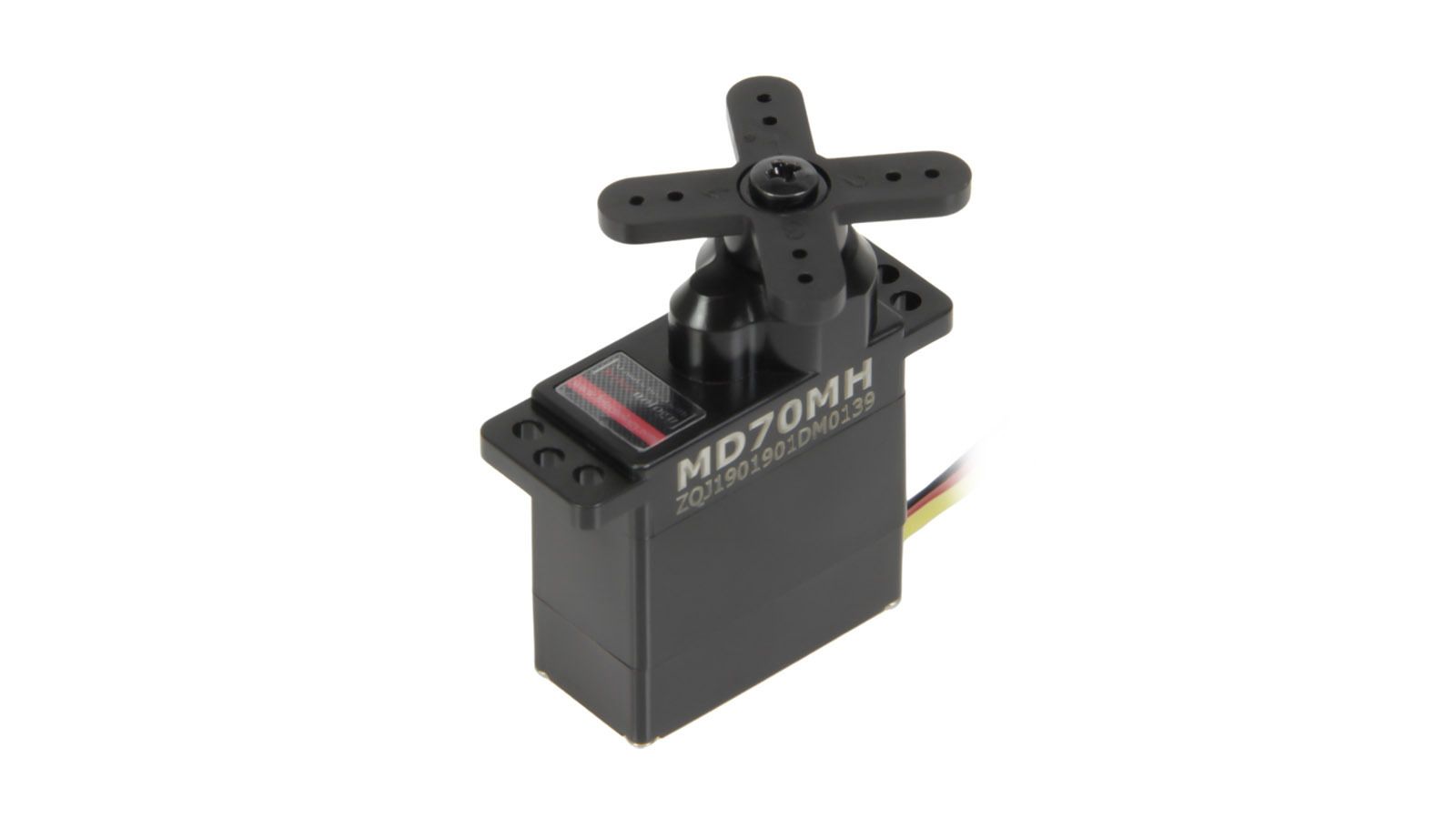

Servo MD70MH
Item No.: 1-03277
6-7,4 V | max. 37,3 N/cm | max. 0,12 Sek/60° | IP4X
Contents:
- 1x HiTEC Servo MD70MH
- Servo arm set (MS-I25, MS-L25, MS-X25)
- Mounting hardware
Description
The MD70MH is an 11.6mm, metal gear, 13-gram micro servo for higher voltage applications. Featuring a single output ball bearing, cored brush motor, and magnetic rotary encoder, the MD70MH is often used in compact fixed wing UAV and drone applications where space and weight are mission critical concerns. The MD70MH utilizes PWM/TTL(Half Duplex) command protocol at a voltage range from 4.8~7.4 volts.
Technical data
Width (mm)
11,60
Motor Type
Cored Metal Brush
Encoder
Magnetic Encoder
IP Protection Class
IP4X
Communication
PWM / TTL
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
3,80
Setting Speed max. (sec/60 degrees)
0,12
Hitec Servo Series
MD-Series
Weight (gramm)
13,00
Horn Gear Spline
M25T (Ø5,0mm)
Length (mm)
23,60
Height (mm)
24,00
Voltage min. (V)
6,00
Torque min. (kg/cm)
3,10
Setting Speed min. (sec/60 degrees)
0,15
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
320°
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
30
Current Draw max. (mA)
1300
Torque min. (N/cm)
30,40
Torque max. (N/cm)
37,30
Housing
Engineering Plastic
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Metal
