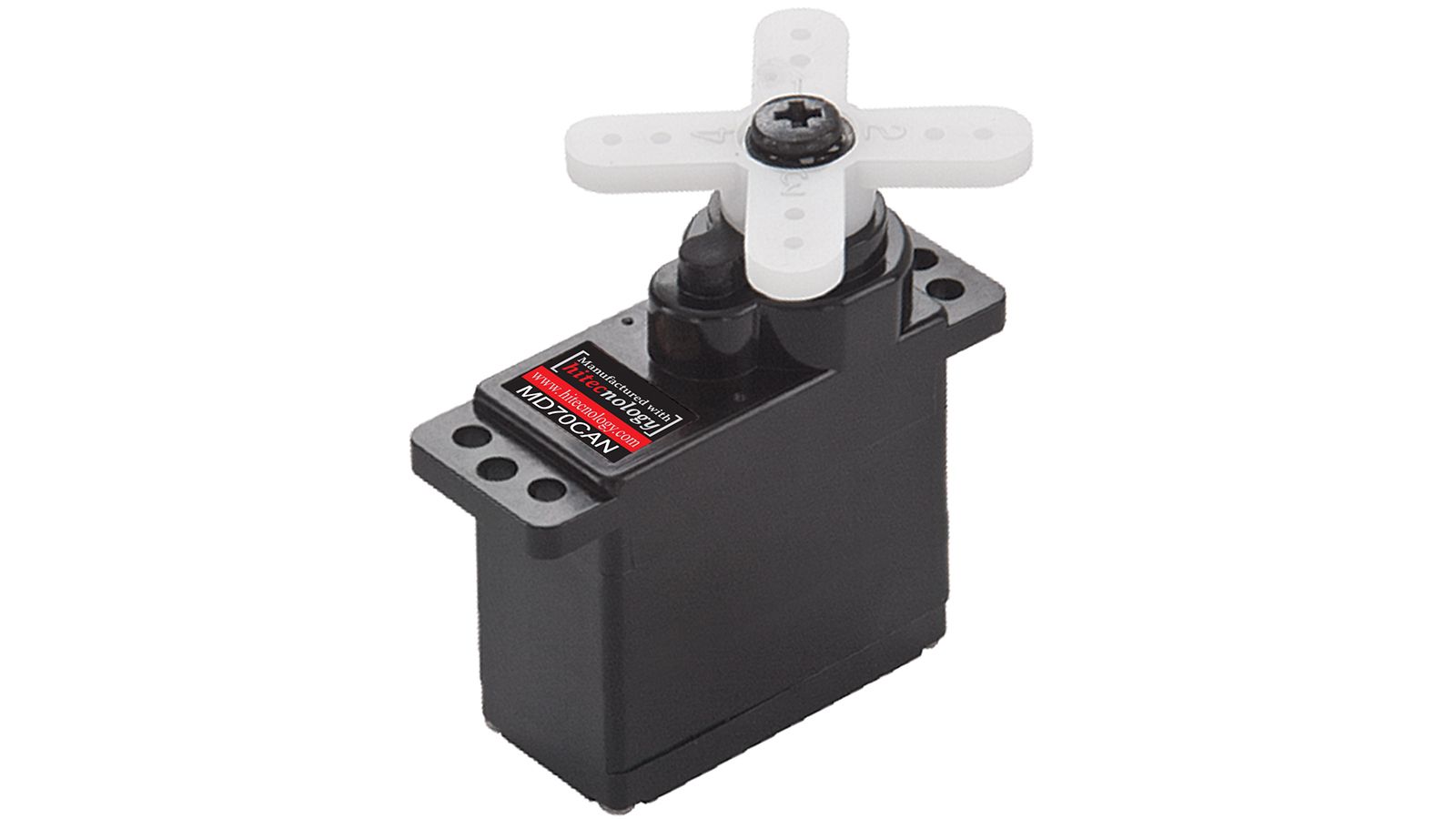

Servo MD70MH-UAVCAN / DroneCAN
Item No.: 1-01644
6-7,4 V | max. 37,27 N/cm | max. 0,12 Sek/60° | IP4X
Contents:
- 1x HiTEC Servo MD70MH-UAVCAN / DroneCAN
- Servo arm set (MS-I25, MS-X25, MS-L25)
- Mounting hardware
Description
The MD70MH-DroneCAN is an 11.6mm, metal gear, 13-gram micro servo for higher voltage applications. Featuring a single output ball bearing, cored brush motor, and magnetic rotary encoder, the MD70MH-DroneCAN is often used in compact fixed wing UAV and drone applications where space and weight are mission critical concerns. The MD70MH utilizes DroneCAN (formerly UAVCAN) control at a voltage range from 4.8~7.4 volts.
Technical data
Width (mm)
11,60
Motor Type
Cored Metal Brush
Encoder
Magnetic Encoder
IP Protection Class
IP4X
Communication
DroneCAN
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
3,80
Setting Speed max. (sec/60 degrees)
0,12
Hitec Servo Series
MD-Series
Weight (gramm)
14,10
Horn Gear Spline
M25T (Ø5,0mm)
Length (mm)
23,60
Height (mm)
24,00
Voltage min. (V)
6,00
Torque min. (kg/cm)
3,10
Setting Speed min. (sec/60 degrees)
0,15
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
300°
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
30
Current Draw max. (mA)
1300
Torque min. (N/cm)
30,40
Torque max. (N/cm)
37,27
Housing
Engineering Plastic
Connector
Hitec 4 Pin (Uni)
Gearing (characteristic)
Metal
