Servo MD485HW
Item No.: 1-01924
19.8mm, Cored, Wide Voltage, Karbonite Gear Actuator (7.4V)
Content:
- 1x HiTEC Servo MD485HW
- Servo arm set (HD-IM25, HD-LS25, HD-OS25, HD-X25)
- Mounting hardware
Description
Featuring a magnetic encoder position sensor for increased accuracy and durability, the MD485HW’s high resolution 32bit D-series circuit, 4096-step resolution and Karbonite gears provide the reliable performance required for general-use actuation applications. Its wide operating voltage range (3.5-8.4V), digital amp with MOSFET drive, and PWM control protocol add to its appeal.

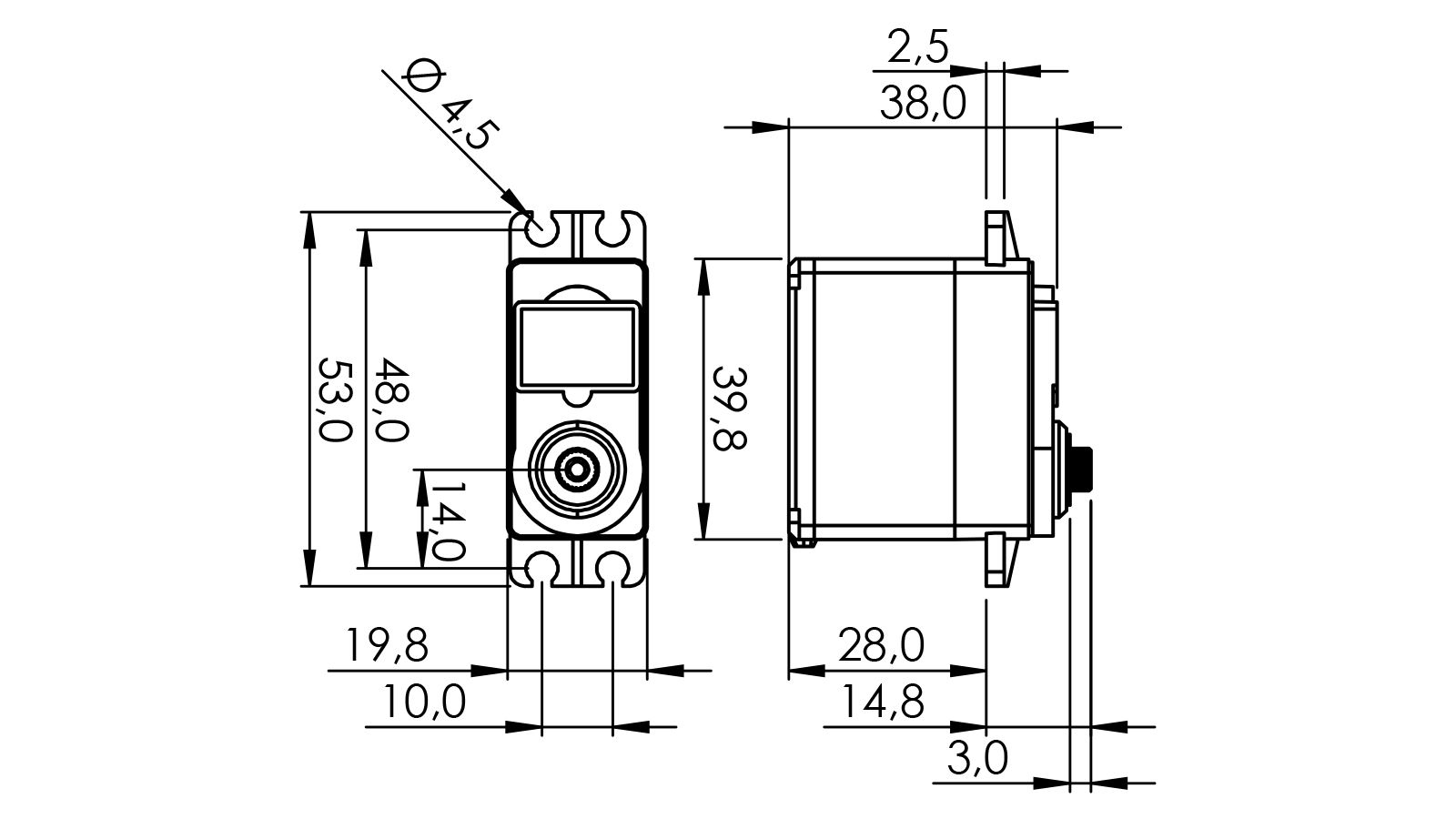

Technical data
Width (mm)
20,00
Motor Type
Cored Carbon Brush
Encoder
Magnetic Encoder
IP Protection Class
IP4X
Communication
PWM / TTL
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
7,40
Setting Speed max. (sec/60 degrees)
0,15
Hitec Servo Series
MD-Series
Weight (gramm)
43,30
Horn Gear Spline
H25T (Ø6,0mm)
Length (mm)
40,00
Height (mm)
38,00
Voltage min. (V)
4,80
Torque min. (kg/cm)
4,80
Setting Speed min. (sec/60 degrees)
0,20
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
320°
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
30
Current Draw max. (mA)
1500
Torque min. (N/cm)
47,07
Torque max. (N/cm)
72,57
Housing
Engineering Plastic
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Heavy Duty Polyamide
