Servo MD250MW-RS485
Item No.: 1-01676
4,8-7,4 V | max. 73,55 N/cm | max. 0,13 Sek/60° | IP4X
Contents:
- 1x HiTEC Servo MD250MW-RS485
- Servo arm (M-I25)
- Mounting hardware
Description
The HiTEC servo executes motion precisely and remains low-wear thanks to its non-contact magnetic encoder. Through the RS-485 interface, the actuator integrates securely into networked structures, and programmability simplifies precise parameter setup for travel and dynamics. At 7.4 V, the brushed motor reaches 0.13 s per 60° and 73 N·cm, enabling fast, controlled positioning. The wide 4–8.4 V range increases power-supply flexibility. A metal gear train ensures smooth running and reliable torque transfer, even with frequent reversals. The MD250MW combines precision, RS-485 communication strength, and a compact footprint for efficient motion tasks.
For further technical advice, please contact our Technical Support team?.
For further technical advice, please contact our Technical Support team?.

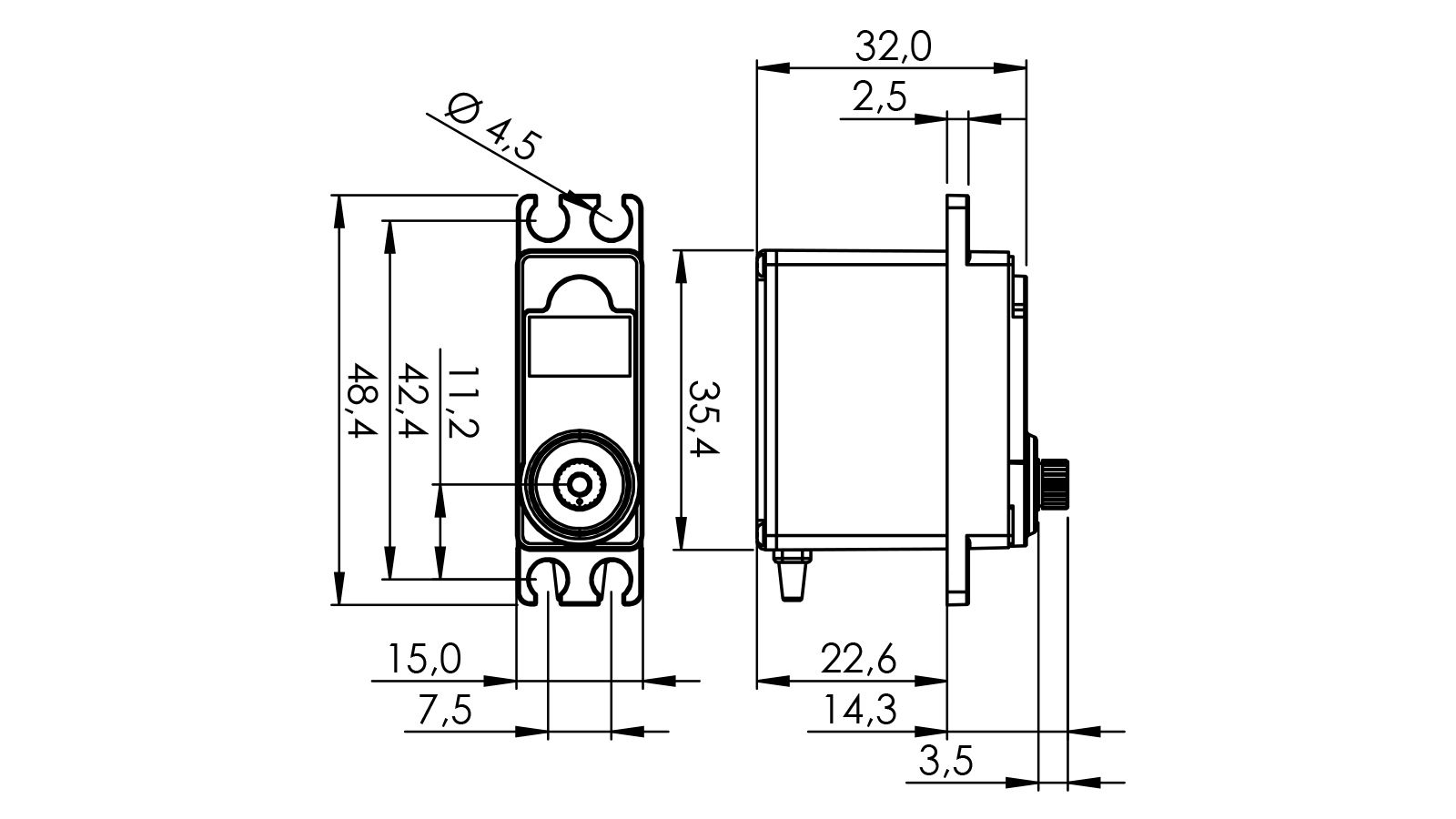

Technical data
Width (mm)
15,00
Motor Type
Cored Carbon Brush
Encoder
Magnetic Encoder
IP Protection Class
IP4X
Communication
RS-485
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
7,50
Setting Speed max. (sec/60 degrees)
0,13
Hitec Servo Series
MD-Series
Weight (gramm)
40,00
Horn Gear Spline
H25T (Ø6,0mm)
Length (mm)
35,40
Height (mm)
32,00
Voltage min. (V)
4,80
Torque min. (kg/cm)
4,90
Setting Speed min. (sec/60 degrees)
0,20
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
320°
Multi Turn
not possible
Continuos Rotation
No
Current Draw at idle (mA)
40
Current Draw max. (mA)
1600
Torque min. (N/cm)
48,05
Torque max. (N/cm)
73,55
Housing
Engineering Plastic
Connector
Hitec 4 Pin (Uni)
Gearing (characteristic)
Steel
