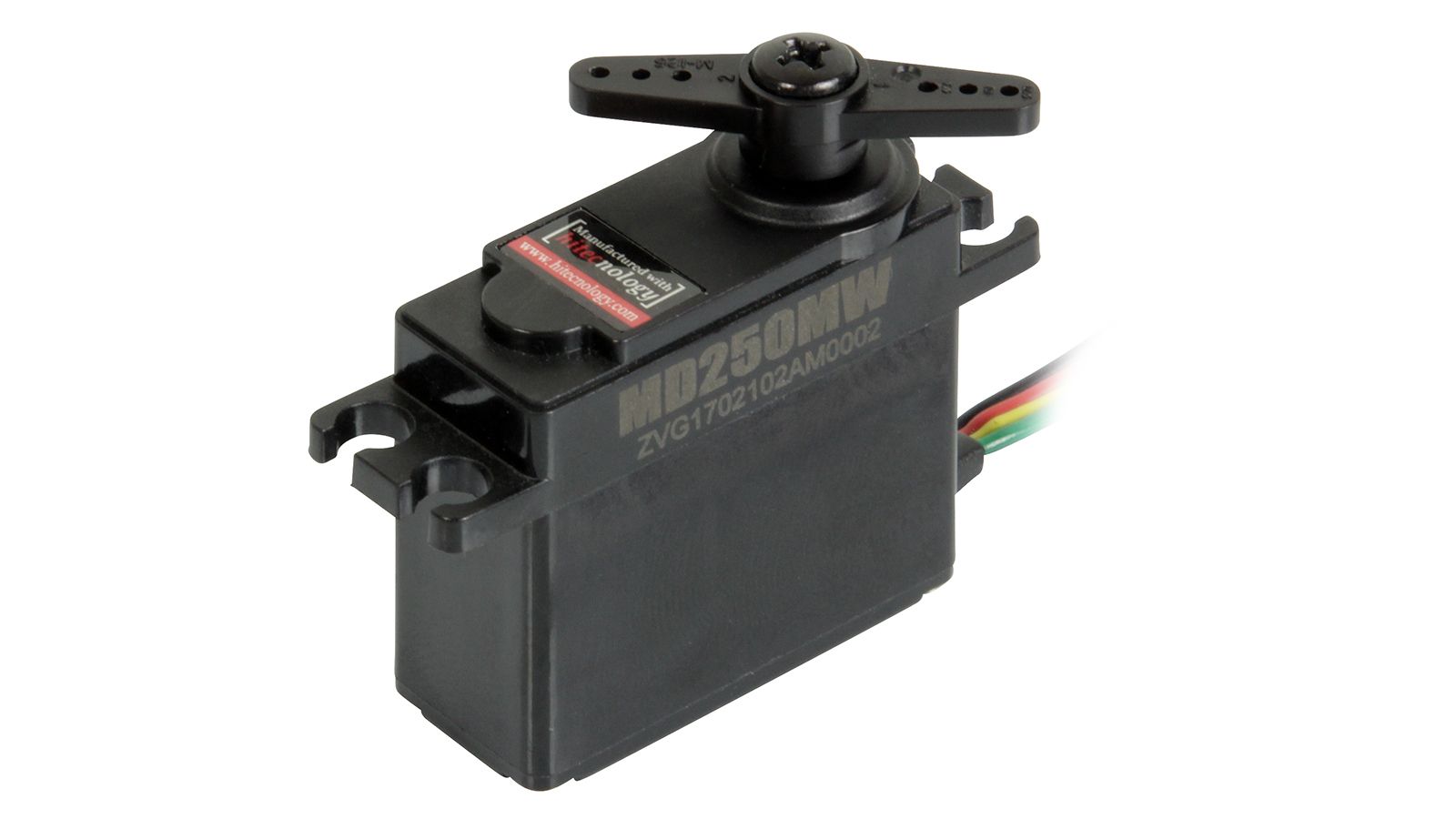

Servo MD250MW-CAN (AT)
Item No.: 1-02846
4,8-7,4 V | max. 73,55 N/cm | max. 0,13 Sek/60° | IP4X
Contents:
- 1x HiTEC Servo MD250MW-CAN
- Servo arm (M-I25)
- Mounting hardware
Description
The HiTEC servo combines precise feedback with easy networking. A non-contact magnetic encoder provides wear-free position data and clean centering, enabling repeatable motion. Via the CAN 2.0A/B interface, the system communicates reliably across the bus, while programmability allows exact adaptation to your application. At 7.4 V, the brushed motor achieves 0.13 s per 60° and delivers 73 N·cm, ideal for fast sequences with defined stops. The 4–8.4 V supply range adds flexibility and supports diverse system architectures. A metal gear train transfers power efficiently and keeps operation smooth under load. In this way, the MD250MW brings speed, control, and integrated communication in a compact form.
For further technical advice, please contact our Technical Support team?.
For further technical advice, please contact our Technical Support team?.
Technical data
Width (mm)
15,00
Motor Type
Cored Carbon Brush
Encoder
Magnetic Encoder
IP Protection Class
IP4X
Communication
CAN 2.0A/B
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
7,50
Setting Speed max. (sec/60 degrees)
0,13
Hitec Servo Series
MD-Series
Weight (gramm)
38,80
Horn Gear Spline
H25T (Ø6,0mm)
Length (mm)
35,40
Height (mm)
32,00
Voltage min. (V)
4,80
Torque min. (kg/cm)
4,90
Setting Speed min. (sec/60 degrees)
0,20
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
300°
Multi Turn
± 32760 Turns
Continuos Rotation
No
Current Draw at idle (mA)
40
Current Draw max. (mA)
1600
Torque min. (N/cm)
48,05
Torque max. (N/cm)
73,55
Housing
Engineering Plastic
Connector
Hitec 4 Pin (Uni)
Gearing (characteristic)
Steel
