Servo HS 70 MG

Item No.: 112070
Electric Motor
32,90 €
Price incl. VAT plus Shipping

Currently not available

Avis de disponibilité
Description
Small, powerful high-performance servo of the < 12 mm class

Almost a kg/cm more force than the HS-65MG. Quasi the torque variant of the HS-65MG. The HS-70MG Nano Servos offers unparalleled durability thanks to its exclusive metal gear and with a ball bearing on the output shaft, which is particularly well suited when low backlash and high positioning precision are important.
The HS-70MG servo delivers maximum performance with minimum weight and with this data it is also a favorite for industrial applications. Long life and uniquely designed gearing make it one of the most reliable and efficient mini servos on the market.

The fast and powerful HS-70MG is ideal for applications in small but demanding models, such as 3D models or 450 helis.

Operating voltage 4.8 - 6.0V
Force at 4.8 volts 2.3 kgcm
Force at 6.0 volts 3.0 kgcm
Actuating time at 4.8 volts 0.17 sec/60°
Actuating time at 6.0 volts 0.14 sec/60°
Dimensions 23.6 x 11.6 x 28.9mm
Technical data
Servo Width (mm)
11,60
Motor Type
Brushed Motor
Encoder
Potentiometer
Waterproof
No
Communication
PWM
Servo Type
Analogue
Max. Voltage (V)
6,00
Max. Force (kg/cm)
3,00
Max. Setting Speed (sec / 60 degrees)
0,14
Gearing
M25T (Ø5,0)
Hitec Servo Series
HS-Series
Optional Accessories

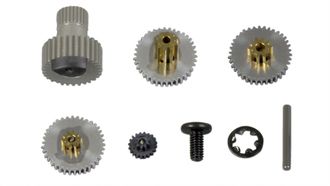

Spare Parts
