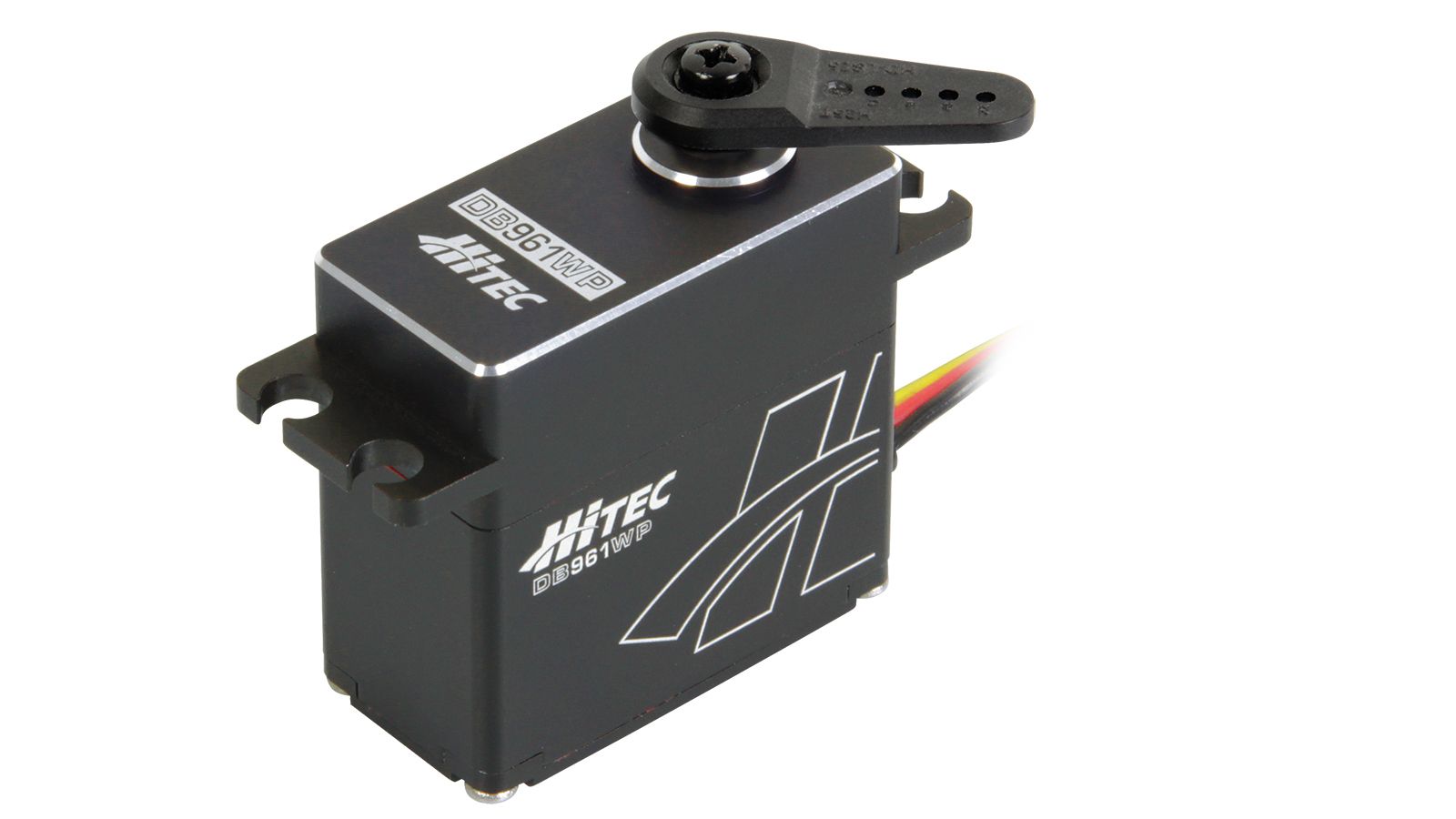

Servo DB961WP
Item No.: 1-02571
6-7,4 V | max. 539,4 N/cm | max. 0,15 Sek/60° | IP67
Contents:
- 1x HiTEC Servo DB961WP
- Servo arm set (HD-IM25, HD-LS25, HD-OS25, HD-X25)
- Mounting hardware
Description
This HiTEC servo motor combines efficient drive technology with precise feedback for motion-critical tasks. A brushless DC motor delivers high power density and smooth running, promoting clean movements and stable holding. The contact analog potentiometer provides immediate, high-resolution position data and stabilizes centering. As a programmable digital servo with a 16-bit architecture, its control behavior can be tailored exactly to the application. With up to 539 N·cm (763.3 oz-in) of torque, ample reserves are available, and a transit time of 0.15 s/60° enables brisk cycles. The IP67 rating reliably protects against dust and temporary immersion, so performance is maintained even in harsh environments. The DB961WP is the right choice wherever high force, precise guidance, and durable dynamics are required and the actuator must deliver reliably over time.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.

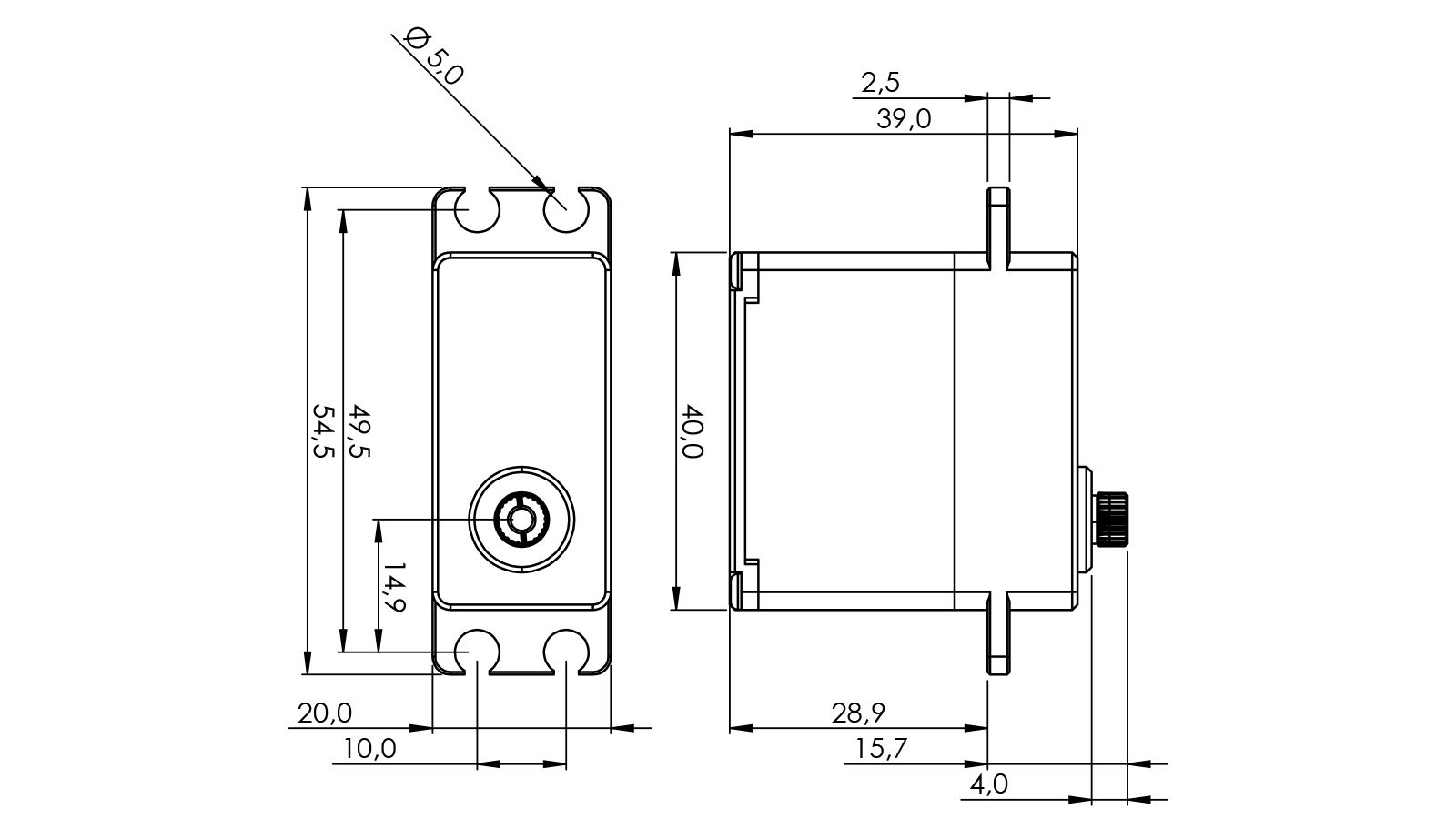

Technical data
Width (mm)
20,00
Motor Type
BLDC
Encoder
Potentiometer
IP Protection Class
IP67
Communication
PWM / TTL
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
55,00
Setting Speed max. (sec/60 degrees)
0,15
Hitec Servo Series
DB-Series
Weight (gramm)
90,00
Horn Gear Spline
H25T (Ø6,0mm)
Length (mm)
40,00
Height (mm)
39,00
Voltage min. (V)
6,00
Torque min. (kg/cm)
55,00
Setting Speed min. (sec/60 degrees)
0,18
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
260°
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
35
Current Draw max. (mA)
8000
Torque min. (N/cm)
539,40
Torque max. (N/cm)
539,40
Housing
Aluminum Alloy
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Hardened Steel
