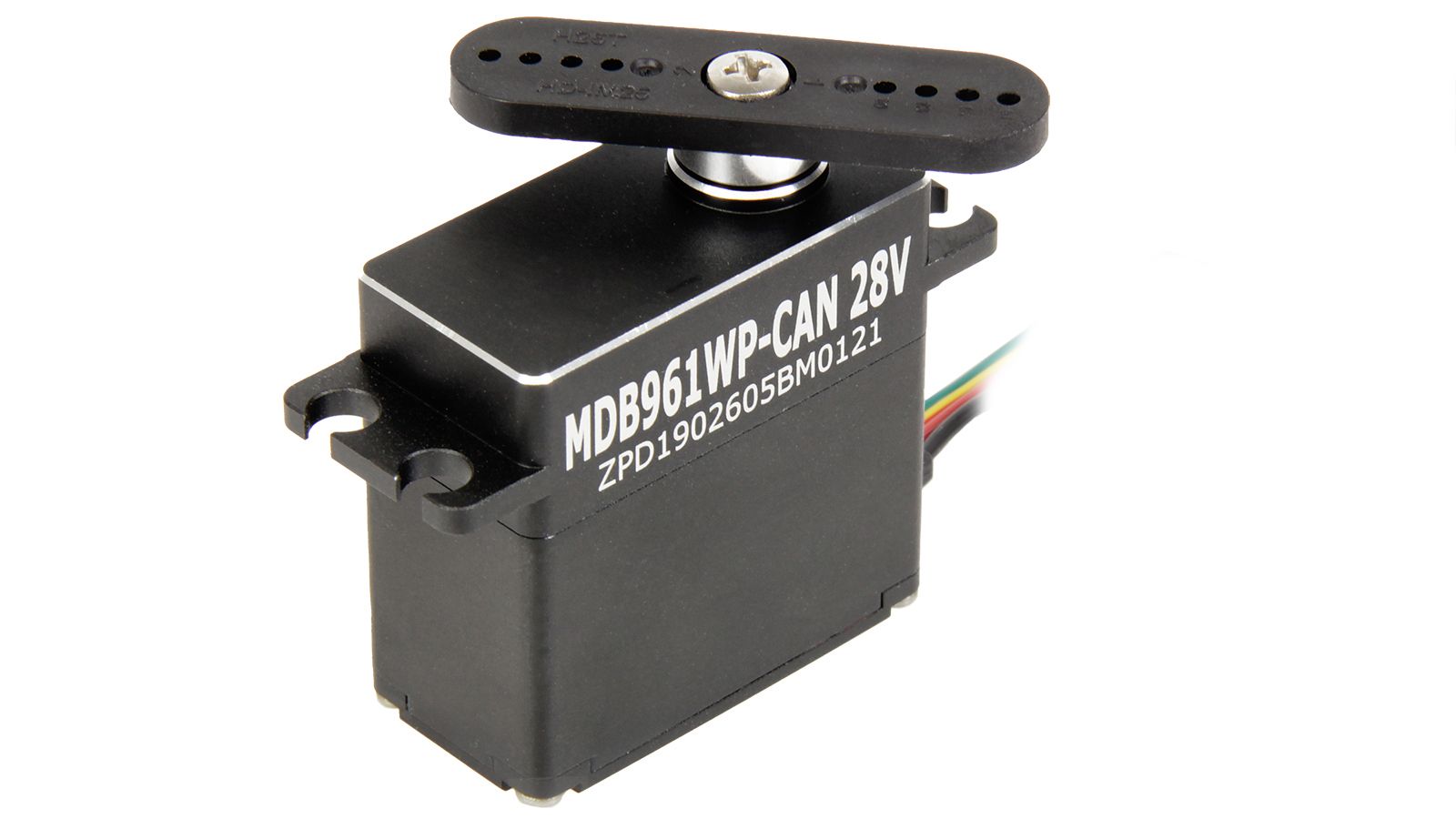

Servo MDB961WP-CAN-28V
Item No.: 1-03003
12-28 V | max. 588,4 N/cm | max. 0,14 Sek/60° | IP67
Contents:
- 1x HiTEC Servo MDB961WP-CAN 28V
- Servo arm set (2x HD-IM25, 1x HD-OS25, 1x HD-X25)
- Mounting hardware
Description
More voltage headroom, more punch: the HiTEC MDB961WP with CAN 2.0A/B and a wide 8.0–32.0 V supply supports advanced power concepts and handles load peaks with ease. The programmable digital servo pairs a contactless magnetic encoder for repeatable positioning with a responsive BLDC drive. At 7.4 V it reaches a swift 0.14 s/60° and delivers 588 N·cm (52.04 lbf·in), enabling precise, forceful motion under load. The hardened steel gear train ensures durable, efficient torque transfer, and IP67 protection keeps operation reliable in damp, challenging environments. Compact, powerful, and exact—the MDB961WP is ready for high-duty industrial motion.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
20,00
Motor Type
BLDC
Encoder
Magnetic Encoder
IP Protection Class
IP67
Communication
CAN 2.0A/B
Servo Type
Digital
Voltage max. (V)
28,00
Torque max. (kg/cm)
60,00
Setting Speed max. (sec/60 degrees)
0,14
Hitec Servo Series
MDB-Series
Weight (gramm)
90,00
Horn Gear Spline
H25T (Ø6,0mm)
Length (mm)
40,00
Height (mm)
39,00
Voltage min. (V)
12,00
Torque min. (kg/cm)
60,00
Setting Speed min. (sec/60 degrees)
0,14
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
300°
Multi Turn
± 32760 Turns
Contniuos Rotation
No
Current Draw at idle (mA)
11
Current Draw max. (mA)
6700
Torque min. (N/cm)
588,40
Torque max. (N/cm)
588,40
Housing
Aluminum Alloy
Connector
Hitec 4 Pin (Uni)
Gearing (characteristic)
Hardened Steel
