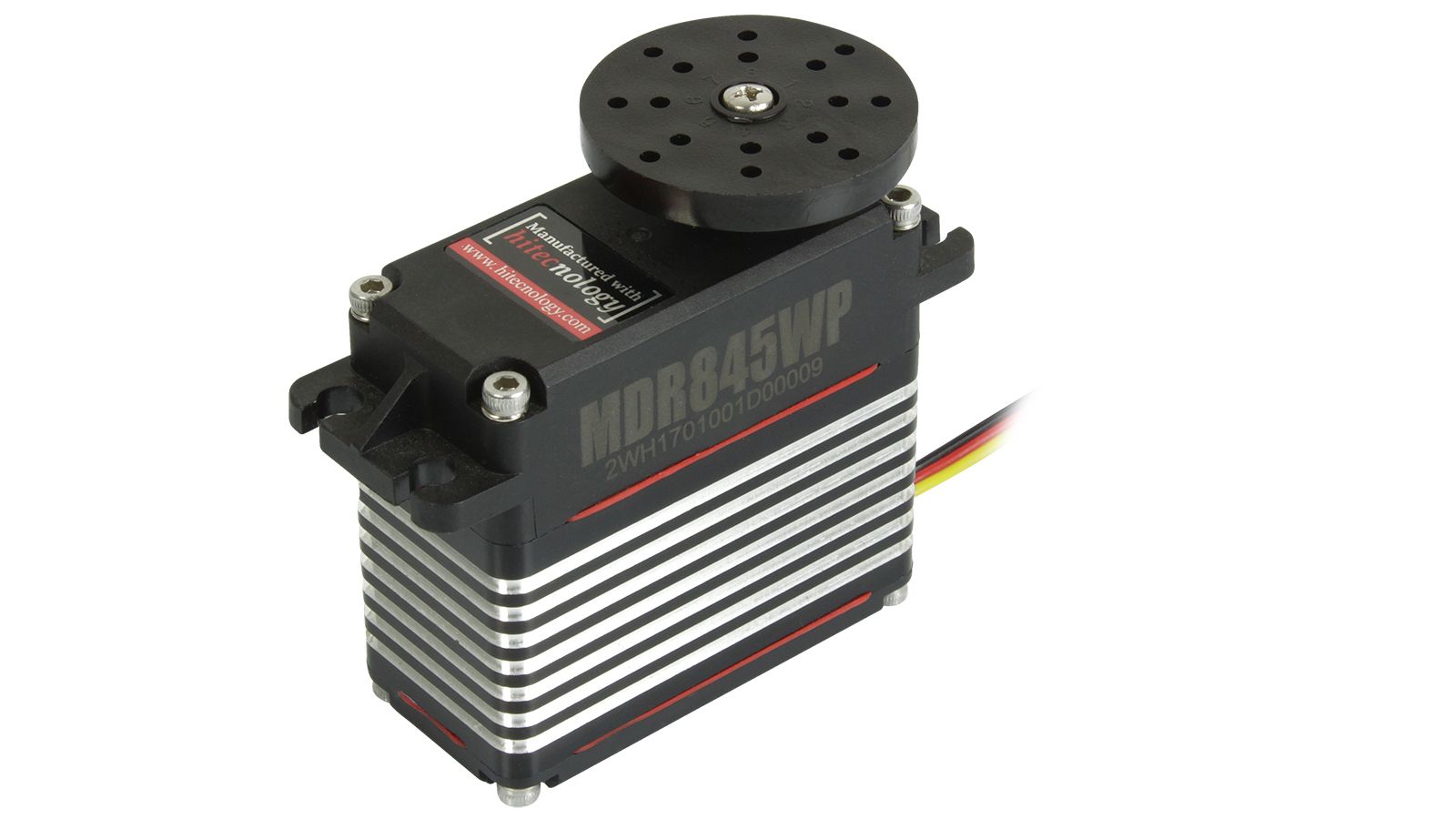

Servo MDR845WP (360°)
Item No.: 1-01329
4,8-7,4 V | max. 490,33 N/cm | max. 0,17 Sek/60° | IP67
Contents:
- 1x HiTEC Servo MDR845WP
- Servo arm set (2x Q-OA, Q-XA, Q-MIA)
- Mounting hardware
Description
The HiTEC servo motor MDR845WP enables continuous rotation and multi-turn travel up to ±1800° for applications requiring endless positioning. This programmable digital servo uses a contactless magnetic encoder for wear-free, repeatable position data, while the brushed motor executes commands directly with fine controllability. At 7.4 V, the actuator achieves 0.17 s per 60° and delivers 490 N·cm (43.37 lbf·in) of torque, ensuring controlled, dynamic motion over multiple revolutions. The proven PWM/TTL interface simplifies integration into existing control systems, and the 4.0–8.4 V supply range provides design flexibility. Rated IP67, it is dust-tight and resistant to temporary immersion, ensuring reliable operation in humid, splash-exposed environments. The result is a servo that combines flexible kinematics with precise control and stable communication.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.

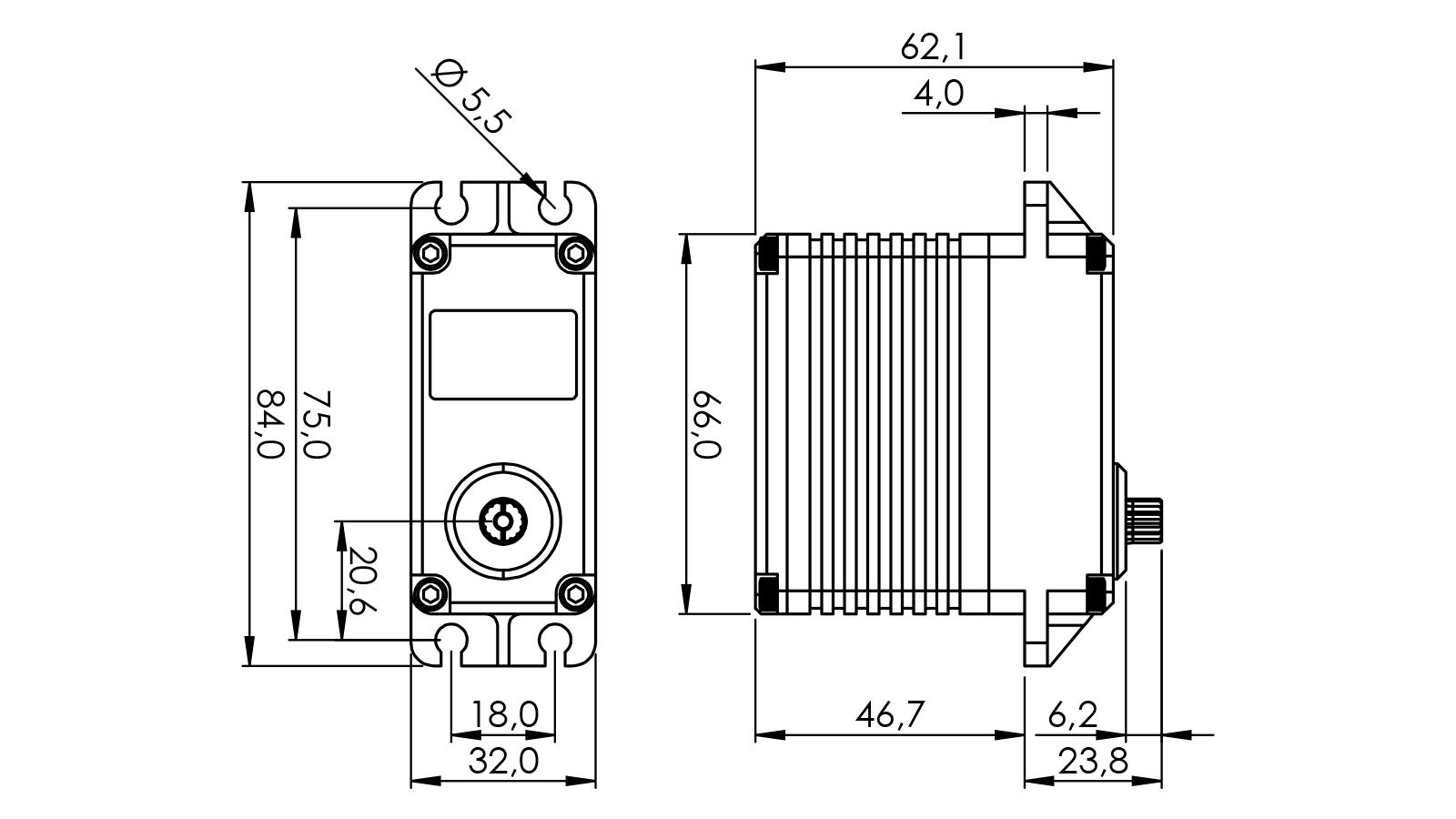

Technical data
Width (mm)
32,00
Motor Type
Cored Carbon Brush
Encoder
Magnetic Encoder
IP Protection Class
IP67
Communication
PWM / TTL
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
50,00
Setting Speed max. (sec/60 degrees)
0,17
Hitec Servo Series
MD-Series
Weight (gramm)
229,40
Horn Gear Spline
15T (Ø8,0mm)
Length (mm)
66,00
Height (mm)
62,10
Voltage min. (V)
4,80
Torque min. (kg/cm)
32,50
Setting Speed min. (sec/60 degrees)
0,26
Angle Standard (degrees)
± 1800°
Multi Turn
± 8 Turns
Contniuos Rotation
Yes
Current Draw at idle (mA)
30
Current Draw max. (mA)
10000
Torque min. (N/cm)
318,72
Torque max. (N/cm)
490,33
Housing
Engineering Plastic with Aluminum Heat Sink
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Steel
