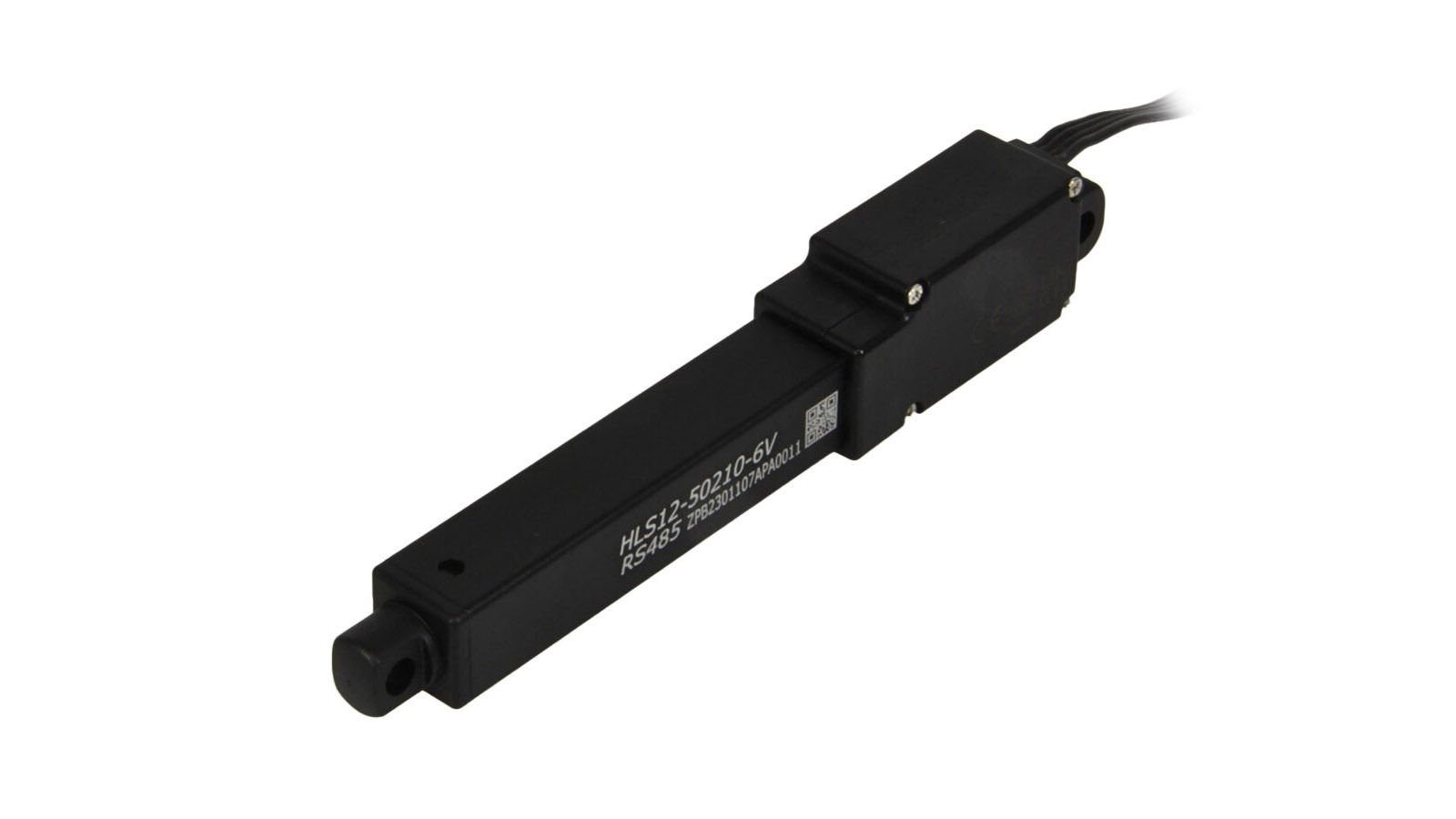

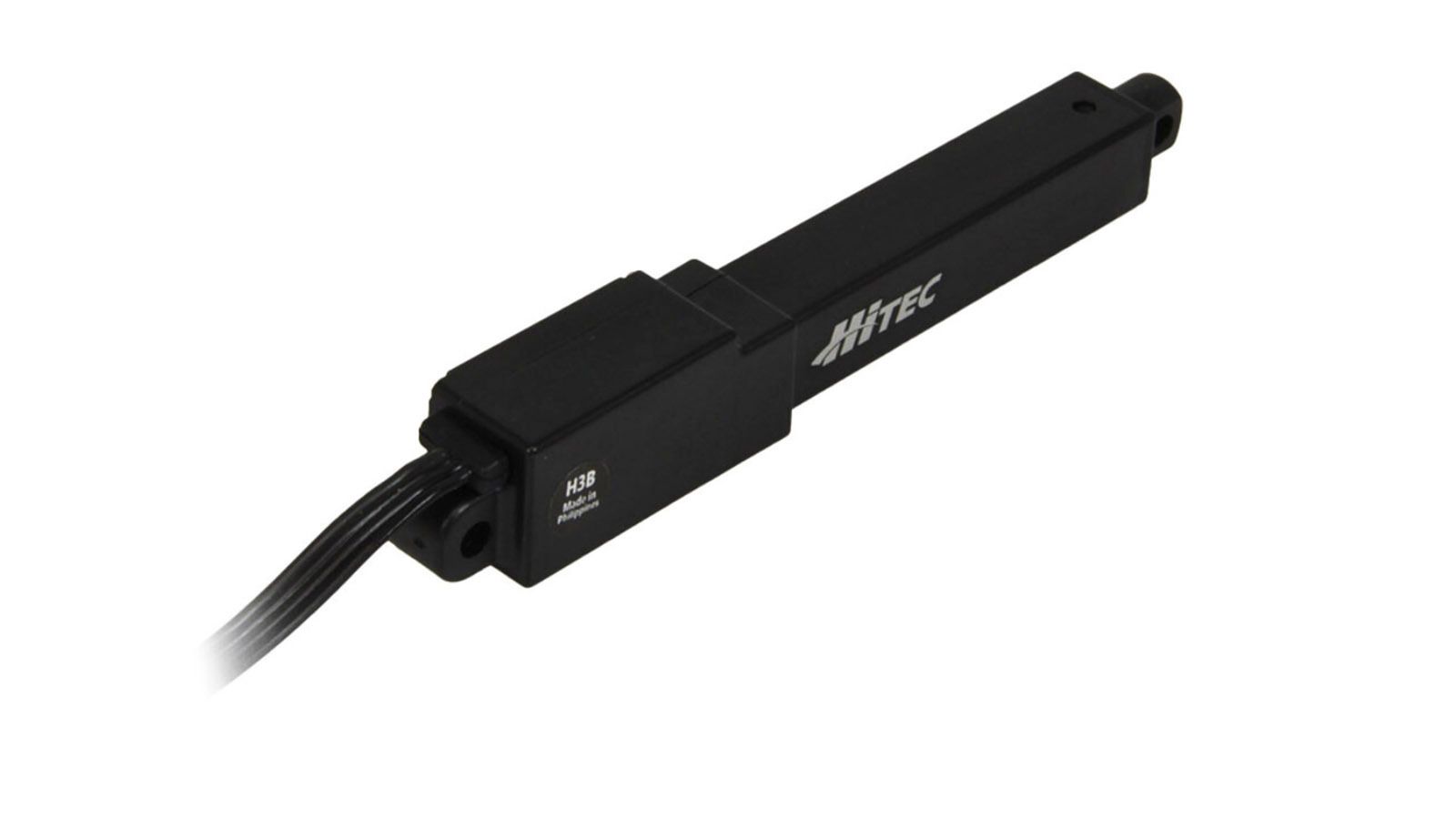

Linear Actuator HLS12-RS485-50210
Item No.: 1-03308
4 - 8,4 V | 50 mm | 210 : 1 | max. 121,6 N | max. 7,5 mm/s
Contents:
- 1x HiTEC Linear actuator HLS12-RS485-50210
- Mounting hardware
Description
The HiTEC linear actuator HLS12-RS485-50210 executes controlled linear motion and communicates clearly over RS-485. A brushed motor with a metal core drives a robust metal gear train, transmitting power cleanly across the 50 mm (1.97 in) stroke. The 210:1 gear ratio delivers steady 7.5 mm/s (0.30 in/s) at 7.4 V while providing up to 121.60 N (27.34 lbf) of thrust. Programmability adds flexibility, and the 4.0–8.4 V operating range simplifies power planning. With this linear actuator, you achieve repeatable positioning in a compact footprint.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.

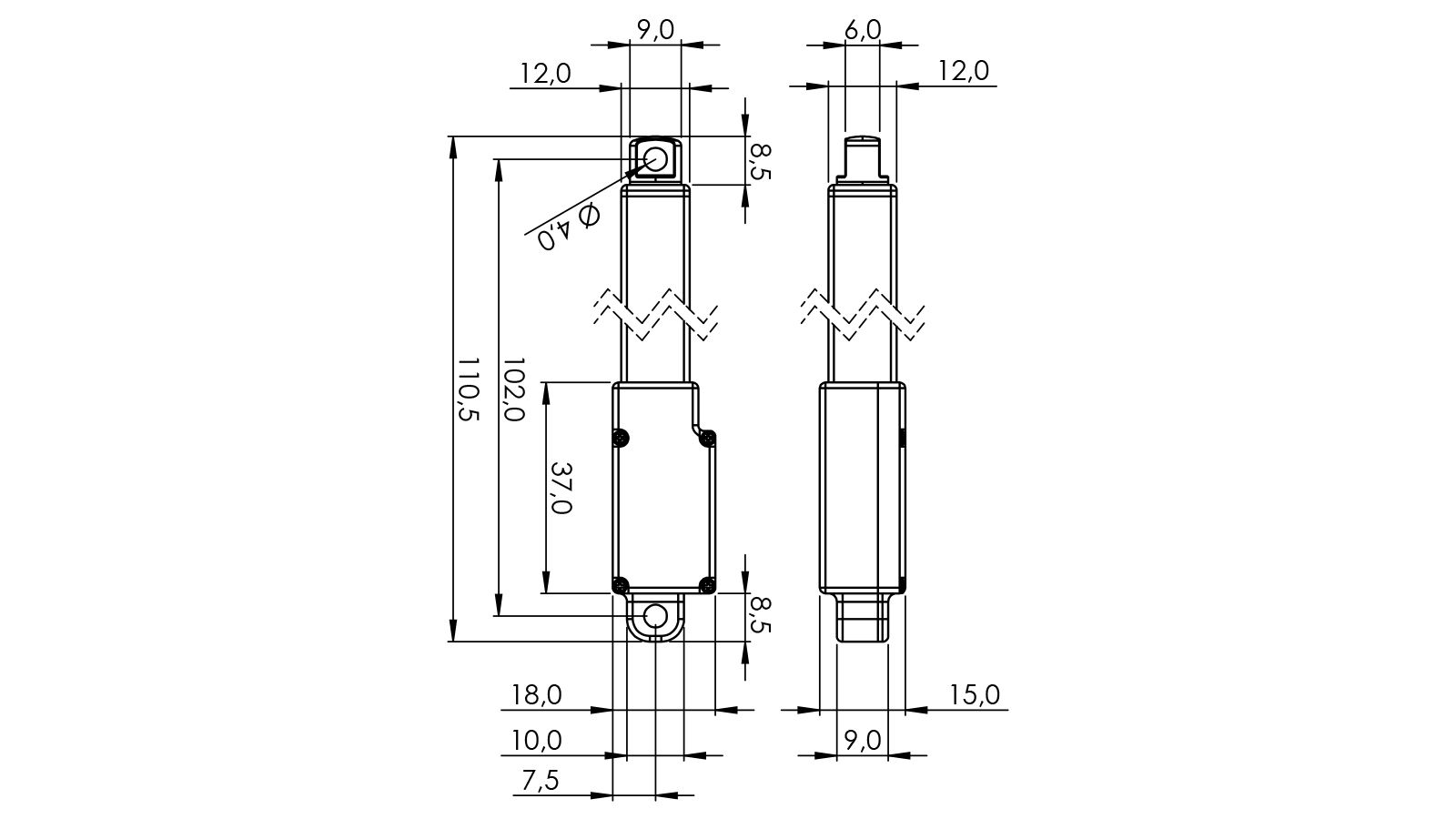

Technical data
Length (mm)
102,00
Width (mm)
15,00
Height (mm)
18,00
Weight (g)
40,00
Communication
RS485
output length (mm)
50
Transmission Ratio
210:1
Torque max. lifted at 6V (N)
78,45
Torque min. (N)
78,45
Torque max. (N)
121,60
Side load max. (N)
30,00
Speed min. (mm/s)
4,90
Speed max. (mm/s)
7,50
Voltage min. (V)
4,00
Voltage max. (V)
8,40
Motor type
Cored Metal Brush
Gearing
Metal
Housing
Engineering Plastic
Connector
Hitec 4 Pin (Uni)
Servo Type
Digital
