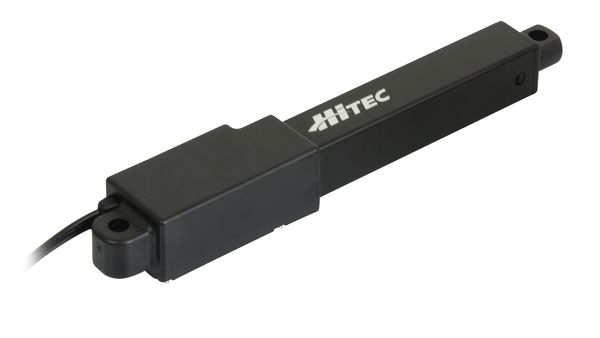

Linear Actuator HLS12-50210

Item No.: 1-02457
4 - 8,4 V | 50 mm | 210 : 1 | max. 121,6 N | max. 7,5 mm/s

Contents:
  • 1x HiTEC Linear actuator HLS12-50210
  • Mounting hardware
108,50 €
Price incl. VAT plus Shipping

In Stock.

Description Technical data Downloads
Description
The HiTEC linear actuator HLS12-50210 delivers precise linear motion in a compact footprint. A brushed motor with a metal core works with a robust metal gear train to ensure reliable power transmission and smooth starts. Programmability adds flexibility and supports clean tuning to the required motion profile. With a 50 mm (1.97 in) stroke and a 210:1 gear ratio, it provides controlled feeds at 7.5 mm/s (0.30 in/s) while delivering up to 121.11 N (27.24 lbf) of thrust. The wide operating range of 4.0–8.4 V simplifies power supply design in both mobile and stationary systems. This linear actuator combines dynamics with repeatable accuracy and is well suited to space-constrained builds that demand clear signals and precise travel.

For further technical advice, please contact our Technical Support team📧.
Technical data
Length (mm)
102,00
Width (mm)
15,00
Height (mm)
18,00
Weight (g)
40,00
Communication
PWM
output length (mm)
50
Transmission Ratio
210:1
Torque max. lifted at 6V (N)
78,45
Torque min. (N)
78,45
Torque max. (N)
121,60
Side load max. (N)
30,00
Speed min. (mm/s)
4,90
Speed max. (mm/s)
7,50
Voltage min. (V)
4,00
Voltage max. (V)
8,40
Motor type
Cored Metal Brush
Gearing
Metal
Housing
Engineering Plastic
Connector
Hitec 3 Pin (Uni)
Servo Type
Digital
