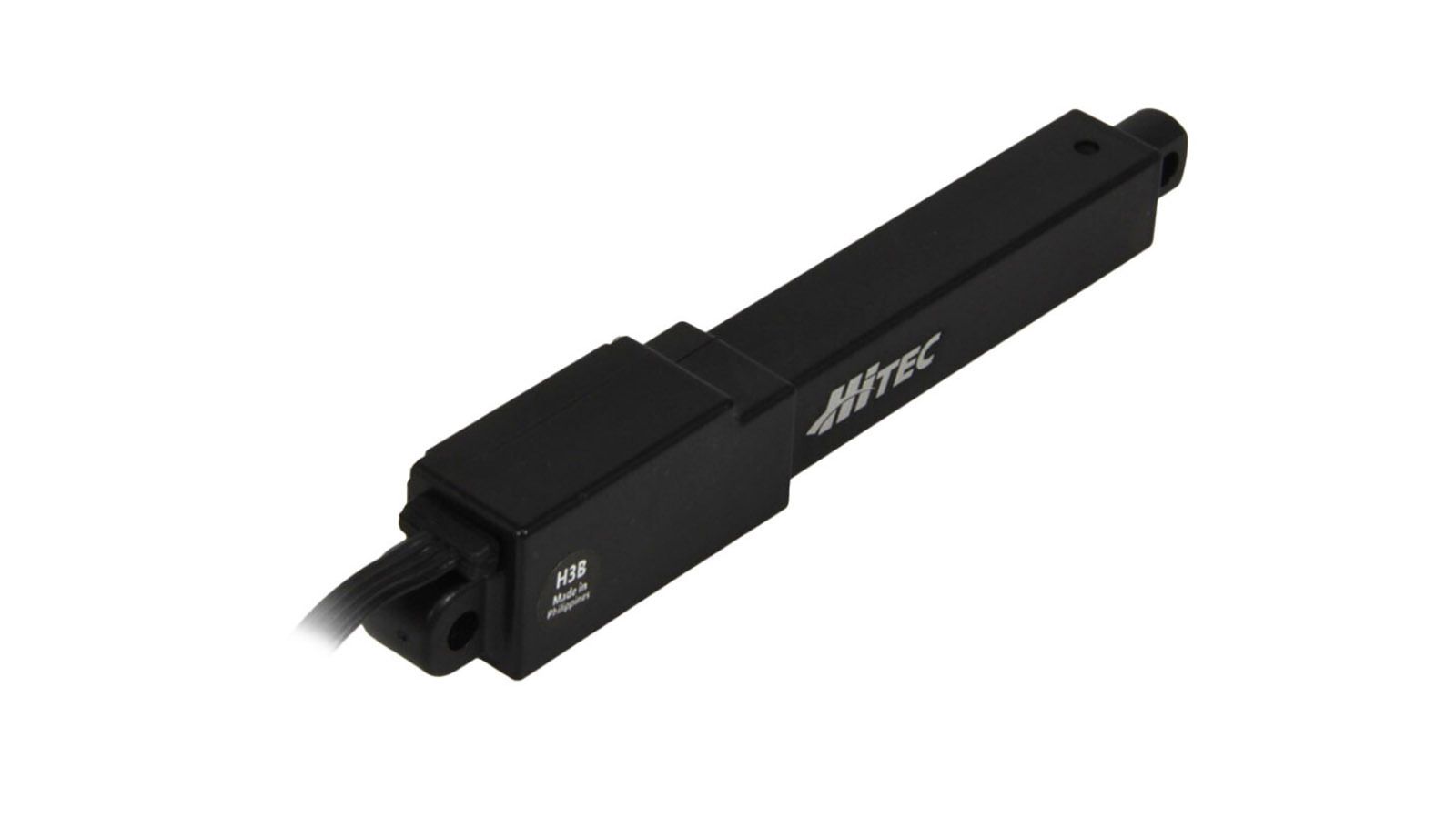

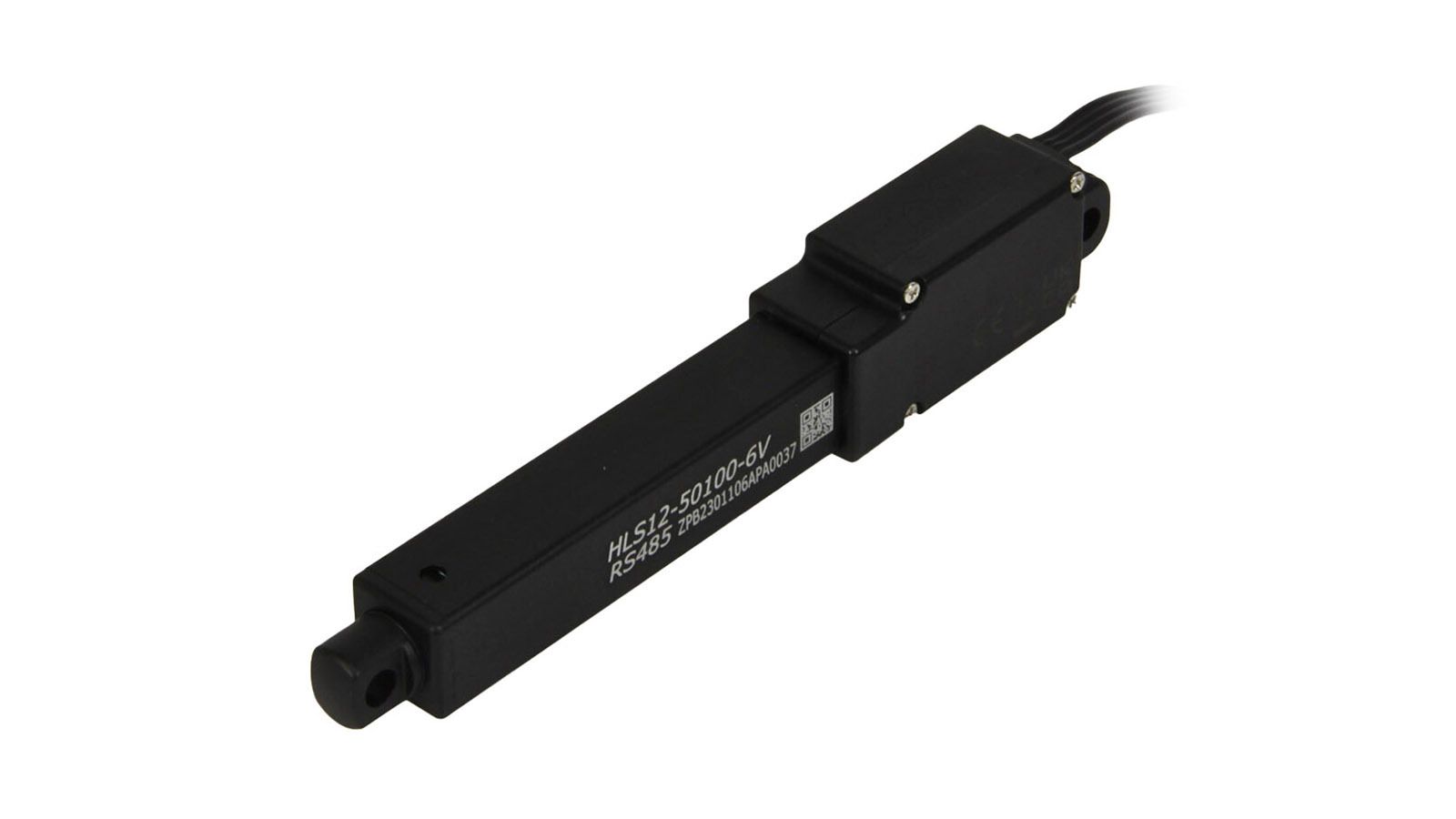

Linear Actuator HLS12-RS485-50100
Item No.: 1-03305
4 - 8,4 V | 50 mm | 100 : 1 | max. 60,8 N | max. 16,1 mm/s
Contents:
- 1x HiTEC Linear actuator HLS12-RS485-50100
- Mounting hardware
Description
The HiTEC linear actuator HLS12-RS485-50100 delivers controlled linear motion in a compact footprint and integrates cleanly via RS-485. A brushed motor drives a robust metal gear train, transmitting power reliably across the 50 mm (1.97 in) stroke. Programmability provides flexibility to match your motion profile. With a 100:1 gear ratio at 7.4 V, the drive reaches 16.1 mm/s (0.63 in/s) and delivers up to 60.8 N (13.67 lbf) of thrust.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.

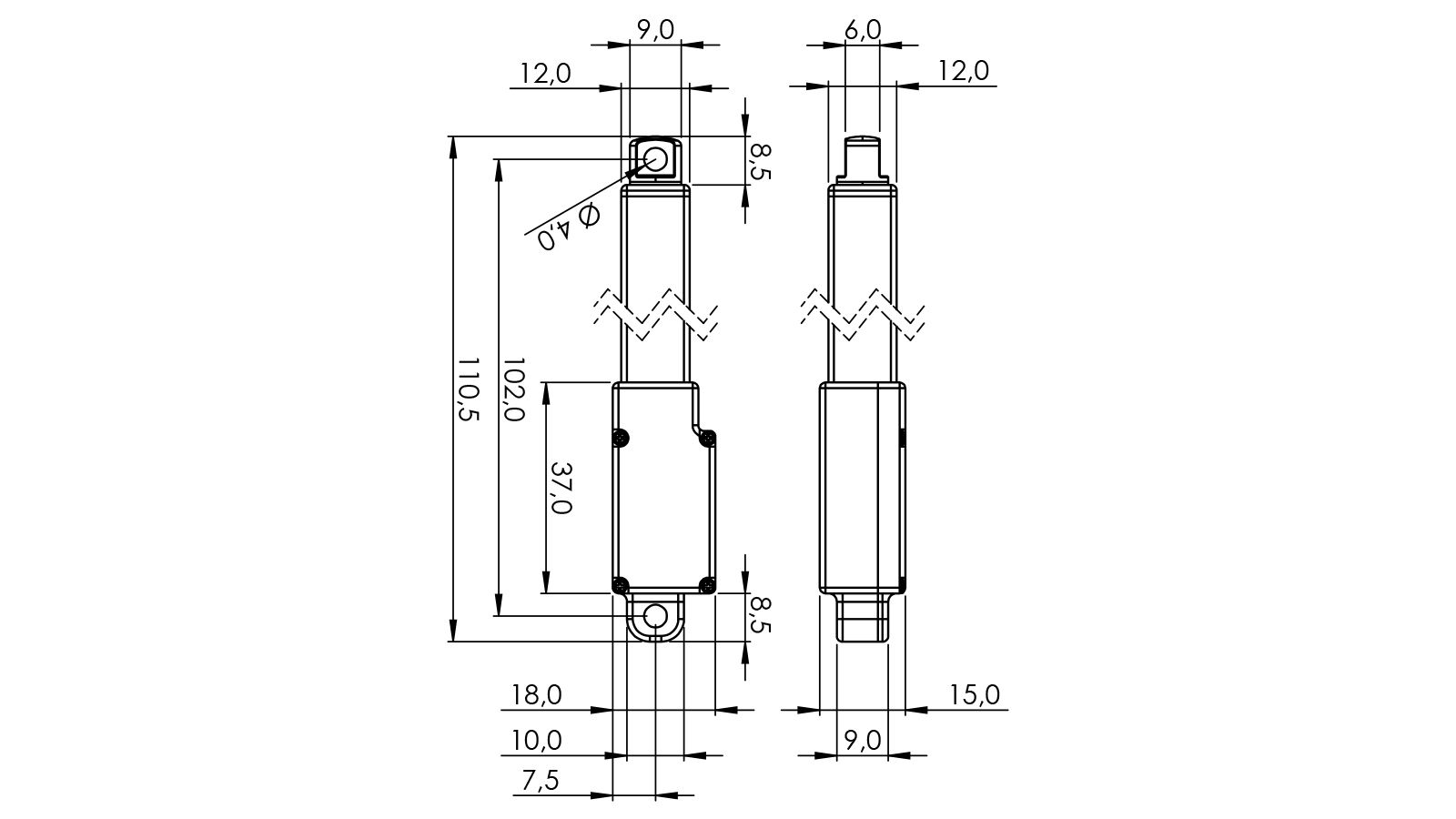

Technical data
Length (mm)
102,00
Width (mm)
15,00
Height (mm)
18,00
Weight (g)
40,00
Communication
RS485
output length (mm)
50
Transmission Ratio
100:1
Torque max. lifted at 6V (N)
41,19
Torque min. (N)
39,23
Torque max. (N)
60,80
Side load max. (N)
30,00
Speed min. (mm/s)
10,40
Speed max. (mm/s)
16,10
Voltage min. (V)
4,00
Voltage max. (V)
8,40
Motor type
Cored Metal Brush
Gearing
Metal
Housing
Engineering Plastic
Connector
Hitec 4 Pin (Uni)
Servo Type
Digital
