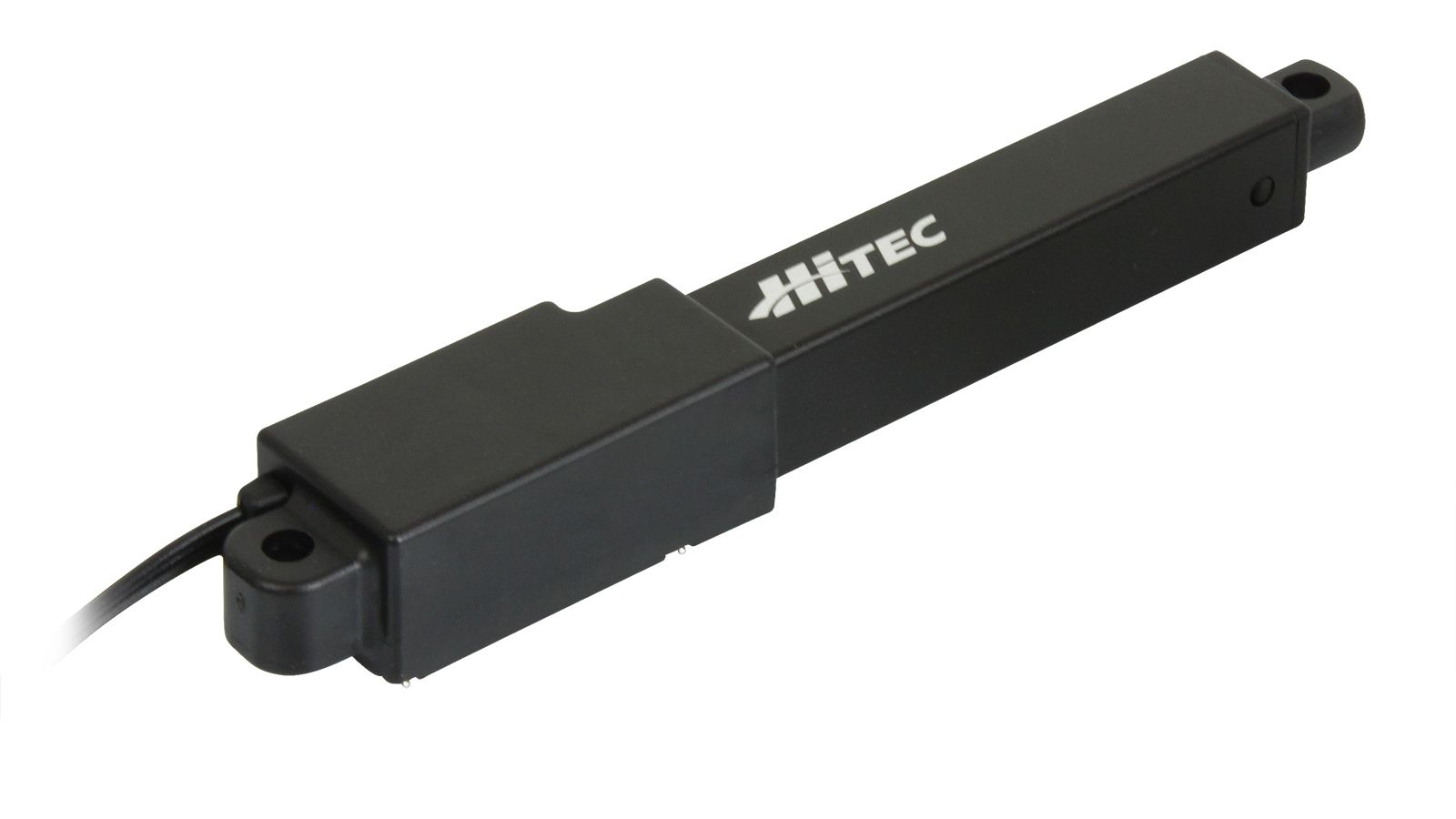

Linear Actuator HLS12-50100
Item No.: 1-03233
4 - 8,4 V | 50 mm | 100 : 1 | max. 60,8 N | max. 16,1 mm/s
Content:
- 1x Linear Actuator HLS12-50100-7.4V
- Mounting material HLS series
Description
With a 50mm stroke and a 100:1 gear ratio, the HLS12-50100 is ideal for short-stroke applications requiring higher travel speed and more power. Hitec linear actuators are controlled via a conventional PWM servo signal and offer optimized motion control for precise and powerful positioning. Whether your application requires a low-profile form factor or long strokes, we have the right actuator for your needs.
Our linear actuators are popular in numerous applications, including robotics, animatronics, and industrial mechanical applications.

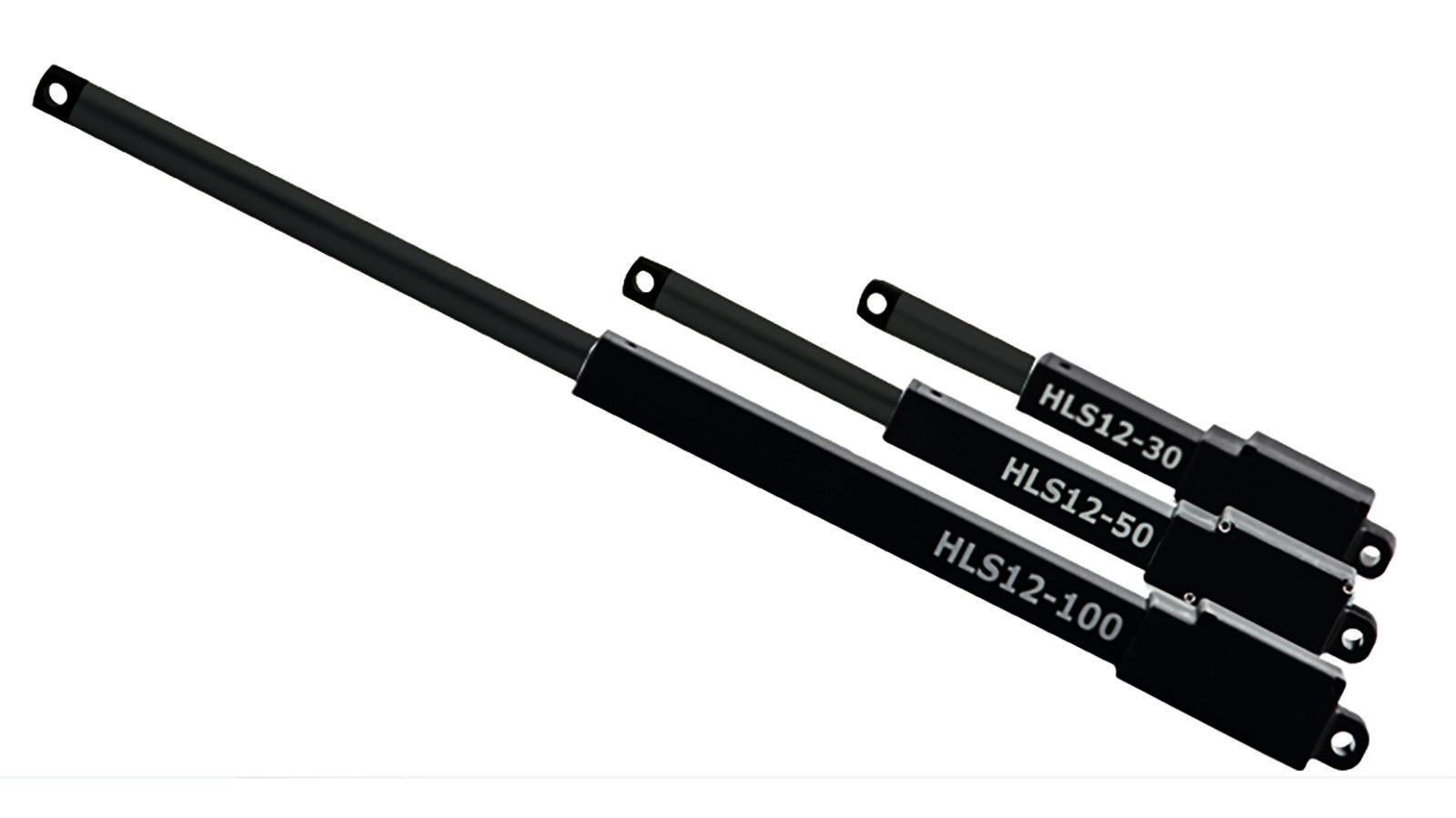

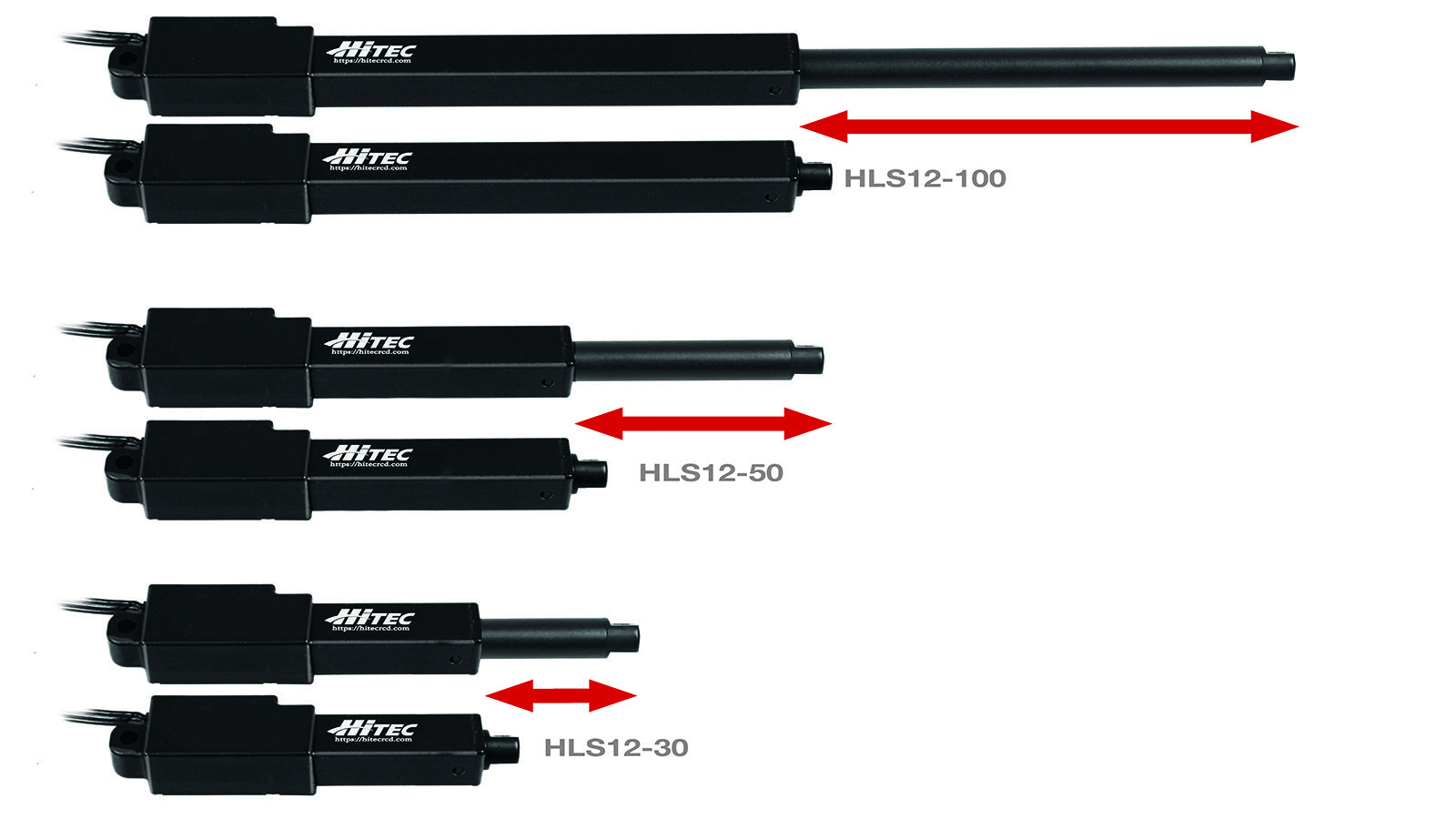

Programmable stroke and speed settings, off-state position stability, and various mounting options provide additional functionality and flexibility. In addition, Hitec linear actuators offer a full displacement range from 1050 to 1950 µs. This feature enables full compatibility with all radio devices, eliminating the need to program extended rates for full motion. The HLS12-3050 offers increased speed, while the high gear ratios of our HLS12-30210 and HLS12-30380 versions provide additional power. Applications requiring a larger displacement range are better suited to our HLS12-50XX and HLS12-100XX series linear actuators.
Our linear actuators are popular in numerous applications, including robotics, animatronics, and industrial mechanical applications.
Programmable stroke and speed settings, off-state position stability, and various mounting options provide additional functionality and flexibility. In addition, Hitec linear actuators offer a full displacement range from 1050 to 1950 µs. This feature enables full compatibility with all radio devices, eliminating the need to program extended rates for full motion. The HLS12-3050 offers increased speed, while the high gear ratios of our HLS12-30210 and HLS12-30380 versions provide additional power. Applications requiring a larger displacement range are better suited to our HLS12-50XX and HLS12-100XX series linear actuators.

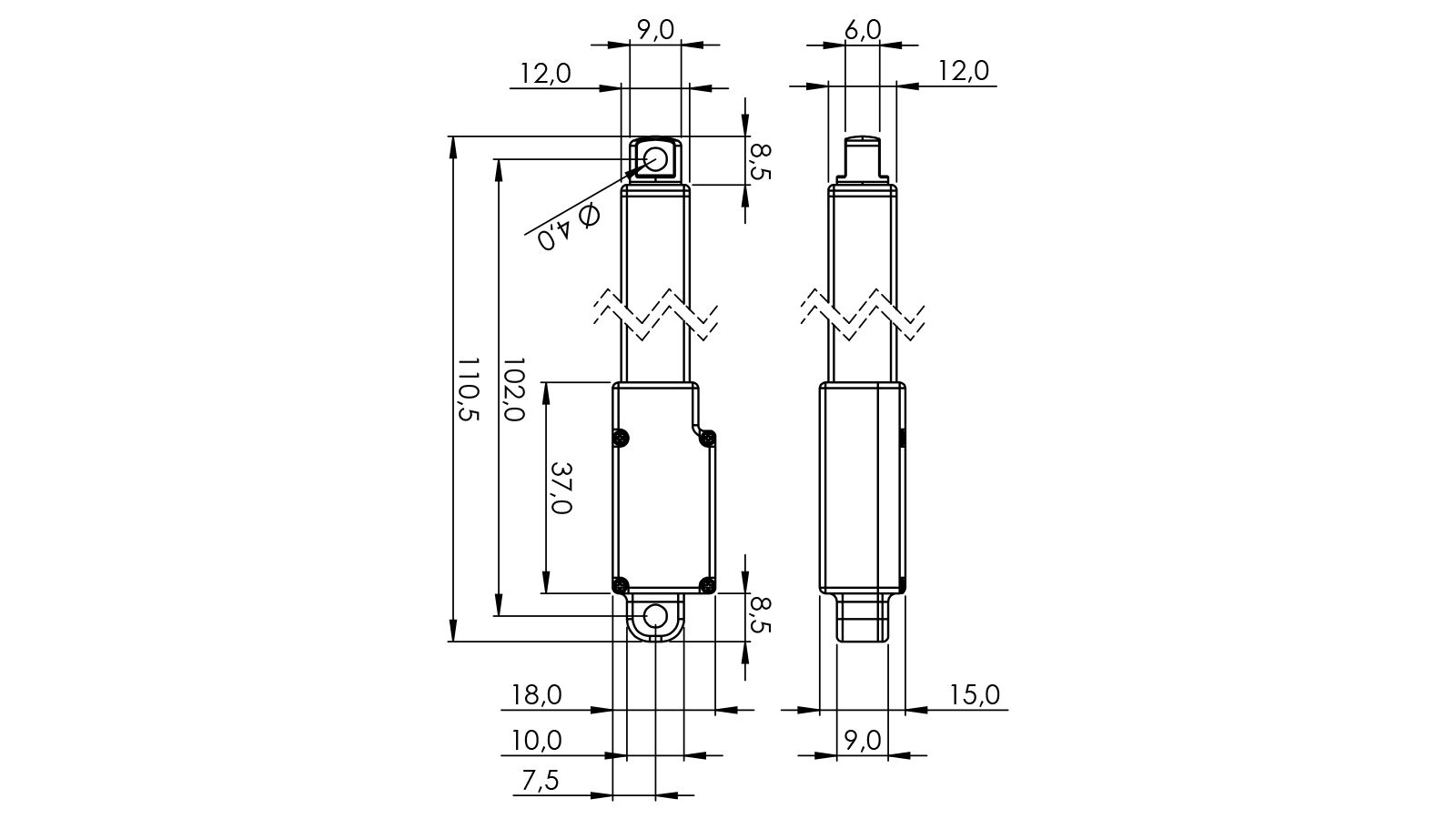

Technical data
Length (mm)
102,00
Width (mm)
15,00
Height (mm)
18,00
Weight (g)
40,00
Communication
PWM
output length (mm)
50
Transmission Ratio
100:1
Torque max. lifted at 6V (N)
41,19
Torque min. (N)
39,23
Torque max. (N)
60,80
Side load max. (N)
30,00
Speed min. (mm/s)
10,40
Speed max. (mm/s)
16,10
Voltage min. (V)
4,00
Voltage max. (V)
8,40
Motor type
Cored Metal Brush
Gearing
Metal
Housing
Engineering Plastic
Connector
Hitec 3 Pin (Uni)
Servo Type
Digital
