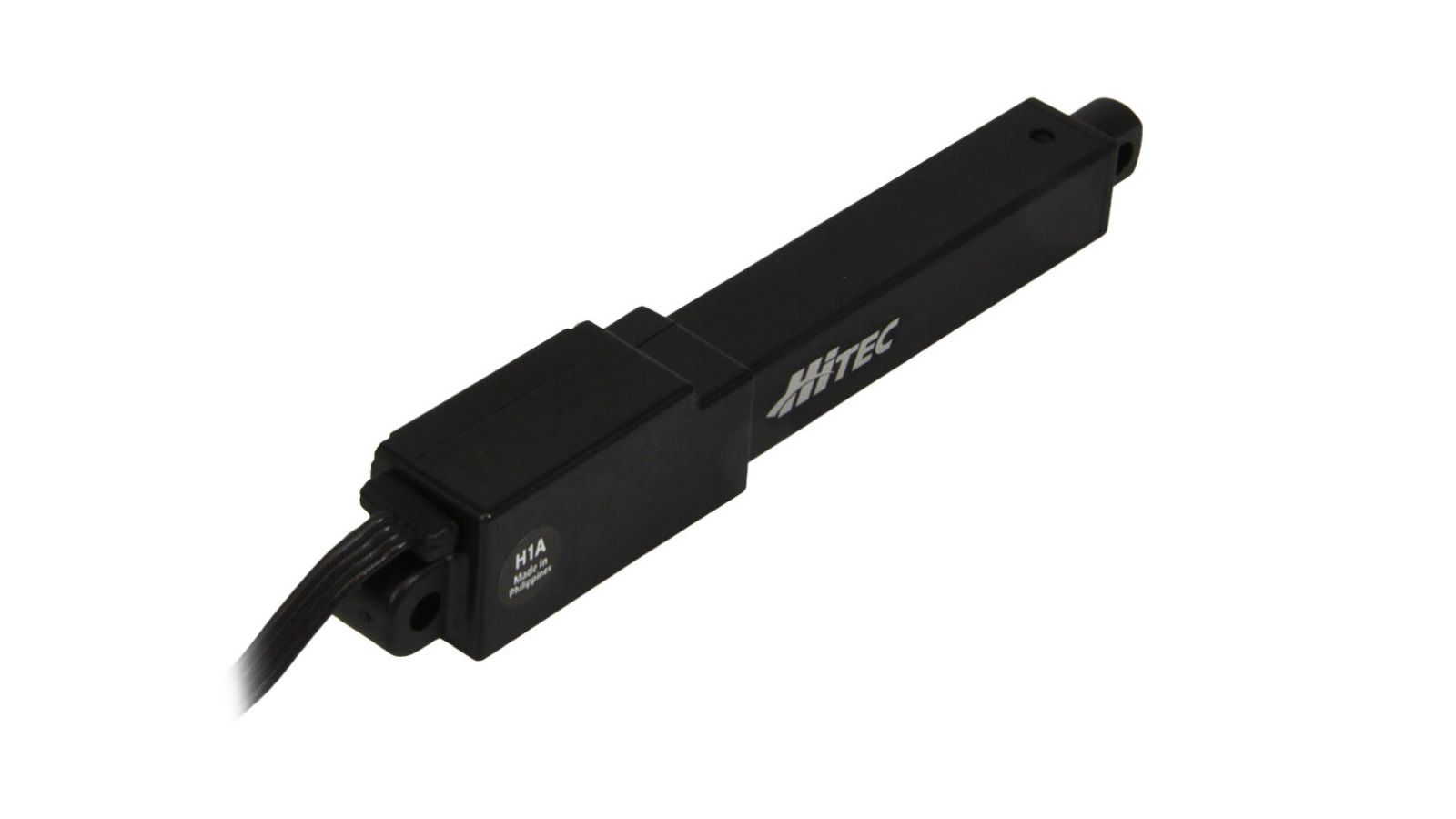

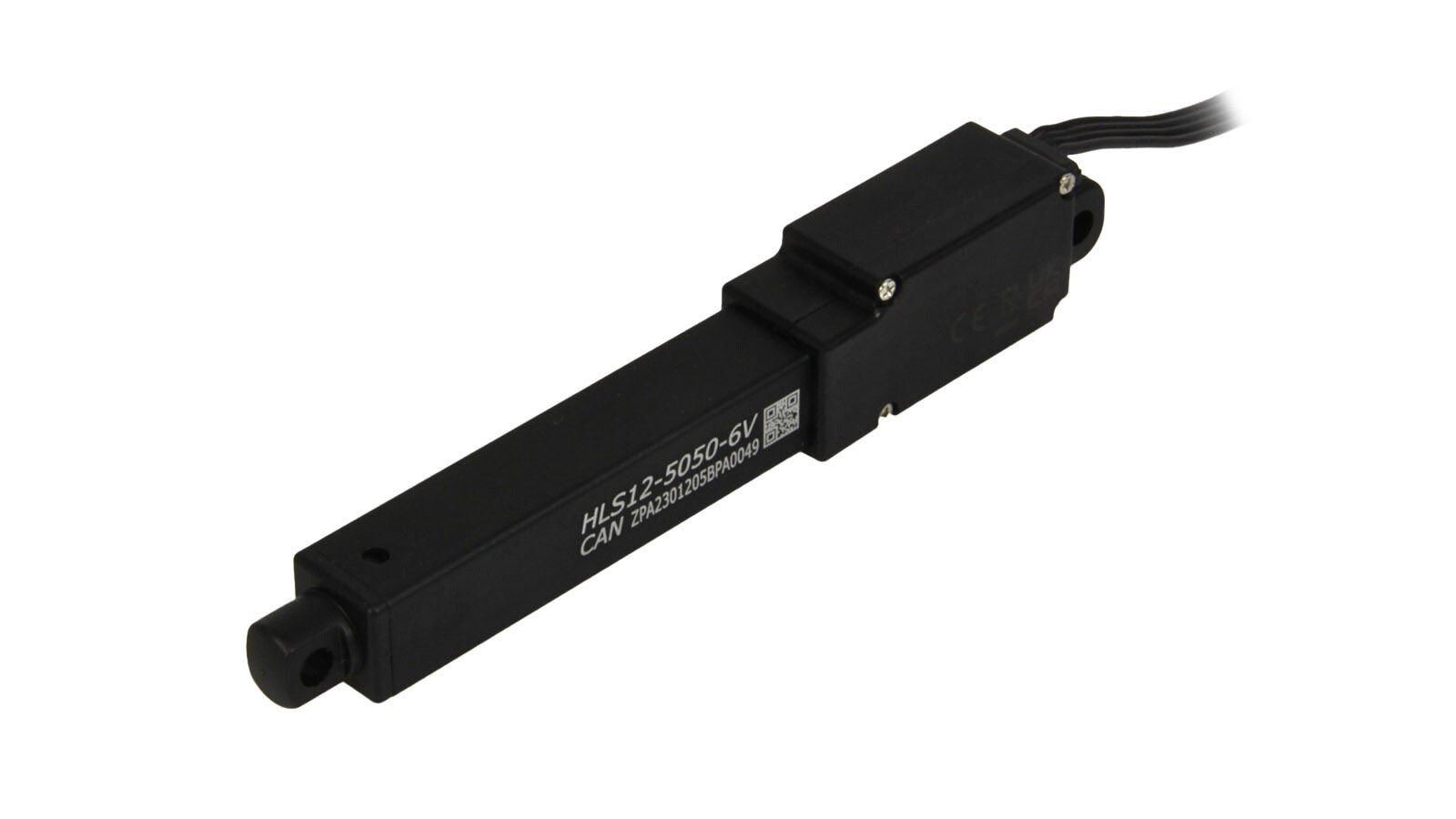

Linear Actuator HLS12-CAN-5050
Item No.: 1-03289
4 - 8,4 V | 50 mm | 50 : 1 | max. 30,4 N | max. 30,9 mm/s
Contents:
- 1x HiTEC Linear actuator HLS12-CAN-5050
- Mounting hardware
Description
The HiTEC linear actuator HLS12-CAN-5050 combines a compact footprint with high speed and direct bus connectivity via CAN 2.0A and CAN 2.0B. A brushed motor with a metal core meshes with a wear-resistant metal gear train, transmitting power precisely across the 50 mm (1.97 in) stroke. With a 50:1 gear ratio it delivers fast feeds at 30.9 mm/s (1.22 in/s), while up to 30.40 N (6.83 lbf) of thrust ensures defined positioning for smaller loads. Programmability enables application-specific profiles without adding control complexity. The 4.0–8.4 V operating range simplifies power planning and supports consistent operation. The result is a network-ready, space-saving linear actuator that brings short cycle times, repeatable positioning, and smooth running to demanding applications.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.

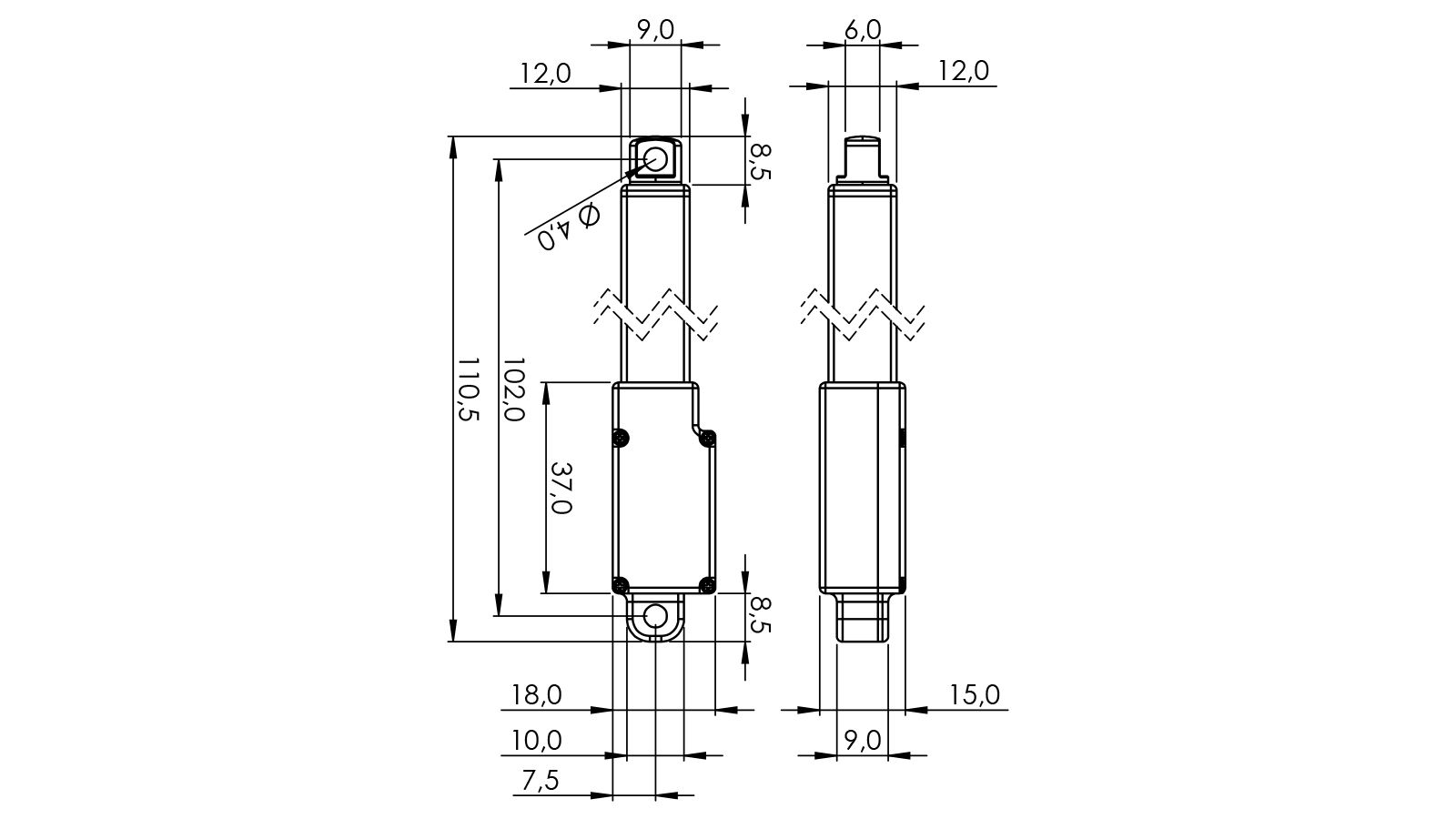

Technical data
Length (mm)
102,00
Width (mm)
15,00
Height (mm)
18,00
Weight (g)
40,00
Communication
CAN 2.0A/B
output length (mm)
50
Transmission Ratio
50:1
Torque max. lifted at 6V (N)
21,57
Torque min. (N)
19,61
Torque max. (N)
30,40
Side load max. (N)
30,00
Speed min. (mm/s)
20,00
Speed max. (mm/s)
30,90
Voltage min. (V)
4,00
Voltage max. (V)
8,40
Motor type
Cored Metal Brush
Gearing
Metal
Housing
Engineering Plastic
Connector
Hitec 4 Pin (Uni)
Servo Type
Digital
