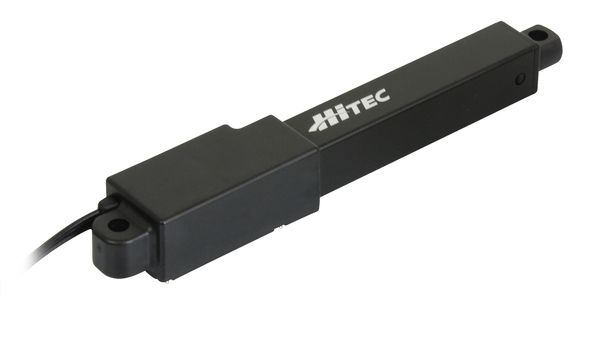

Linear Actuator HLS12-5050

Item No.: 1-02456
4 - 8,4 V | 50 mm | 50 : 1 | max. 30,4 N | max. 30,9 mm/s

Contents:
  • 1x HiTEC Linear actuator HLS12-5050
  • Mounting hardware
108,50 €
Price incl. VAT plus Shipping

In Stock.

Description Technical data Downloads
Description
The HiTEC linear actuator HLS12-5050 combines a compact footprint with high speed and precise motion. A brushed motor with a metal core works with a durable metal gear train to transmit force cleanly across the stroke. The PWM interface enables direct, proven control, while programmability adds flexibility for varied applications. With a 50 mm (1.97 in) stroke and a 50:1 gear ratio, it delivers dynamic feeds at 30.9 mm/s (1.22 in/s) and provides up to 30.28 N (6.81 lbf) of thrust. The 4.0–8.4 V operating range simplifies power planning. This linear actuator delivers fast cycle times, repeatable positioning, and smooth starts in a space-saving form factor, ideal for designs that demand clear signaling, precise travel, and reliable force transmission.

For further technical advice, please contact our Technical Support team📧.
Technical data
Length (mm)
102,00
Width (mm)
15,00
Height (mm)
18,00
Weight (g)
40,00
Communication
PWM
output length (mm)
50
Transmission Ratio
50:1
Torque max. lifted at 6V (N)
21,57
Torque min. (N)
19,61
Torque max. (N)
30,40
Side load max. (N)
30,00
Speed min. (mm/s)
20,00
Speed max. (mm/s)
30,90
Voltage min. (V)
4,00
Voltage max. (V)
8,40
Motor type
Cored Metal Brush
Gearing
Metal
Housing
Engineering Plastic
Connector
Hitec 3 Pin (Uni)
Servo Type
Digital
