Linear Actuator HLS12-CAN-50380
Item No.: 1-03298
4 - 8,4 V | 50 mm | 380 : 1 | max. 217,71 N | max. 4,1 mm/s
Contents:
- 1x HiTEC Linear actuator HLS12-CAN-50380
- Mounting hardware
Description
The HiTEC linear actuator HLS12-CAN-50380 combines a compact footprint with clear CAN 2.0A/B communication and high thrust. A brushed motor with a metal core drives a robust metal gear train, transmitting power precisely across the 50 mm (1.97 in) stroke. The 380:1 gear ratio delivers finely metered feeds at 4.1 mm/s (0.16 in/s), while up to 217.71 N (48.95 lbf) of thrust enables confident positioning under load. Programmability adds flexibility, and the 4.0–8.4 V operating range simplifies power planning. The result is a space-saving linear actuator that brings repeatable positioning, controlled dynamics, and reliable network connectivity together for precise travel.
For further technical advice, please contact our Technical Support team?.
For further technical advice, please contact our Technical Support team?.

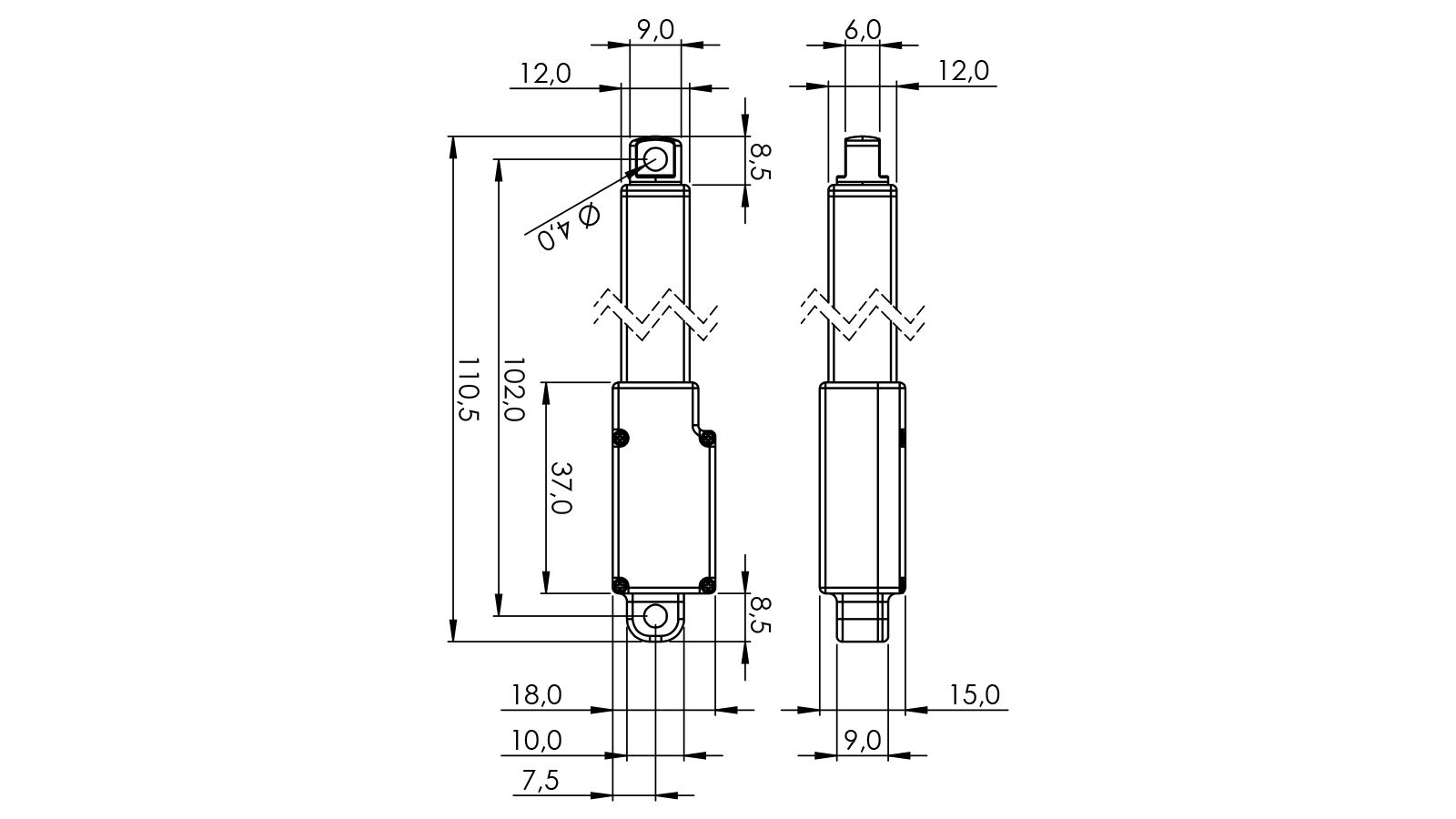

Technical data
Length (mm)
102,00
Width (mm)
15,00
Height (mm)
18,00
Weight (g)
40,00
Communication
CAN 2.0A/B
output length (mm)
50
Transmission Ratio
380:1
Torque max. lifted at 6V (N)
117,68
Torque min. (N)
141,22
Torque max. (N)
217,71
Side load max. (N)
30,00
Speed min. (mm/s)
2,60
Speed max. (mm/s)
4,10
Voltage min. (V)
4,00
Voltage max. (V)
8,40
Motor type
Cored Metal Brush
Gearing
Metal
Housing
Engineering Plastic
Connector
Hitec 4 Pin (Uni)
Servo Type
Digital
