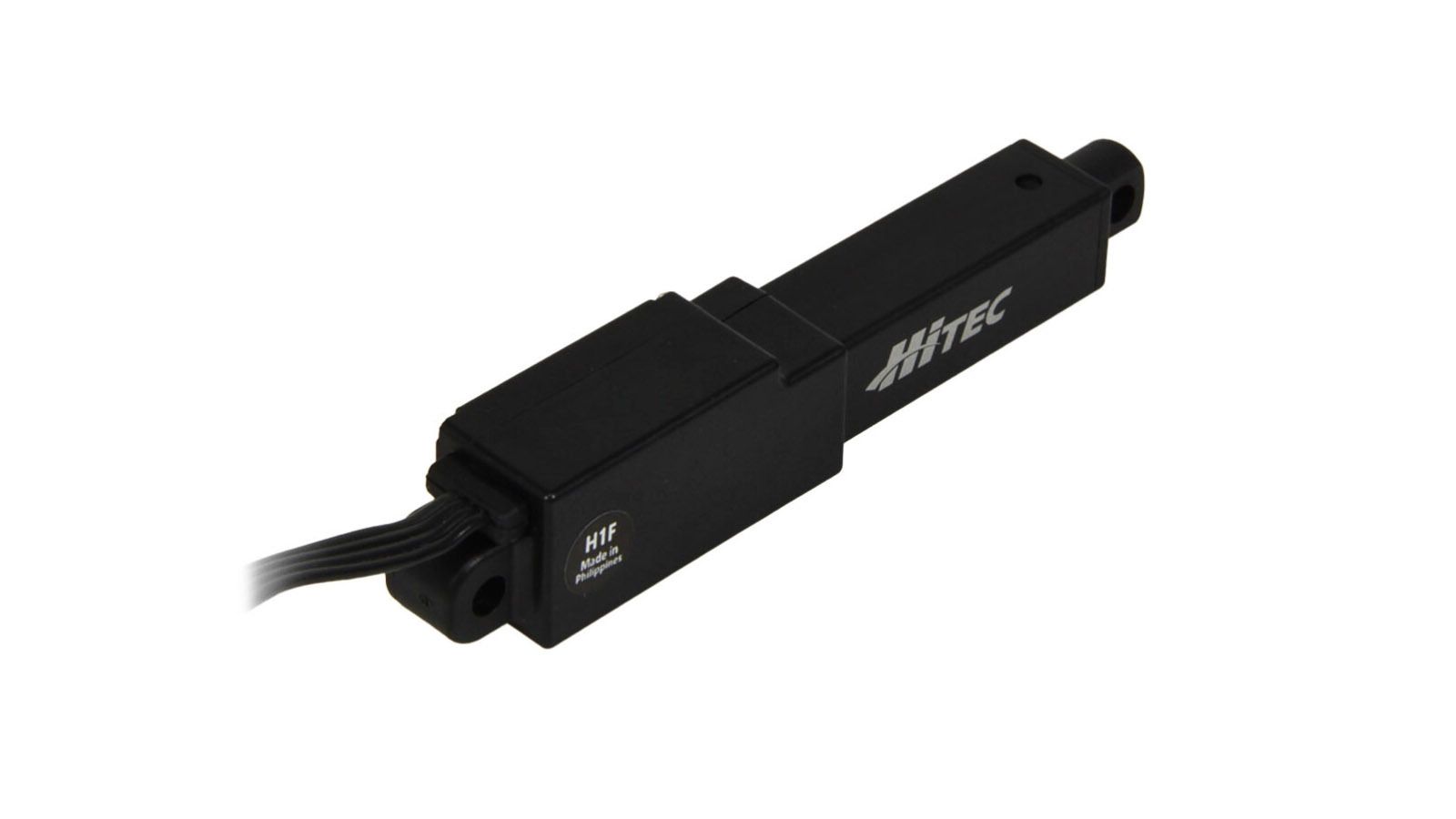

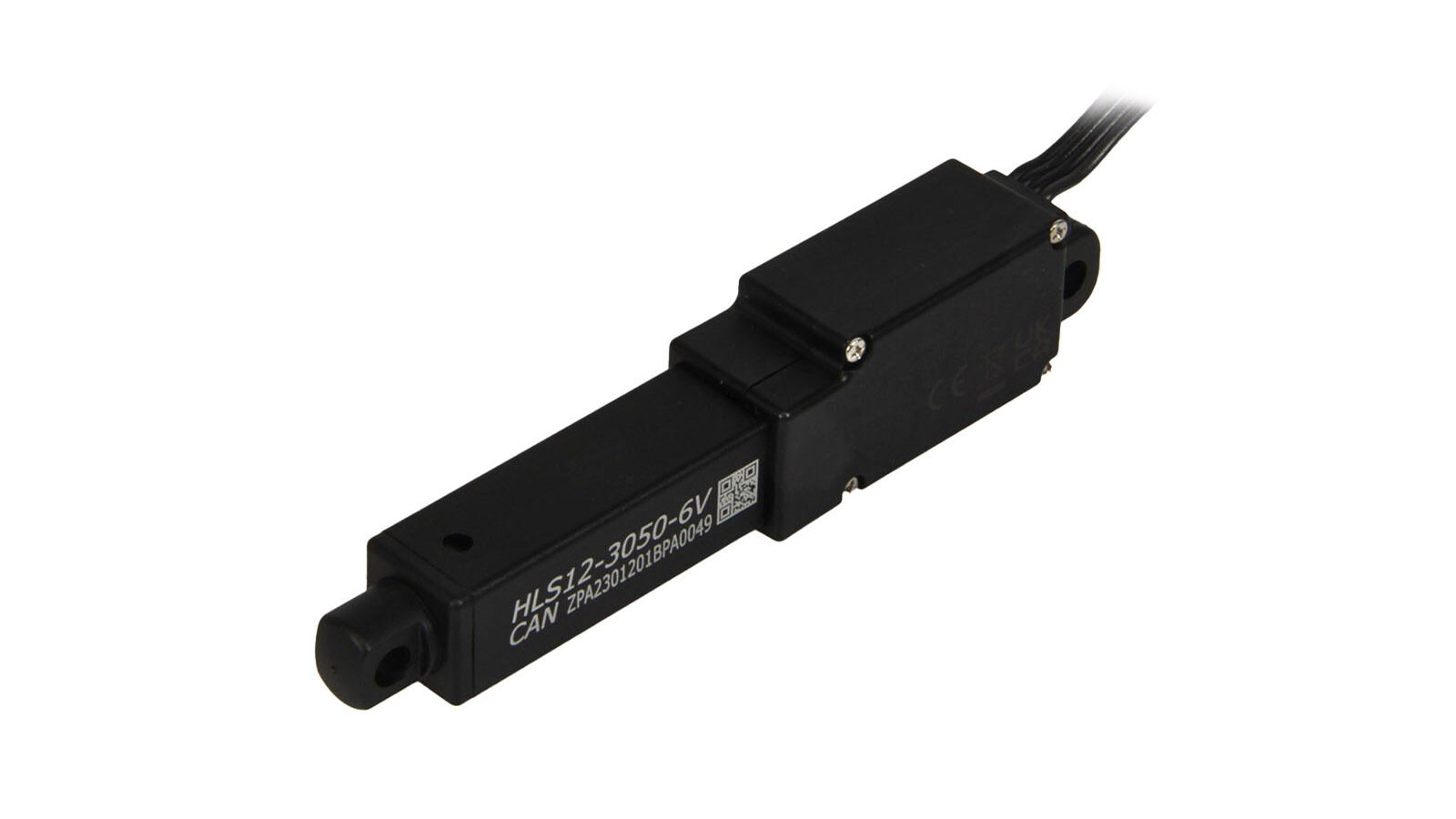

Linear Actuator HLS12-CAN-3050
Item No.: 1-03288
4 - 8,4 V | 30 mm | 50 : 1 | max. 30,4 N | max. 30,9 mm/s
Contents:
- 1x HiTEC Linear actuator HLS12-CAN-3050
- Mounting hardware
Description
With 30mm of travel and a 50:1 gear ratio, the HLS12-3050 is ideal for short stroke applications requiring the fastest transit speeds.
Controlled using a traditional DroneCAN and CAN Bus servo signal, Hitec linear actuators provide optimized motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility.
Controlled using a traditional DroneCAN and CAN Bus servo signal, Hitec linear actuators provide optimized motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility.

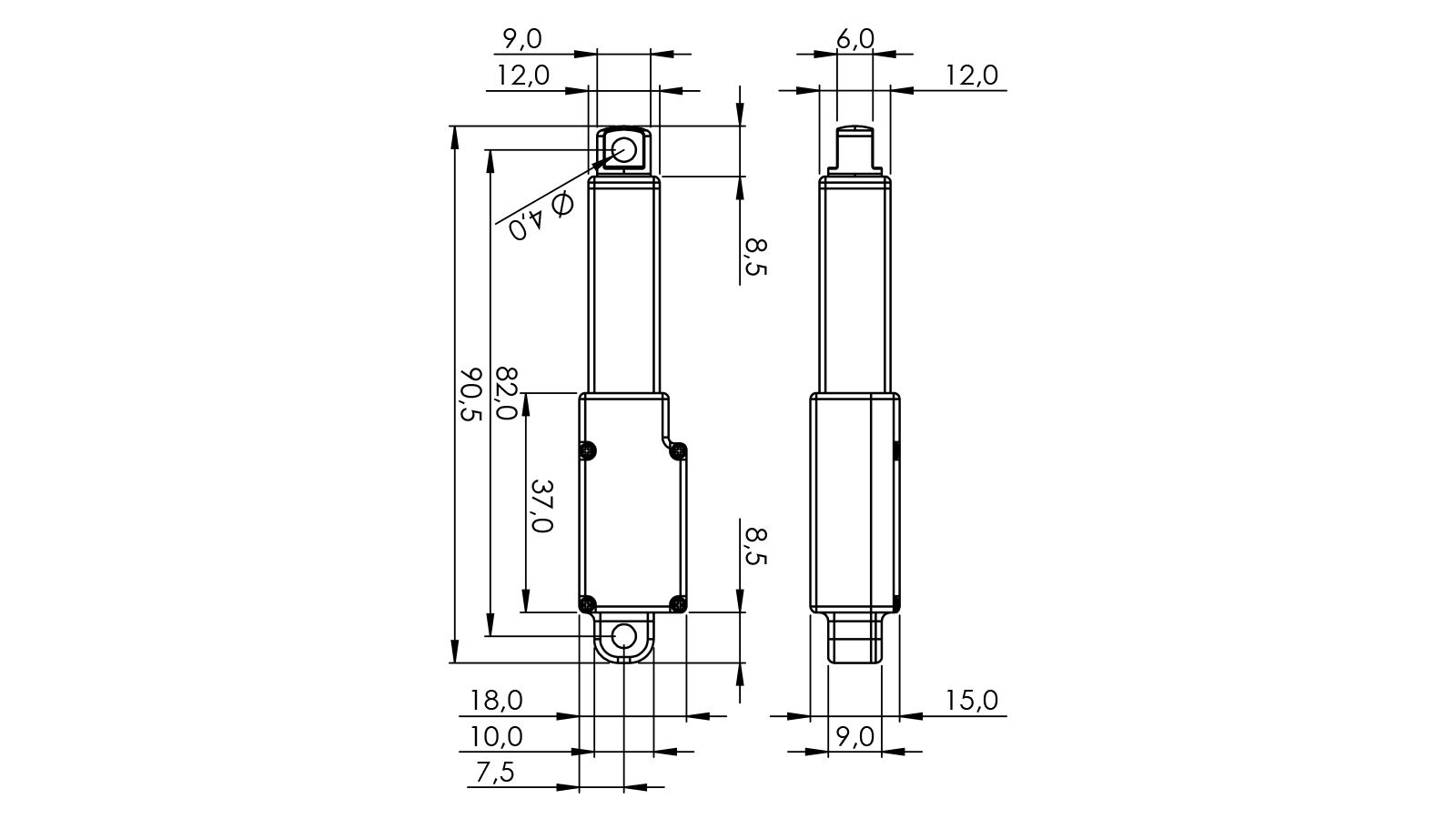

Technical data
Length (mm)
82,00
Width (mm)
15,00
Height (mm)
18,00
Weight (g)
34,00
Communication
CAN 2.0A/B
output length (mm)
30
Transmission Ratio
50:1
Torque max. lifted at 6V (N)
21,57
Torque min. (N)
19,61
Torque max. (N)
30,40
Side load max. (N)
40,00
Speed min. (mm/s)
20,00
Speed max. (mm/s)
30,90
Voltage min. (V)
4,00
Voltage max. (V)
8,40
Motor type
Cored Metal Brush
Gearing
Metal
Housing
Engineering Plastic
Connector
Hitec 4 Pin (Uni)
Servo Type
Digital
