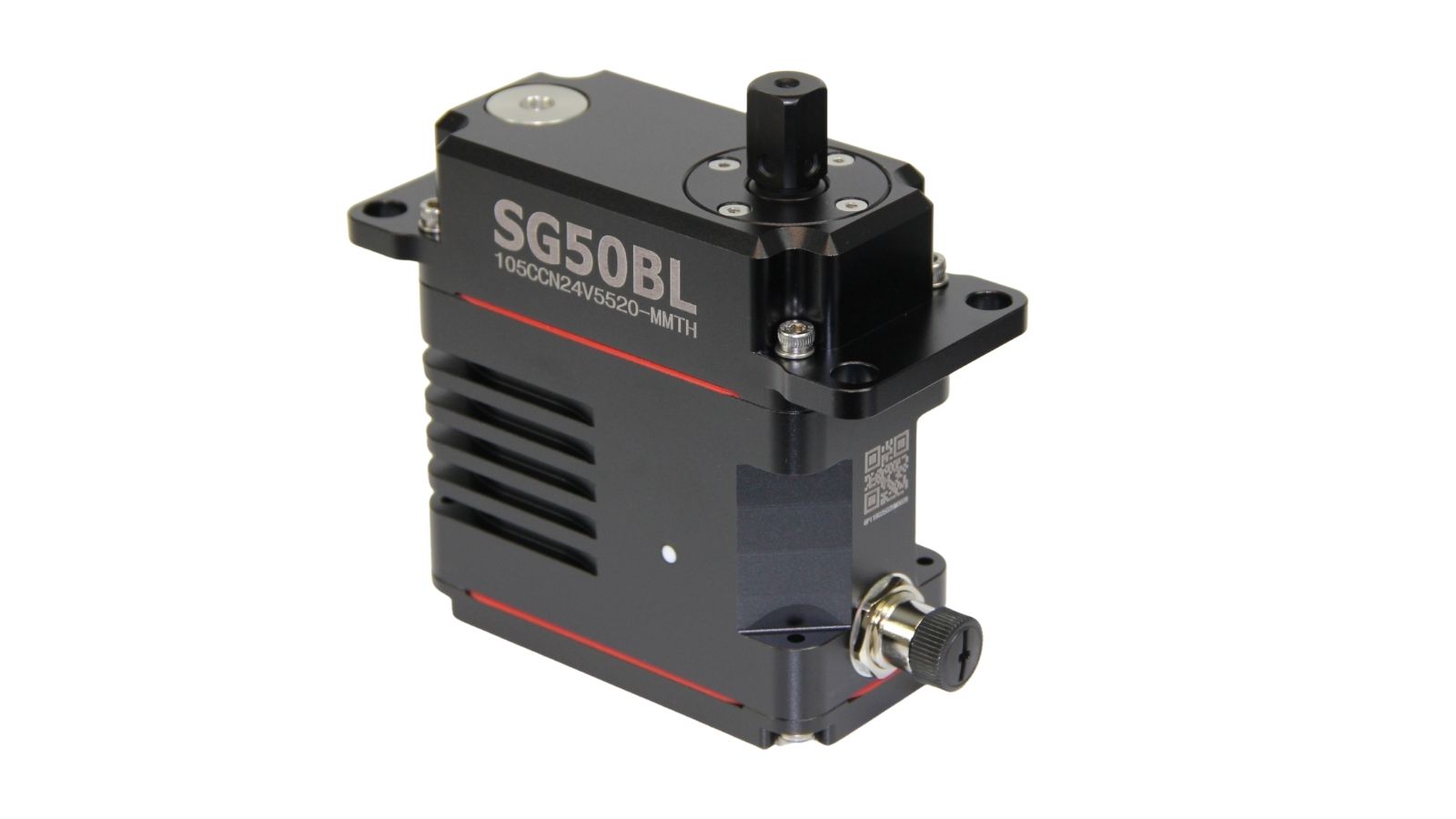

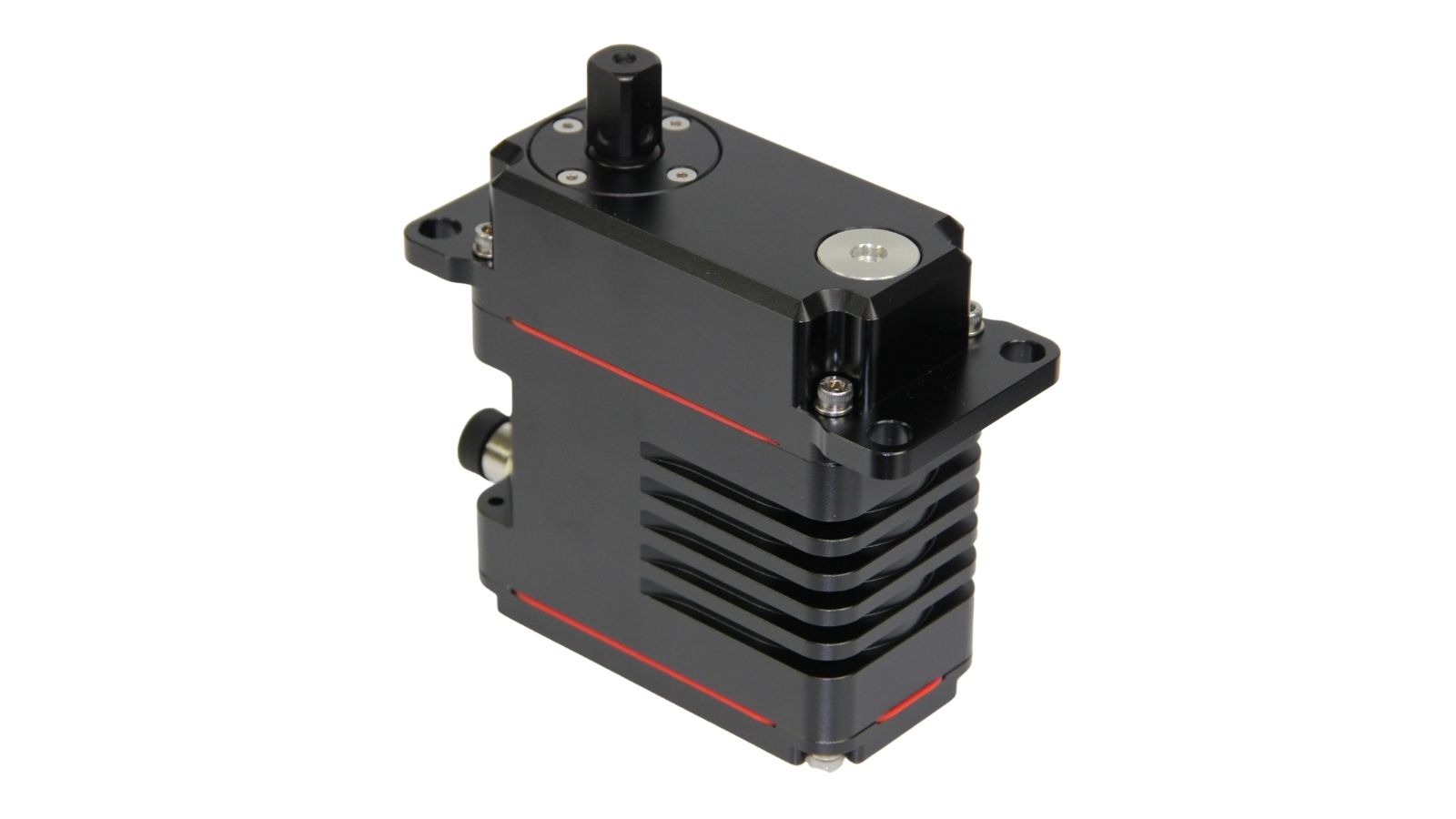

Servo SG50BL-CAN-24V (Circular)
Item No.: 1-02412
18-32 V | max. 5.099,45 N/cm | max. 0,5 Sek/60° | IP68
Contents:
- 1x HiTEC Servo SG50BL-CAN-24V (Circular)
- 1x Servo arm I-MOS12 (12x12)
- Mounting hardware
Description
Built for durability and exceptional torque: The HiTEC SG50BL-CAN-24V servo handles heavy-duty positioning tasks with confidence. Its BLDC drive and magnetic encoder provide precise position feedback and high repeatability. With multi-turn capability and multiple rotations, the actuator is ideally suited for force-intensive adjustments requiring long travel distances combined with high load precision.
The hardened steel gear train delivers an impressive 5099 N/cm of torque. IP68 protection ensures long-term resistance to dust and water, making it ideal for demanding industrial and outdoor applications.
Using CAN 2.0A/B or DroneCAN, the actuator integrates seamlessly into modern control systems, enabling efficient monitoring and parameter configuration. The operating voltage range of 18.00–32.00 V offers additional flexibility within 24-V environments. The circular M12 connector ensures secure and service-friendly wiring.
HiTEC combines precise sensing, robust mechanics, and powerful communication in a servo motor that delivers maximum torque, long service life, and straightforward integration.
For further technical advice, please contact our Technical Support team📧.
The hardened steel gear train delivers an impressive 5099 N/cm of torque. IP68 protection ensures long-term resistance to dust and water, making it ideal for demanding industrial and outdoor applications.
Using CAN 2.0A/B or DroneCAN, the actuator integrates seamlessly into modern control systems, enabling efficient monitoring and parameter configuration. The operating voltage range of 18.00–32.00 V offers additional flexibility within 24-V environments. The circular M12 connector ensures secure and service-friendly wiring.
HiTEC combines precise sensing, robust mechanics, and powerful communication in a servo motor that delivers maximum torque, long service life, and straightforward integration.
For further technical advice, please contact our Technical Support team📧.
Technical data

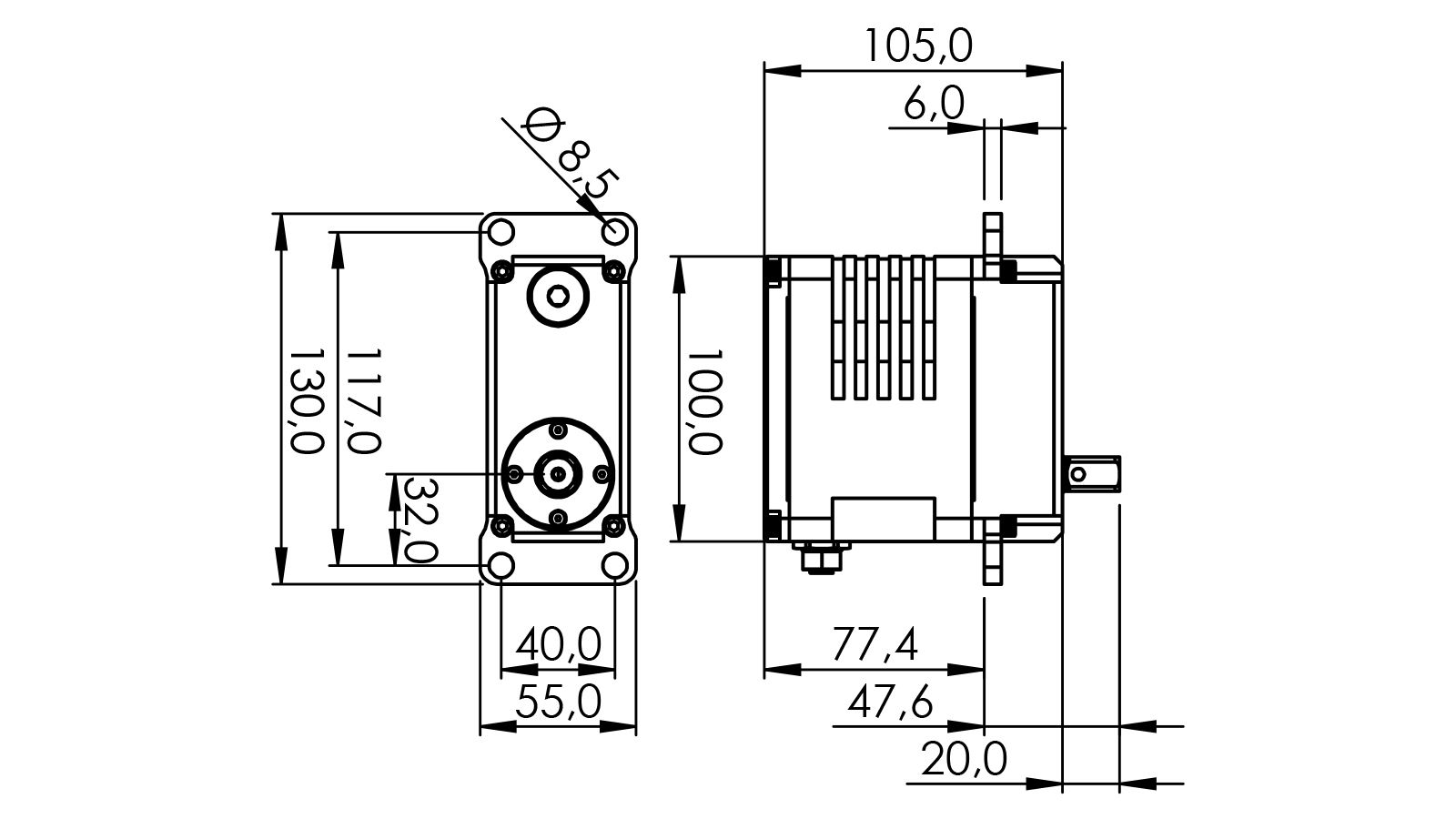

Width (mm)
50,00
Motor Type
BLDC
Encoder
Magnetic Encoder
IP Protection Class
IP68
Communication
CAN 2.0A/B / DroneCAN
Servo Type
Digital
Voltage max. (V)
32,00
Torque max. (kg/cm)
520,00
Setting Speed max. (sec/60 degrees)
0,50
Hitec Servo Series
SG-Series
Weight (gramm)
1450,00
Horn Gear Spline
Square (12mm x 12mm)
Length (mm)
100,00
Height (mm)
105,00
Voltage min. (V)
18,00
Torque min. (kg/cm)
520,00
Setting Speed min. (sec/60 degrees)
0,50
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
300°
Multi Turn
± 32760 Turns
Contniuos Rotation
No
Current Draw at idle (mA)
45
Current Draw max. (mA)
10000
Torque min. (N/cm)
3824,59
Torque max. (N/cm)
5099,45
Housing
Aluminum Alloy
Connector
Circular M12
Gearing (characteristic)
Hardened Steel
