Servo SG33BL-T-CAN-24V (Circular Non Clutch)
Item No.: 1-02465
18-32 V | max. 1441,57 N/cm | max. 0,185 Sek/60° | IP68
Contents:
- 1x HiTEC Servo SG33BL-T-CAN-24V (Circular)
- 1x Servo arm I-MOS (6.5x6.5)
- Mounting hardware
Description
With CAN 2.0A/B and DroneCAN control, the HiTEC SG33BL-T-CAN-24V brings fast, precise motion to tightly integrated systems. This digital servo motor pairs a brushless DC (BLDC) drive with a magnetic encoder for accurate position feedback and repeatable performance. A hardened steel gear train delivers robust output across a wide torque window of 1441 N·cm, while a swift 0.19 s/60° transit time keeps cycles short. Rated IP68, the actuator is dust-tight and waterproof, making it a dependable choice for demanding industrial environments. The circular M12 connector supports secure, field-ready wiring and fast serviceability.

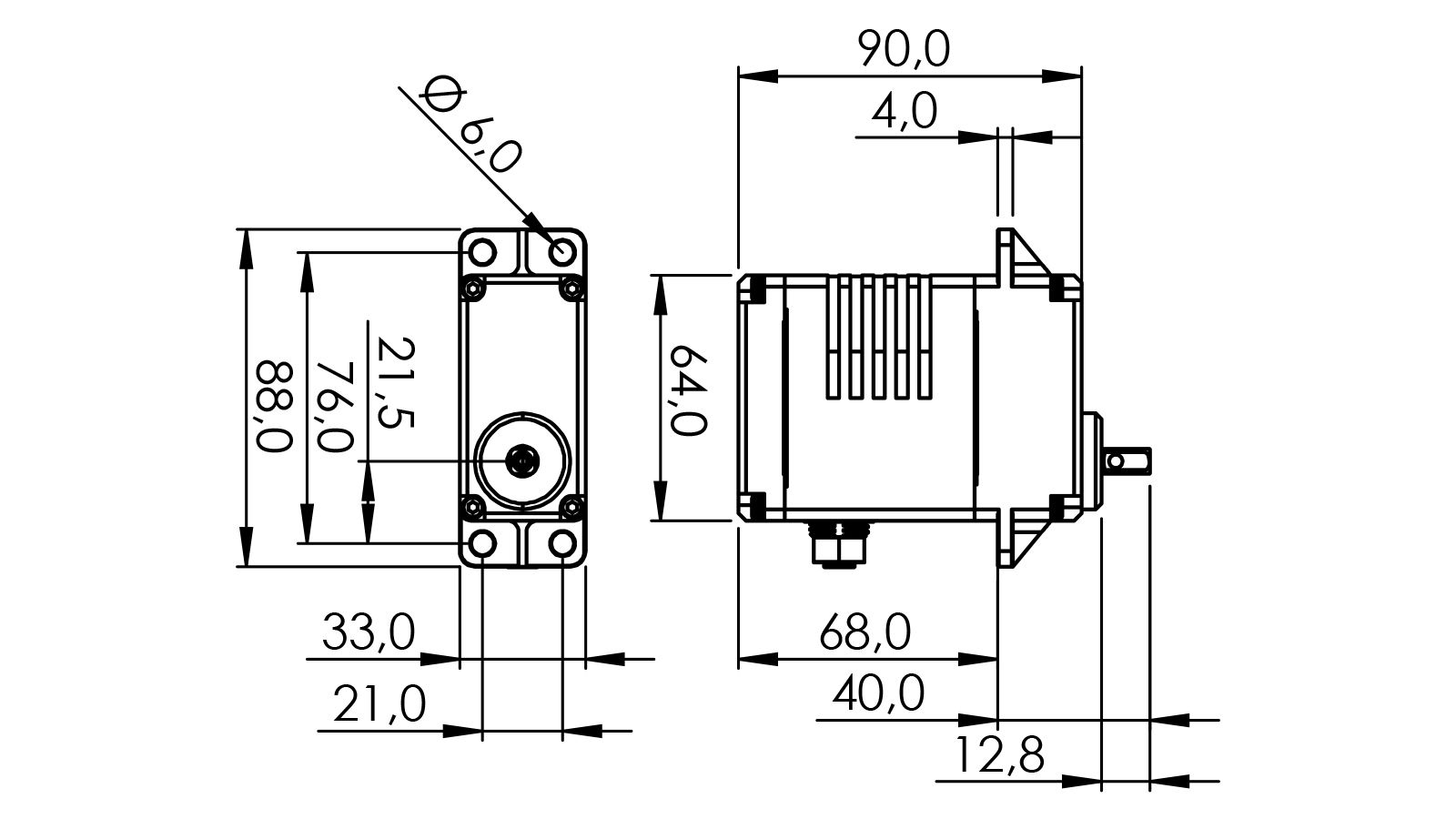

Compact dimensions simplify enclosure design and retrofit work: Dimensions (L × W × H): 64.00 × 33.00 × 90.00 mm (2.52 × 1.30 × 3.54 in). Seamless CAN/DroneCAN networking streamlines commissioning and diagnostics, while precise feedback and durable mechanics ensure consistent results over long duty cycles—ideal wherever high force and responsive positioning must go hand in hand.
For further technical advice, please contact our Technical Support team📧.
Compact dimensions simplify enclosure design and retrofit work: Dimensions (L × W × H): 64.00 × 33.00 × 90.00 mm (2.52 × 1.30 × 3.54 in). Seamless CAN/DroneCAN networking streamlines commissioning and diagnostics, while precise feedback and durable mechanics ensure consistent results over long duty cycles—ideal wherever high force and responsive positioning must go hand in hand.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
33,00
Motor Type
BLDC
Encoder
Magnetic Encoder
IP Protection Class
IP68
Communication
CAN 2.0A/B / DroneCAN
Servo Type
Digital
Voltage max. (V)
32,00
Torque max. (kg/cm)
147,00
Setting Speed max. (sec/60 degrees)
0,19
Hitec Servo Series
SG-Series
Weight (gramm)
475,00
Horn Gear Spline
Square (6,5mm x 6,5mm)
Length (mm)
64,00
Height (mm)
90,00
Voltage min. (V)
18,00
Torque min. (kg/cm)
147,00
Setting Speed min. (sec/60 degrees)
0,19
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
300°
Multi Turn
± 32760 Turns
Contniuos Rotation
No
Current Draw at idle (mA)
20
Current Draw max. (mA)
6400
Torque min. (N/cm)
1081,67
Torque max. (N/cm)
1441,57
Housing
Aluminum Alloy
Connector
Circular M12
Gearing (characteristic)
Hardened Steel
