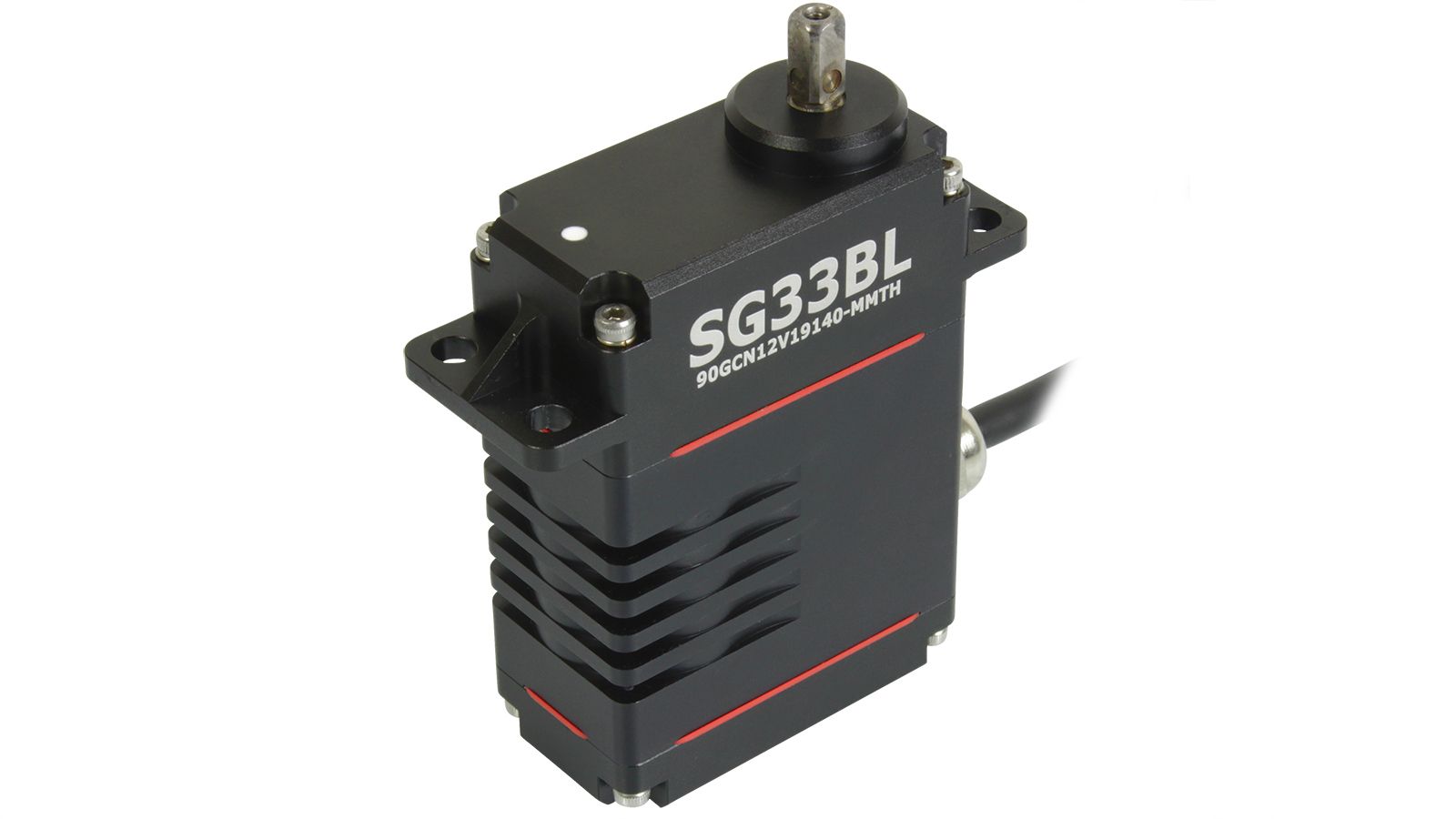

Servo SG33BL-T-CAN-12V (Gland Cable)
Item No.: 1-02345
9-15 V | max. 1441,57 N/cm | max. 0,185 Sek/60° | IP68
Contents:
- 1x HiTEC Servo SG33BL-T-CAN-12V (Gland Cable)
- 1x Servo arm I-MOS (6.5x6.5)
- Mounting hardware
Description
With CAN 2.0A/B and DroneCAN control, the HiTEC SG33BL-T-CAN-12V servo motor brings intelligent connectivity directly into your machine. The programmable digital servo combines an efficient BLDC drive with a magnetic encoder, ensuring precise position feedback, accurate path control and reproducible quality in every cycle. The hardened steel gear train converts drive power into a powerful actuating force of 1441 N/cm. IP68 provides long-term protection against dust and water – perfect for harsh industrial environments where system availability is critical.
The supply voltage range of 9.00–15.00 V offers additional flexibility in 12 V systems, while CAN/DroneCAN integration speeds up commissioning, diagnostics and update processes. The connection concept with a 400 mm cable enables flexible wiring directly within the system and helps to reduce service times. In this way, HiTEC combines precise sensing, powerful communication and robust mechanics in a servo motor that reliably delivers high forces in compact installation spaces – ideal for stabilising processes and measurably increasing output.
For further technical advice, please contact our Technical Support team📧.
The supply voltage range of 9.00–15.00 V offers additional flexibility in 12 V systems, while CAN/DroneCAN integration speeds up commissioning, diagnostics and update processes. The connection concept with a 400 mm cable enables flexible wiring directly within the system and helps to reduce service times. In this way, HiTEC combines precise sensing, powerful communication and robust mechanics in a servo motor that reliably delivers high forces in compact installation spaces – ideal for stabilising processes and measurably increasing output.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
33,00
Motor Type
BLDC
Encoder
Magnetic Encoder
IP Protection Class
IP68
Communication
CAN 2.0A/B / DroneCAN
Servo Type
Digital
Voltage max. (V)
15,00
Torque max. (kg/cm)
147,00
Setting Speed max. (sec/60 degrees)
0,19
Hitec Servo Series
SG-Series
Weight (gramm)
500,00
Horn Gear Spline
Square (6,5mm x 6,5mm)
Length (mm)
64,00
Height (mm)
90,00
Voltage min. (V)
9,00
Torque min. (kg/cm)
147,00
Setting Speed min. (sec/60 degrees)
0,19
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
300°
Multi Turn
± 32760 Turns
Contniuos Rotation
No
Current Draw at idle (mA)
30
Current Draw max. (mA)
10000
Torque min. (N/cm)
1081,67
Torque max. (N/cm)
1441,57
Housing
Aluminum Alloy
Connector
Cable Gland (400mm)
Gearing (characteristic)
Hardened Steel
