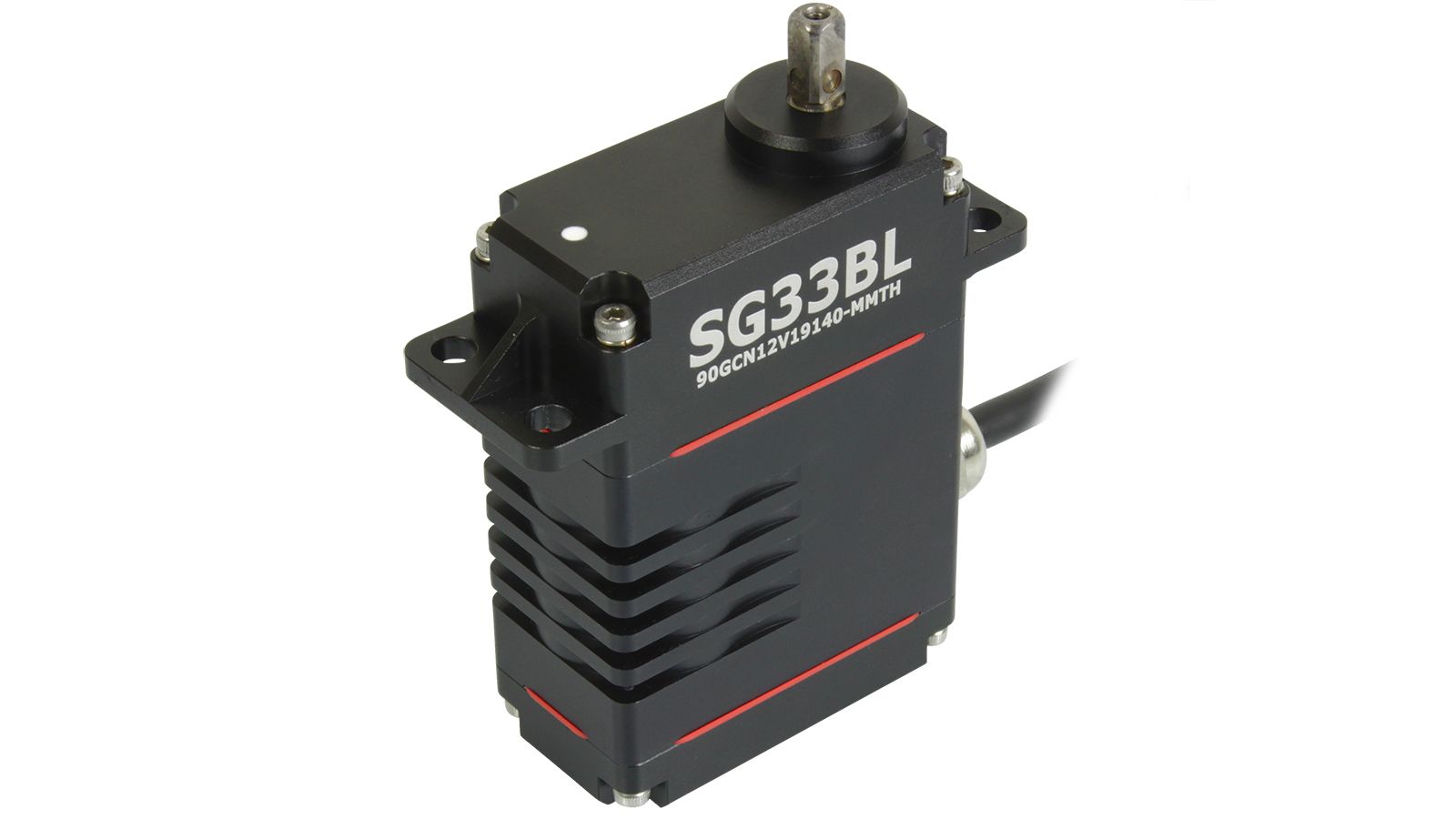

Servo SG33BL-T-24V (Gland Cable w/ IMC26-2007X)
Item No.: 1-02463
18-32 V | max. 1441,57 N/cm | max. 0,185 Sek/60° | IP68
Contents:
- 1x HiTEC Servo SG33BL-T-24V (Gland Cable w/ IMC26-2007X)
- 1x Servo arm I-MOS (6.5x6.5)
- Mounting hardware
Description
The HiTEC servo motor SG33BL-T-24V delivers precise positioning movements with powerful performance into your control system. This programmable digital servo combines a brushless DC motor with a magnetic encoder, providing exact position feedback and high repeatability. Via PWM or TTL, the system integrates reliably into both new and existing control architectures thanks to its proven, field-tested interfaces, simplifying commissioning. The hardened steel gear train converts drive power into a high actuating force of 1441 N/cm and impresses with durable, virtually backlash-free mechanics. IP68 provides long-term protection against dust and water, making it ideal for harsh industrial environments where availability is critical.
The supply voltage range of 18.00–32.00 V offers additional flexibility in 24 V systems. The connection concept with a 350 mm cable enables flexible wiring directly within the system and helps reduce service times. In this way, HiTEC combines precise sensing, powerful communication and robust mechanics in a servo motor that shortens cycle times, stabilizes processes and measurably increases output.
For further technical advice, please contact our Technical Support team📧.
The supply voltage range of 18.00–32.00 V offers additional flexibility in 24 V systems. The connection concept with a 350 mm cable enables flexible wiring directly within the system and helps reduce service times. In this way, HiTEC combines precise sensing, powerful communication and robust mechanics in a servo motor that shortens cycle times, stabilizes processes and measurably increases output.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
33,00
Motor Type
BLDC
Encoder
Magnetic Encoder
IP Protection Class
IP68
Communication
PWM / TTL
Servo Type
Digital
Voltage max. (V)
32,00
Torque max. (kg/cm)
147,00
Setting Speed max. (sec/60 degrees)
0,19
Hitec Servo Series
SG-Series
Weight (gramm)
515,00
Horn Gear Spline
Square (6,5mm x 6,5mm)
Length (mm)
64,00
Height (mm)
90,00
Voltage min. (V)
18,00
Torque min. (kg/cm)
147,00
Setting Speed min. (sec/60 degrees)
0,19
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
320°
Multi Turn
± 8 Turns
Contniuos Rotation
Yes
Current Draw at idle (mA)
20
Current Draw max. (mA)
6400
Torque min. (N/cm)
1081,67
Torque max. (N/cm)
1441,57
Housing
Aluminum Alloy
Connector
Cable Gland (350mm)
Gearing (characteristic)
Hardened Steel
