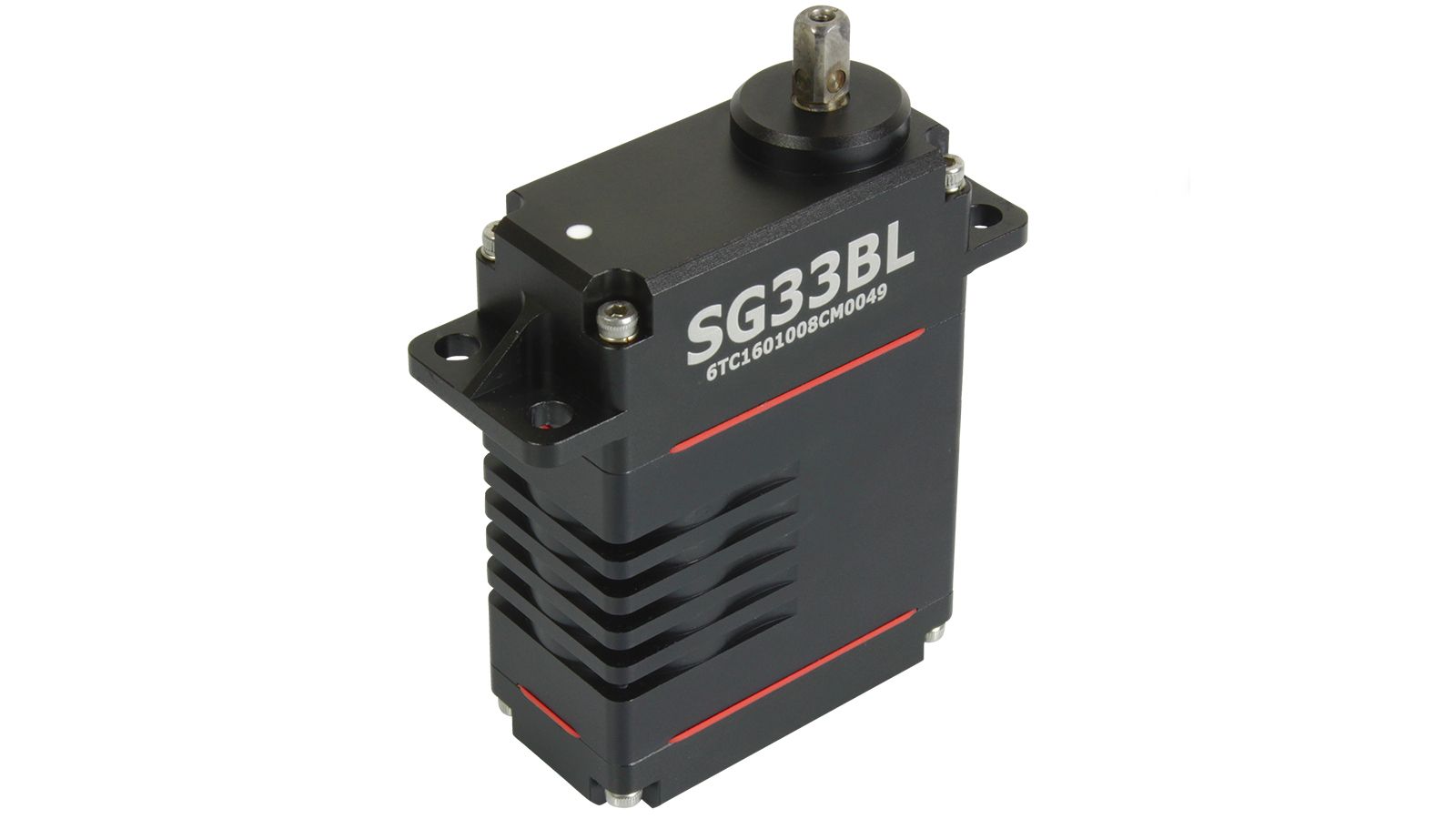

Servo SG33BL-T-12V (DB9 SUB)
Item No.: 1-00932
9-15 V | max. 1441,57 N/cm | max. 0,185 Sek/60° | IP68
Contents:
- 1x HiTEC Servo SG33BL-T-12V (DB9 SUB)
- 1x Servo arm I-MOS (6.5x6.5)
- Mounting hardware
Description
As a reliable actuator, the HiTEC SG33BL-T-12V combines efficient signal processing with an installation-friendly interface. The digital servo motor uses a BLDC drive and a magnetic encoder to provide precise position feedback and high repeatability. Via PWM, TTL or RS-485, the system integrates reliably into both new and existing control architectures thanks to its proven, field-tested interfaces, simplifying commissioning. The hardened steel gear train converts drive power into a powerful actuating force of 1441 N/cm, while a positioning time of 0.19 s/60° keeps cycle times short and processes dynamic. IP68 provides long-term protection against dust and water, making it ideal for demanding industrial environments.
The wide supply voltage range of 9.00–15.00 V increases flexibility in 12 V systems. The DB-9 SUB connector ensures robust, service-friendly wiring. In this way, HiTEC combines precise sensing, powerful communication and durable mechanics in a servo motor that reliably delivers high forces and fast positioning cycles, even in compact installation spaces.
For further technical advice, please contact our Technical Support team📧.
The wide supply voltage range of 9.00–15.00 V increases flexibility in 12 V systems. The DB-9 SUB connector ensures robust, service-friendly wiring. In this way, HiTEC combines precise sensing, powerful communication and durable mechanics in a servo motor that reliably delivers high forces and fast positioning cycles, even in compact installation spaces.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
33,00
Motor Type
BLDC
Encoder
Magnetic Encoder
IP Protection Class
IP68
Communication
PWM / TTL / RS-485
Servo Type
Digital
Voltage max. (V)
15,00
Torque max. (kg/cm)
147,00
Setting Speed max. (sec/60 degrees)
0,19
Hitec Servo Series
SG-Series
Weight (gramm)
480,00
Horn Gear Spline
Square (6,5mm x 6,5mm)
Length (mm)
64,00
Height (mm)
95,00
Voltage min. (V)
9,00
Torque min. (kg/cm)
147,00
Setting Speed min. (sec/60 degrees)
0,19
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
320°
Multi Turn
± 8 Turns
Contniuos Rotation
Yes
Current Draw at idle (mA)
30
Current Draw max. (mA)
10000
Torque min. (N/cm)
1081,67
Torque max. (N/cm)
1441,57
Housing
Aluminum Alloy
Connector
DB-9-SUB
Gearing (characteristic)
Hardened Steel
