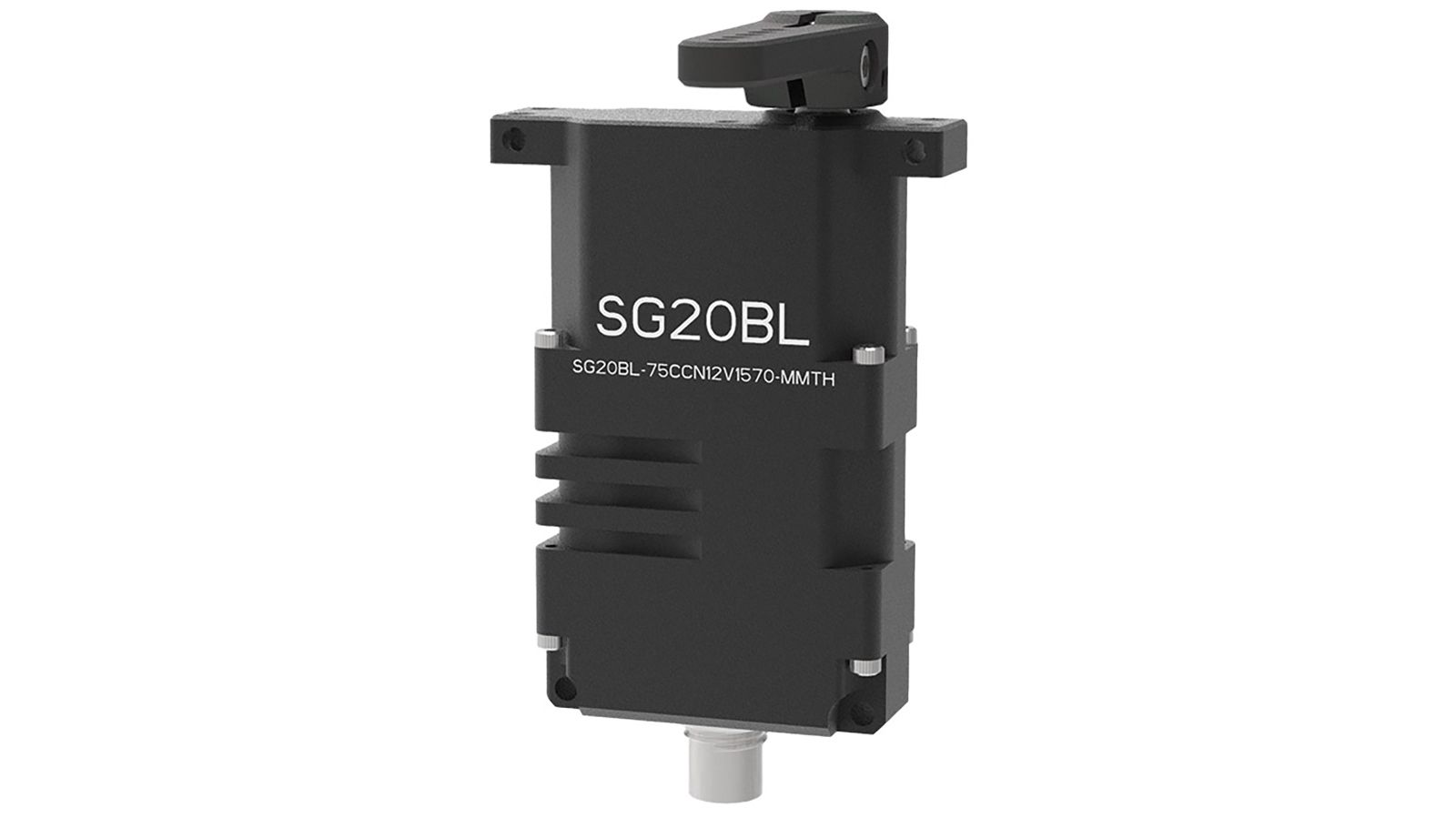

Servo SG20BL-CAN-12V (M8 Circular)
Item No.: 1-03169
9-15 V | max. 637,4 N/cm | max. 0,13 Sek/60° | IP68
Contents:
- 1x HiTEC Servo SG20BL-CAN-12V
- 1x Servo arm MOS6.5-S
- Mounting hardware
Description
Sealed to IP68, this HiTEC servo motor combines precise control with high durability. The SG20BL-CAN-12V delivers 637 N·cm and completes 60° in 0.13 s, uniting strong motion with noticeable agility. A brushless DC motor ensures efficient, long-lasting operation, while the contactless magnetic encoder captures position without wear for precisely repeatable cycles. The 32-bit programmable digital electronics finely tune control so the actuator reaches target positions quickly and holds them steadily. Via CAN 2.0A/B and DroneCAN, the servo integrates seamlessly into controllers and distributed networks. Feedback on position, torque, and other operating parameters supports diagnostics and process reliability. The 9.0–15.0 V range simplifies system design, and the circular M8 connector ensures a secure connection. The result is a compact drive system for precise, robust motion technology.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
20,00
Motor Type
BLDC
Encoder
Magnetic Encoder
IP Protection Class
IP68
Communication
CAN 2.0A/B / DroneCAN
Servo Type
Digital
Voltage max. (V)
15,00
Torque max. (kg/cm)
65,00
Setting Speed max. (sec/60 degrees)
0,13
Hitec Servo Series
SG-Series
Weight (gramm)
500,00
Horn Gear Spline
Square (6,5mm x 6,5mm)
Length (mm)
45,00
Height (mm)
75,00
Voltage min. (V)
9,00
Torque min. (kg/cm)
65,00
Setting Speed min. (sec/60 degrees)
0,13
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
300°
Multi Turn
± 32760 Turns
Contniuos Rotation
No
Current Draw at idle (mA)
30
Current Draw max. (mA)
4000
Torque min. (N/cm)
637,40
Torque max. (N/cm)
637,40
Housing
Aluminum Alloy
Connector
Circular M8
Gearing (characteristic)
Hardened Steel
