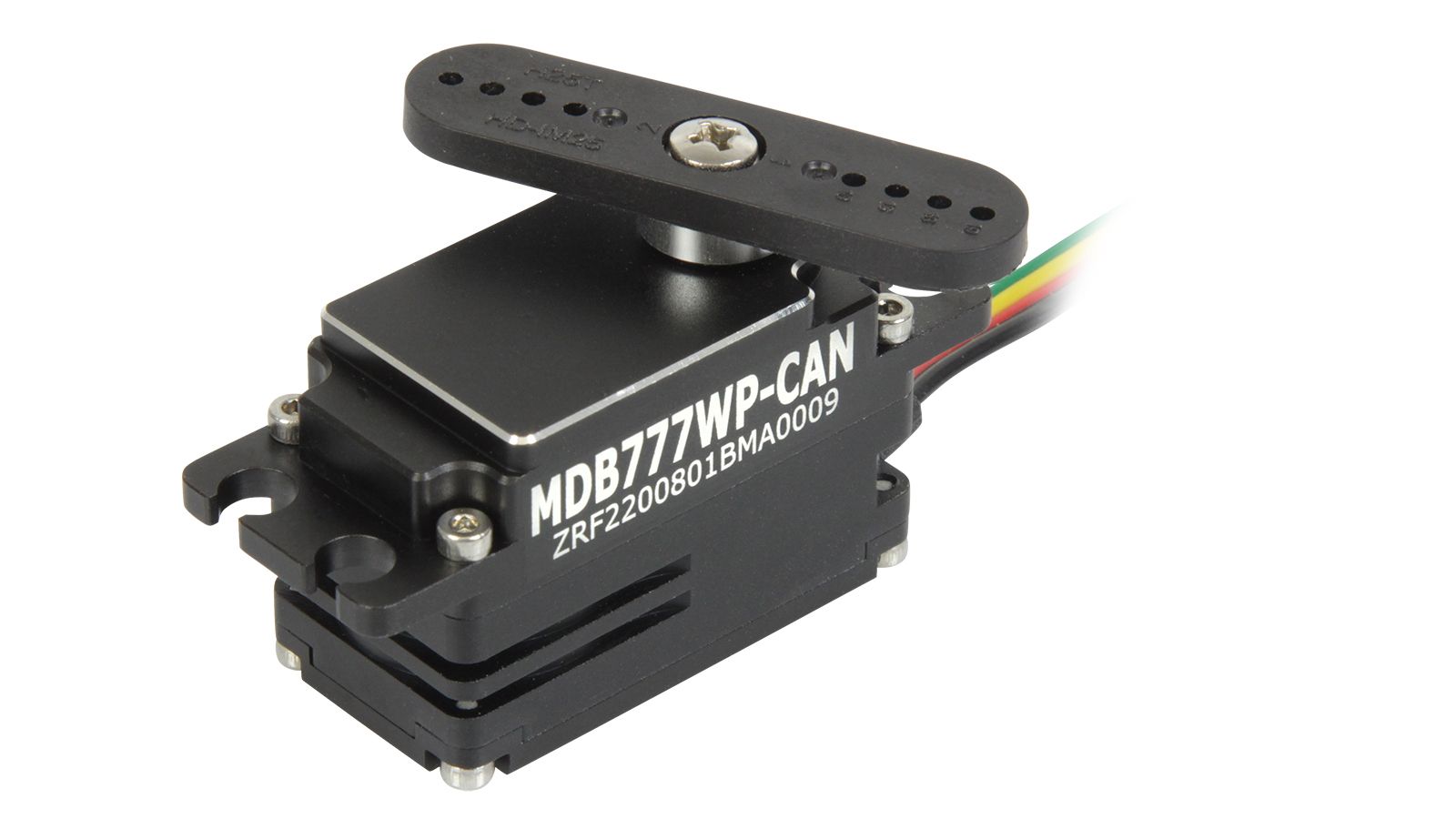

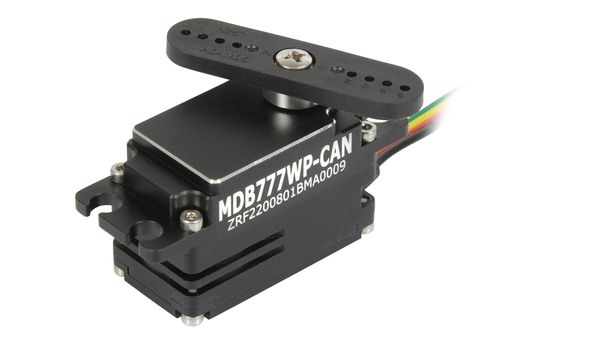

Servo MDB777WP-CAN
Item No.: 1-03030
6-7,4 V | max. 107,9 N/cm | max. 0,06 Sek/60° | IP67
Contents:
- 1x HiTEC Servo MDB777WP-CAN
- Servo arm set (HD-IM25, HD-LS25, HD-OS25, HD-X25)
- Mounting hardware
Description
The HiTEC servo motor MDB777WP with CAN 2.0A/B pairs responsive control with robust communication. The programmable digital servo uses a contactless magnetic encoder for repeatable positioning, and the BLDC drive reacts without delay. At 7.4 V, the actuator achieves 0.06 s per 60° and 107 N·cm. IP67 makes it dust-tight and resistant to temporary immersion, enabling use in dusty production areas and humid environments. The hardened steel gear train ensures efficient, long-lasting power transmission. Via CAN 2.0A/B, the servo integrates seamlessly into existing networks. The 4.0–8.4 V supply provides design flexibility.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
21,00
Motor Type
BLDC
Encoder
Magnetic Encoder
IP Protection Class
IP67
Communication
CAN 2.0A/B
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
11,00
Setting Speed max. (sec/60 degrees)
0,06
Hitec Servo Series
MDB-Series
Weight (gramm)
70,00
Horn Gear Spline
H25T (Ø6,0mm)
Length (mm)
41,00
Height (mm)
26,50
Voltage min. (V)
6,00
Torque min. (kg/cm)
8,00
Setting Speed min. (sec/60 degrees)
0,08
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
300°
Multi Turn
± 32760 Turns
Contniuos Rotation
No
Current Draw at idle (mA)
26
Current Draw max. (mA)
5000
Torque min. (N/cm)
78,50
Torque max. (N/cm)
107,90
Housing
Aluminum Alloy
Connector
Hitec 4 Pin (Uni)
Gearing (characteristic)
Hardened Steel
