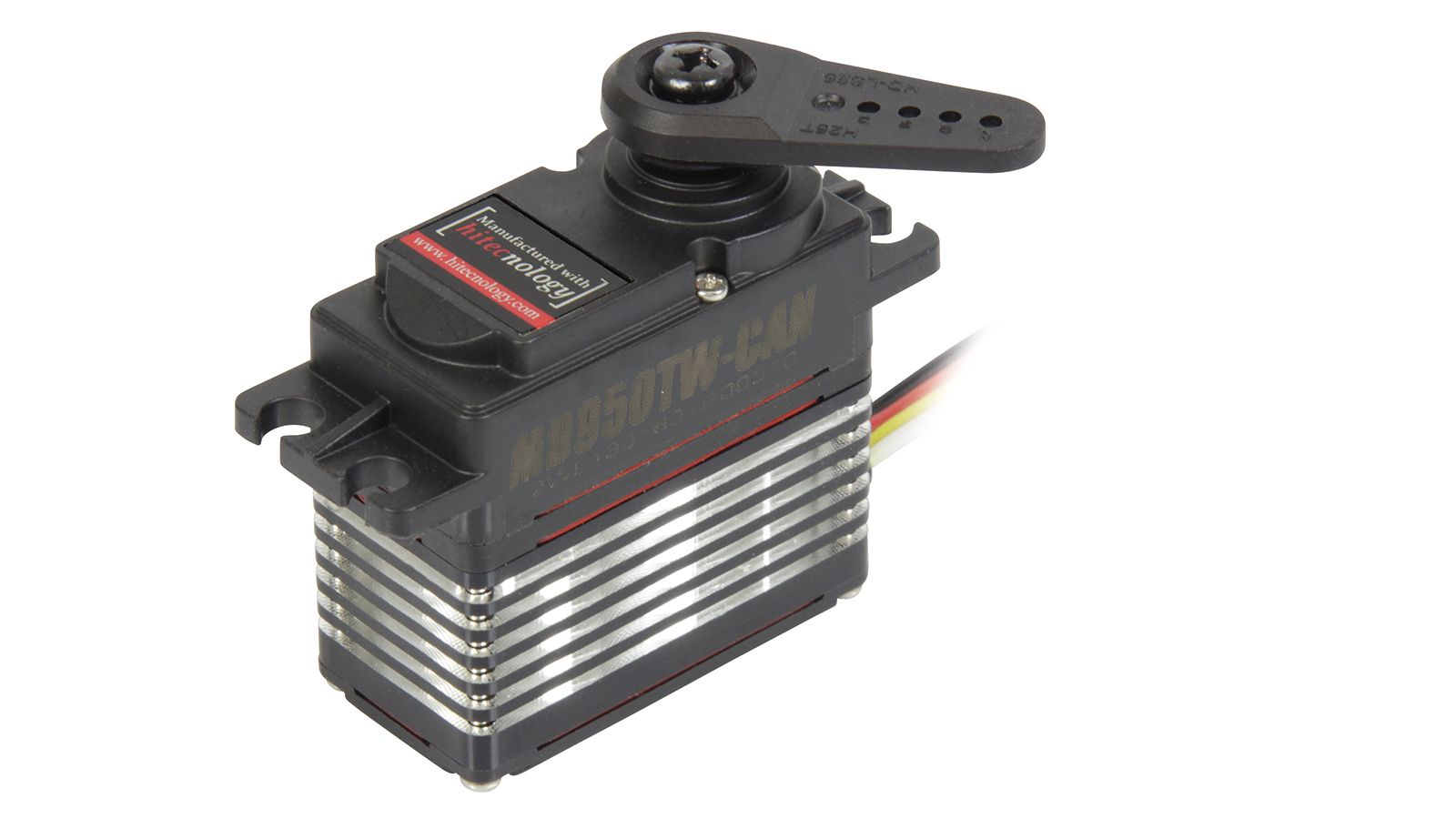

Servo MD950TW-CAN (AT)
Item No.: 1-02847
4,8-7,4 V | max. 343,23 N/cm | max. 0,14 Sek/60° | IP54
Contents:
- 1x HiTEC Servo MD950TW-CAN
- Servo arm set (HD-IM25, HD-LS25, HD-OS25, HD-X25)
- Mounting hardware
Description
If you need fast, precise control with robust bus connectivity, choose the HiTEC servo motor MD950TW with CAN 2.0A/B. This programmable digital servo delivers consistently stable feedback and fine resolution thanks to its contactless magnetic encoder, while the coreless motor accelerates quickly. With 0.14 s/60° and 343 N·cm, the actuator positions loads swiftly, and the titanium gear train transmits power with minimal wear. The 4.0–8.4 V operating range provides design headroom, and IP54 reliably protects against dust and splashing water. Via CAN 2.0A/B, the drive integrates seamlessly into modern networks. Digital servos offer versatile programming features that can be precisely tailored to the application.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
20,00
Motor Type
Coreless
Encoder
Magnetic Encoder
IP Protection Class
IP54
Communication
CAN 2.0A/B
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
35,00
Setting Speed max. (sec/60 degrees)
0,14
Hitec Servo Series
MD-Series
Weight (gramm)
66,40
Horn Gear Spline
H25T (Ø6,0mm)
Length (mm)
40,00
Height (mm)
38,00
Voltage min. (V)
4,80
Torque min. (kg/cm)
21,00
Setting Speed min. (sec/60 degrees)
0,23
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
300°
Multi Turn
± 32760 Turns
Contniuos Rotation
No
Current Draw at idle (mA)
30
Current Draw max. (mA)
6200
Torque min. (N/cm)
205,94
Torque max. (N/cm)
343,23
Housing
Engineering Plastic with Aluminum Heat Sink
Connector
Hitec 4 Pin (Uni)
Gearing (characteristic)
Titanium Alloy
