Servo MD845WP

Item No.: 1-03227
4,8-7,4 V | max. 490,33 N/cm | max. 0,17 Sek/60° | IP67

Contents:
  • 1x HiTEC Servo MD845WP
  • Servo arm set (2x Q-OA, Q-XA, Q-MIA)
  • Mounting hardware
155,90 €
Price incl. VAT plus Shipping

In Stock.

Description Technical data Downloads
Description
Our MD845WP industrial actuator offers a wide voltage range, as well as IP67-certified water & dust-proof protection, making it suitable for many industrial applications.
Featuring a machined aluminum-composite case to dissipate heat, two ball bearings and four steel gears, digital amp with MOSFET drive, and both PWM & PWM/TTL control protocols, this powerhouse delivers nearly 700 oz-inches of torque. Program parameters such as End Point Adjustments, Direction, Speed and Fail-Safe position to optimize the installation and performance when your industrial applications demand that extra level of performance and capability.

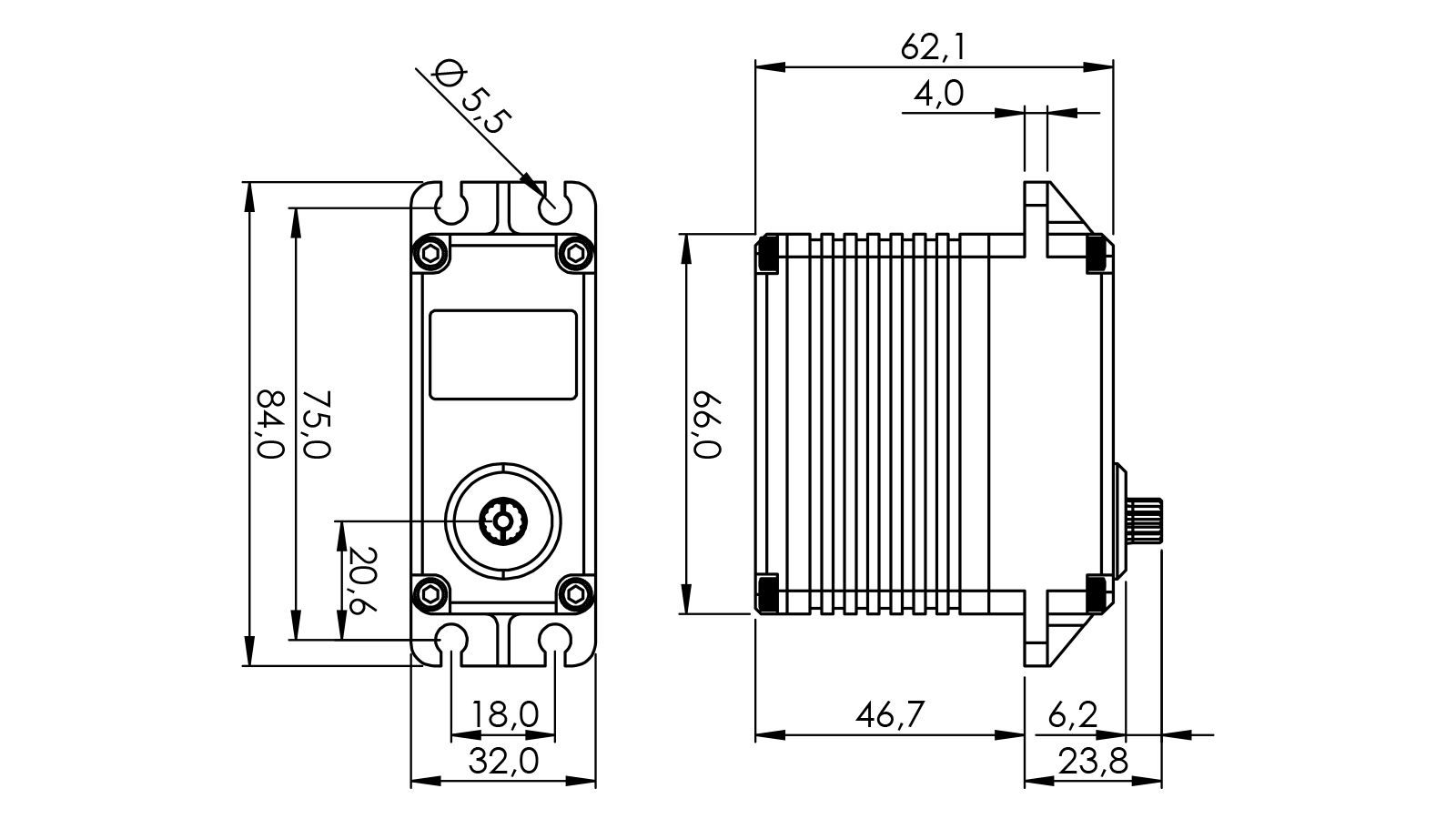

Technical data
Width (mm)
32,00
Motor Type
Cored Carbon Brush
Encoder
Magnetic Encoder
IP Protection Class
IP67
Communication
PWM / TTL
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
50,00
Setting Speed max. (sec/60 degrees)
0,17
Hitec Servo Series
MD-Series
Weight (gramm)
228,90
Horn Gear Spline
15T (Ø8,0mm)
Length (mm)
66,00
Height (mm)
62,10
Voltage min. (V)
4,80
Torque min. (kg/cm)
32,50
Setting Speed min. (sec/60 degrees)
0,26
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
320°
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
30
Current Draw max. (mA)
10000
Torque min. (N/cm)
318,72
Torque max. (N/cm)
490,33
Housing
Engineering Plastic with Aluminum Heat Sink
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Steel
