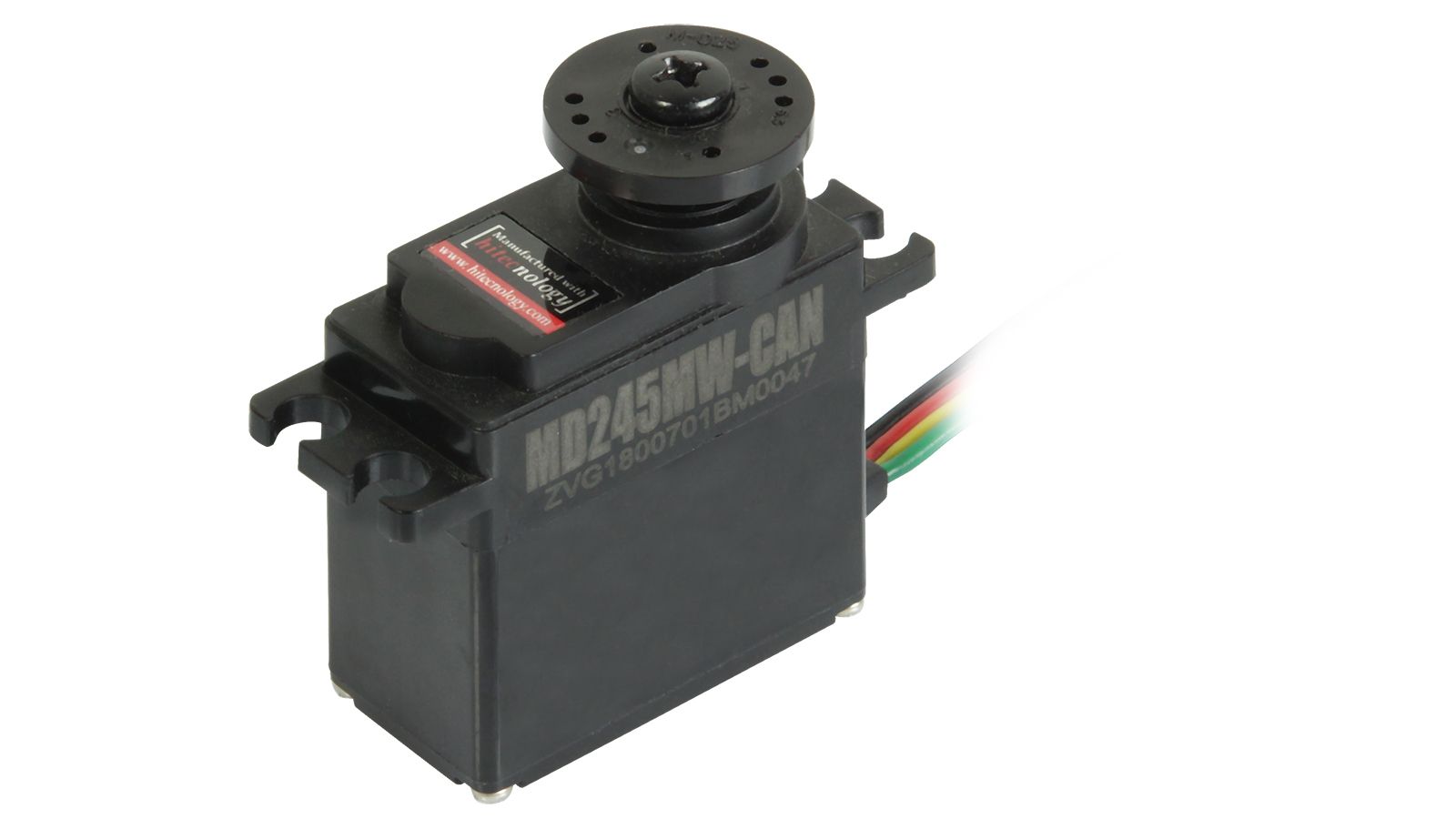

Servo MD245MW-CAN
Item No.: 1-01574
16.8mm, Coreless, Wide Voltage, Metal Gear, Mini Actuator
Description
The MD245MW-CAN is a 16.8mm, metal gear, mini servo with dual ball bearings and efficient coreless motor. Engineered with a programmable digital amplifier and contactless magnetic encoder to deliver high performance and reliability in a wide variety of robotic and remote, unmanned aerial applications. Operating via CAN command protocol at a wide voltage range from 4.8~7.4 volts, this mighty mini actuator produces impressive torque and speeds in its class. The MD245MW-CAN servo is ideal for a variety of applications requiring an efficient balance of performance and cost.
Technical data
Servo Width (mm)
16,80
Motor Type
Brushed Motor
Encoder
Magnetic Encoder
Waterproof
No
Waterproof
IP4X
Communication
CAN 2.0A/B
Servo Type
Digital
Max. Voltage (V)
7,40
Max. Force (kg/cm)
6,40
Max. Setting Speed (sec / 60 degrees)
0,11
Hitec Servo Series
MD-Series
Weight (gramm)
34,00
Gearing
H25T (Ø6,0mm)
