Servo MD145SW-CAN (AT)
Item No.: 1-01787
4,8-7,4 V | max. 58,84 N/cm | max. 0,14 Sek/60° | IP4X
Contents:
- 1x HiTEC Servo MD145SW-CAN
- Servo arm set (MS-L25, MS-ML25)
- Mounting hardware
Description

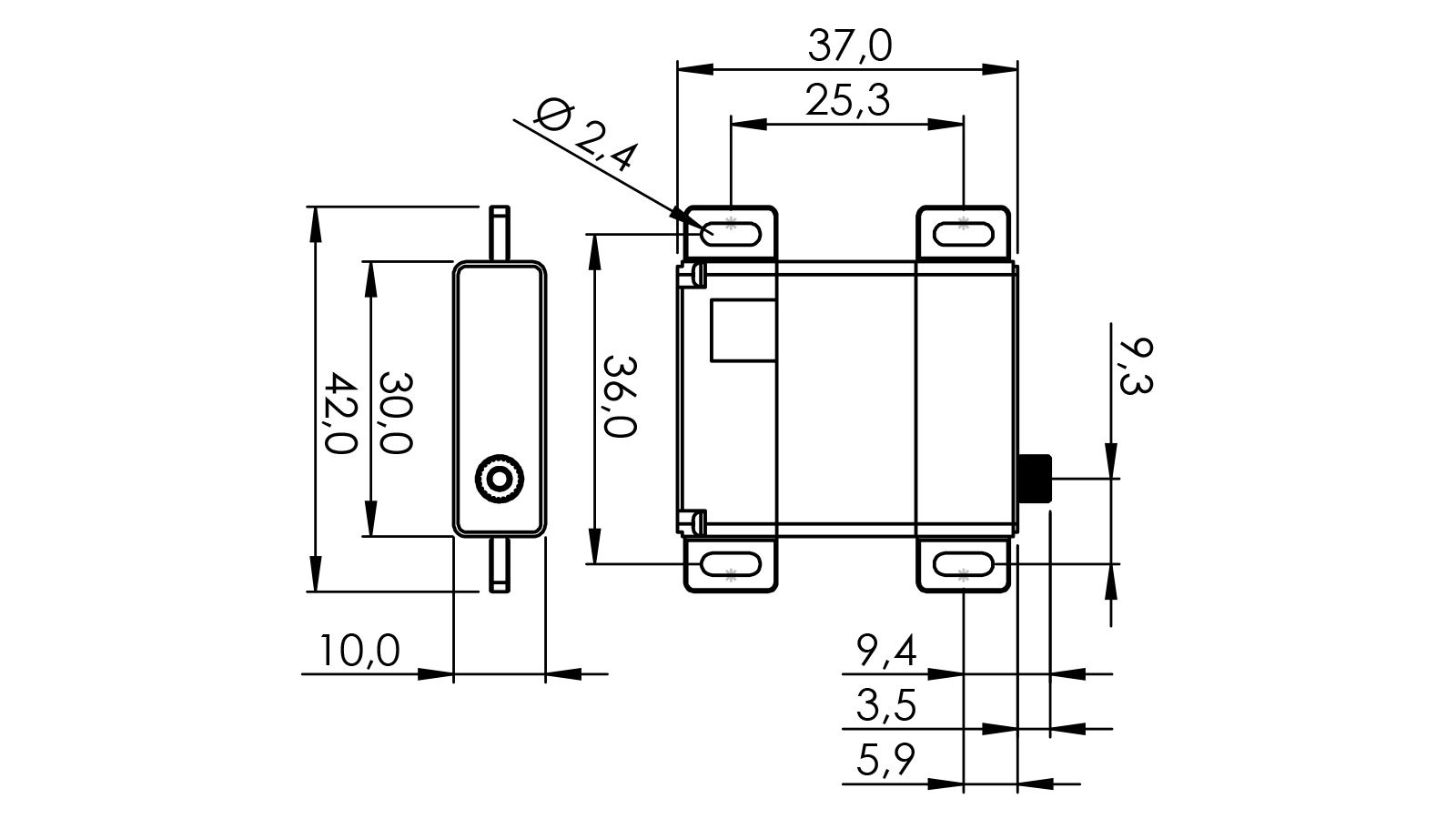

Compact and powerful: The HiTEC MD145SW-CAN servo delivers precise motion in tight spaces and fits into dense layouts with 30.0 × 10.0 × 37.0 mm (1.18 × 0.39 × 1.46 in). A non-contact magnetic encoder provides wear-free feedback and clean centering, while the brushed motor converts commands smoothly into torque. CAN 2.0A/B and programmability simplify adaptation to your control system and motion profiles. The 4–8.4 V supply range adds flexibility. At 7.4 V, this digital servo achieves 0.14 s per 60° and develops 68 N·cm, ideal for fast sequences with defined stops. A steel gear train transmits power precisely and ensures smooth running. The servo combines a small footprint, accurate feedback, and dependable torque delivery.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
10,00
Motor Type
Cored Carbon Brush
Encoder
Magnetic Encoder
IP Protection Class
IP4X
Communication
CAN 2.0A/B
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
7,00
Setting Speed max. (sec/60 degrees)
0,14
Hitec Servo Series
MD-Series
Weight (gramm)
27,60
Horn Gear Spline
M25T (Ø5,0mm)
Length (mm)
30,00
Height (mm)
37,00
Voltage min. (V)
4,80
Torque min. (kg/cm)
4,90
Setting Speed min. (sec/60 degrees)
0,21
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
300°
Multi Turn
± 32760 Turns
Contniuos Rotation
No
Current Draw at idle (mA)
30
Current Draw max. (mA)
2500
Torque min. (N/cm)
38,25
Torque max. (N/cm)
58,84
Housing
Engineering Plastic
Connector
Hitec 4 Pin (Uni)
Gearing (characteristic)
Steel
