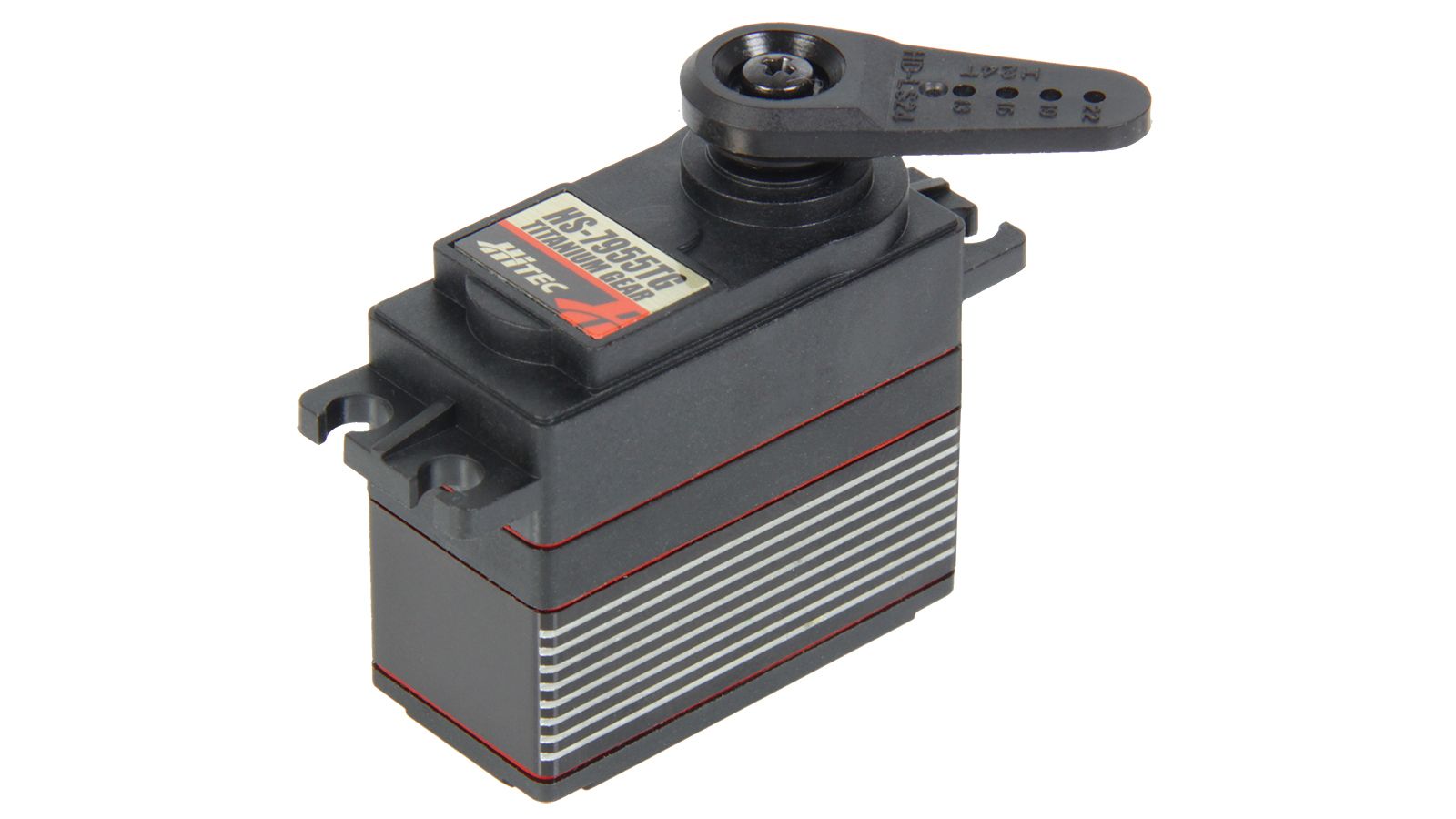

Servo HS-7955TG
Item No.: 113957
4,8-6 V | max. 235,4 N/cm | max. 0,15 Sek/60° | IP54
EUS:
This actuator falls under export control regulations. End User Statement is required.
Please contact us if you are interested in buying.
Contents:
- 1x HiTEC Servo HS-7955TG
- Servo arm set (R-ML, HD-IL, HD-IS, HD-LS, HD-LL, HD-OS)
- Mounting hardware
Description
Our titanium-geared HS-7955TG industrial actuator is well known as a leader in its class for its high torque, and convenient programming. With dual ball bearings, coreless motor, Digital amp & MOSFET drive and PWM protocol. The HS-7955TG is a reliable and easy to use option for your moderate duty industrial applications.
Technical data
Width (mm)
20,00
Motor Type
Coreless
Encoder
Potentiometer
IP Protection Class
IP54
Communication
PWM
Servo Type
Digital
Voltage max. (V)
6,00
Torque max. (kg/cm)
24,00
Setting Speed max. (sec/60 degrees)
0,15
Hitec Servo Series
HS-7XXX Series
Weight (gramm)
65,00
Horn Gear Spline
H24T (Ø6,0mm)
Length (mm)
40,00
Height (mm)
37,00
Voltage min. (V)
4,80
Torque min. (kg/cm)
18,00
Setting Speed min. (sec/60 degrees)
0,19
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
175°
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
9
Current Draw max. (mA)
4200
Torque min. (N/cm)
176,50
Torque max. (N/cm)
235,40
Housing
Engineering Plastic with Aluminum Heat Sink
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Titanium Alloy
