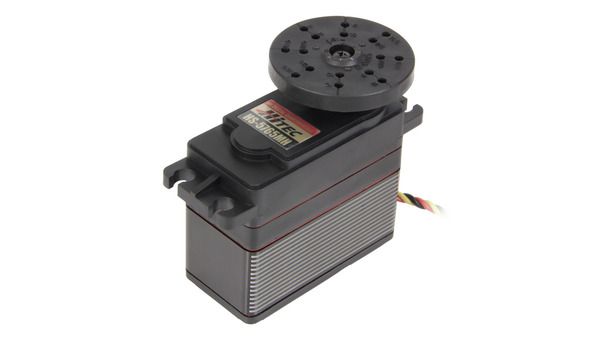

Servo HS-5765MH
Item No.: 1-03238
29mm HS-5765MH, Cored, High Voltage, Metal Gear Actuator (7.4V)
Content:
- 1x Servo HS5765MH
- Operating instructions
Description
Our HS-5765MH industrial actuator features three ball bearings, three metal gears, a Digital amp with MOSFET drive, and a PWM protocol.
Optimized to deliver nearly 350 oz-inches of torque, the HS-5765MH also offers high speed operation. This is a reliable and easy to use option for mid duty industrial applications. Program parameters such as End Point Adjustments, Direction, Speed, and Fail-Safe position to optimize the installation and performance for your specific needs.
Optimized to deliver nearly 350 oz-inches of torque, the HS-5765MH also offers high speed operation. This is a reliable and easy to use option for mid duty industrial applications. Program parameters such as End Point Adjustments, Direction, Speed, and Fail-Safe position to optimize the installation and performance for your specific needs.
Technical data
Servo Width (mm)
29,00
Motor Type
Brushed Motor
Encoder
Potentiometer
Waterproof
IP54
Communication
PWM
Servo Type
Digital
Max. Voltage (V)
8,40
Max. Force (kg/cm)
5,00
Max. Setting Speed (sec / 60 degrees)
0,13
Hitec Servo Series
HS-Series
Weight (gramm)
172,30
Horn Gear Spline
15T (Ø8,0mm)
