Servo HS-55+

Item No.: 1-01205
Spare part for EasyGlider 4 (wing)

Content:
  • 1x Servo HS-55+
  • Servo Arm Set (FS-IL15, FS-IS15, FS-XS15, FS-IXL15)
  • Mounting Hardware
16,40 €
Price incl. VAT plus Shipping

In Stock.

Description
This HiTEC servo operates as an analog unit via the proven PWM interface, keeping control deliberately straightforward. The HS-55+ offers the same performance specifications as the HS-55 and likewise uses a potentiometer for clear position feedback and crisp centering. Its coreless motor responds with fine control, reduces inertia, and supports smooth regulation. At 6.0 V the actuator achieves 0.14 s per 60° and delivers 14 N·cm of torque, enabling fast and precise actuation. In addition, the HS-55+ features a cable length of approx. 35 cm, providing more flexibility for mounting position and cable routing.

For further technical advice, please contact our Technical Support team?.
Technical data
Spare Part for MPX model
264264 RR Solius mit BL-Antrieb
Spare Part for MPX model
13272 RTF EasyGlider 4 (Mode 1+3)
Spare Part for MPX model
1-02828 RR EasyGlider 4 (made by MPX)
Spare Part for MPX model
264333 RR+ EasyGlider 4
Spare Part for MPX model
13273 RTF EasyGlider 4 (Mode 2+4)
Spare Part for MPX model
1-02832 BK EasyGlider 4 (made by MPX)
Spare Part for MPX model
214264 BK Solius
Spare Part for MPX model
1-03159 BK Solius (made by MPX)

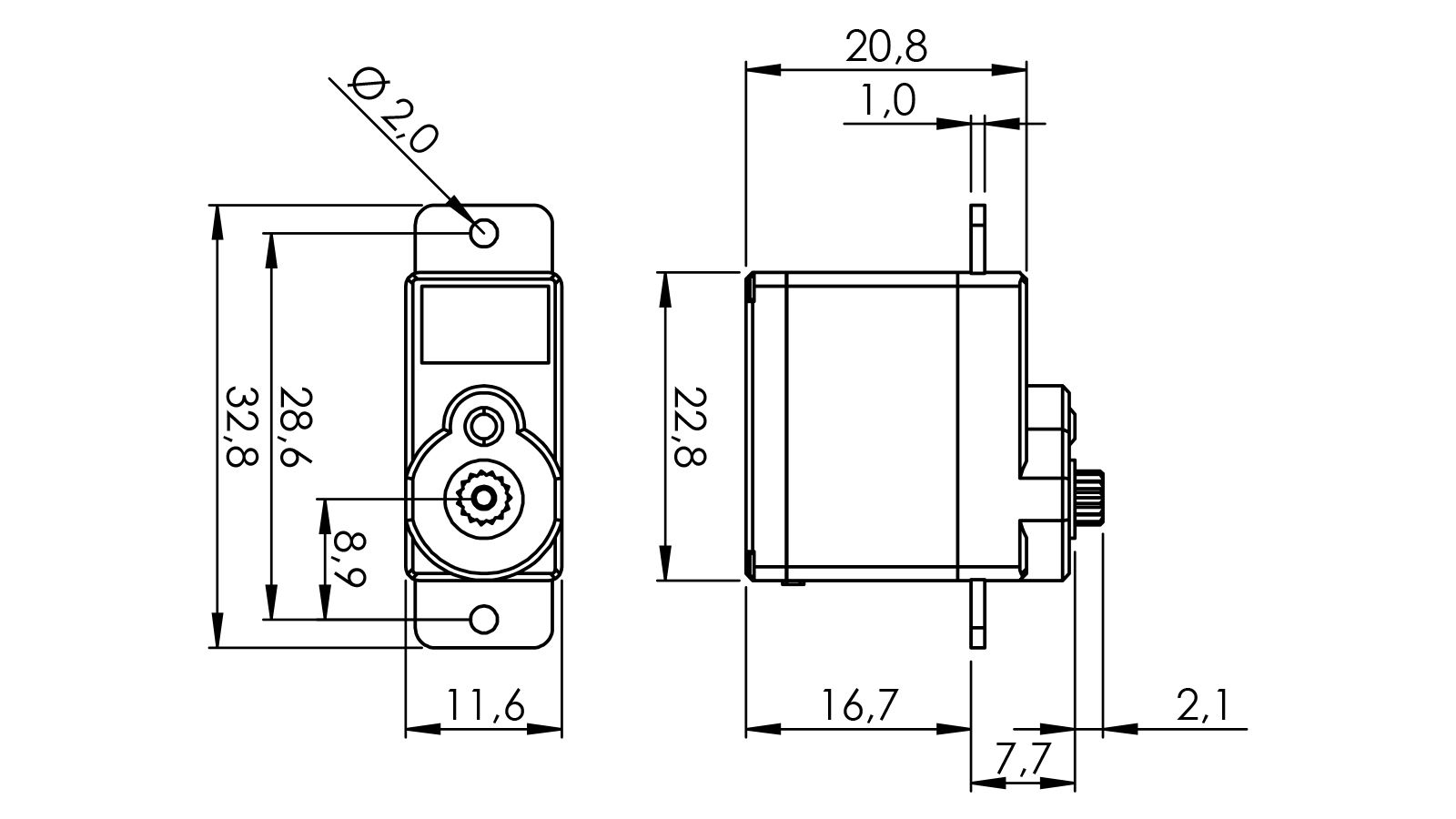

Width (mm)
11,60
Motor Type
Coreless
Encoder
Potentiometer
IP Protection Class
IP4X
Communication
PWM
Servo Type
Analog
Voltage max. (V)
6,00
Torque max. (kg/cm)
1,50
Setting Speed max. (sec/60 degrees)
0,14
Hitec Servo Series
HS-Series
Weight (gramm)
8,00
Horn Gear Spline
F15T (Ø4,0mm)
Length (mm)
22,80
Height (mm)
24,00
Voltage min. (V)
4,80
Torque min. (kg/cm)
1,20
Setting Speed min. (sec/60 degrees)
0,18
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
not possible
Multi Turn
not possible
Continuos Rotation
No
Current Draw at idle (mA)
5
Current Draw max. (mA)
180
