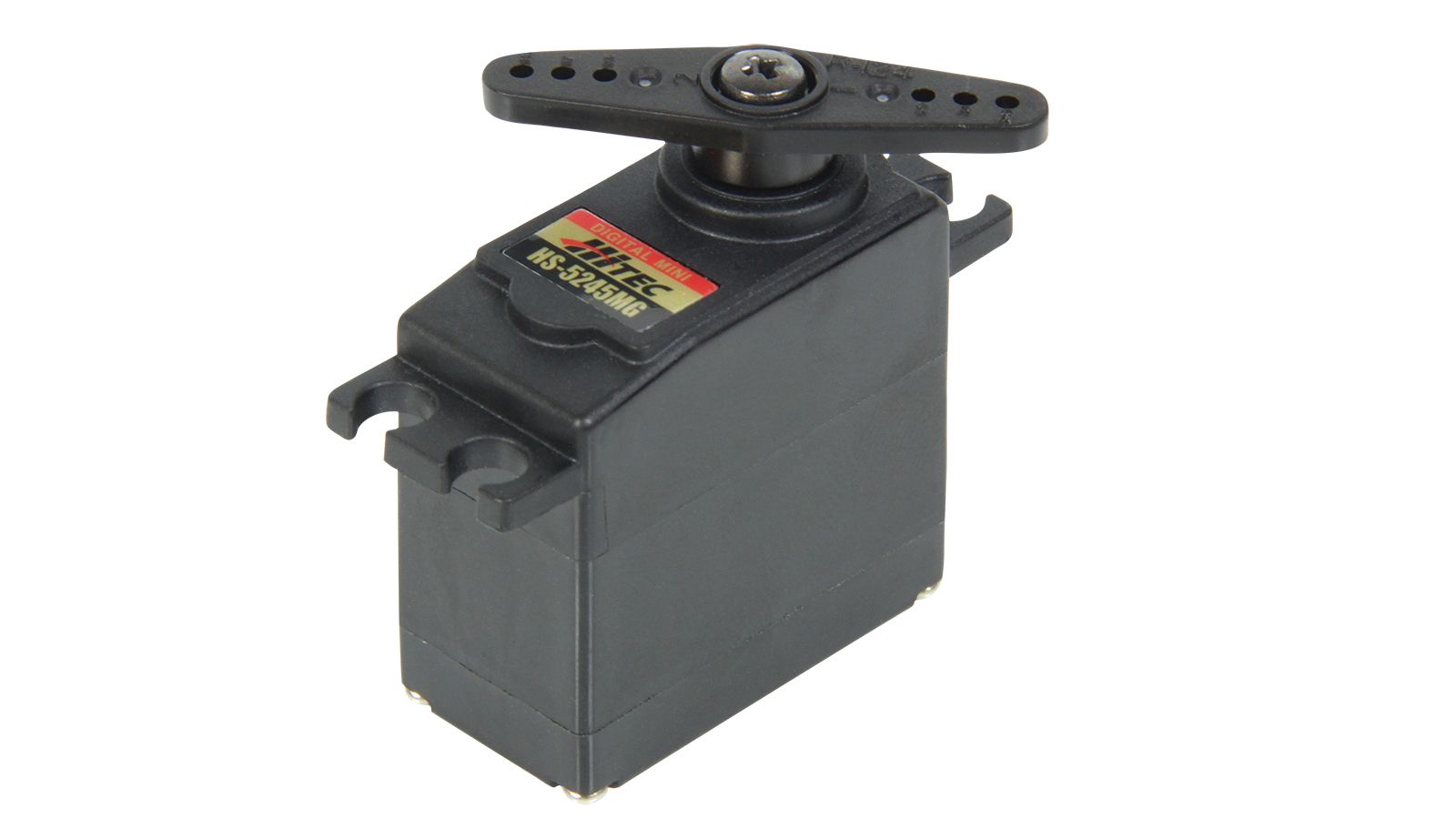

Servo HS-5245MG
Item No.: 113245
4,8-6 V | max. 53,9 N/cm | max. 0,12 Sek/60° | IP4X
Contents:
- 1x HiTEC Servo HS-5245MG
- Servo arm set (R-O, R-X, R-I, R-D, R-C, R-ML)
- Mounting hardware
EUS:
This actuator falls under export control regulations. End User Statement is required.
Please contact us if you are interested in buying.
Description
The HiTEC servo uses a potentiometer for reliable position feedback and precise centering. Through the proven PWM interface, the actuator integrates smoothly into existing controllers. At 6 V, the metal-core brushed motor reaches 0.12 s per 60° and develops 53 N·cm of torque, enabling fast, controlled positioning. The 3.5–8.4 V supply range simplifies system design across platforms. A metal gear train with ball bearings reduces friction, ensuring smooth running and efficient power transfer. The HS-5245MG delivers precision, agility, and reliability in tight spaces.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
16,80
Motor Type
Cored Metal Brush
Encoder
Potentiometer
IP Protection Class
IP4X
Communication
PWM
Servo Type
Digital
Voltage max. (V)
6,00
Torque max. (kg/cm)
5,50
Setting Speed max. (sec/60 degrees)
0,12
Hitec Servo Series
HS-5XXX Series
Weight (gramm)
32,00
Horn Gear Spline
H24T (Ø6,0mm)
Length (mm)
32,20
Height (mm)
31,00
Voltage min. (V)
4,80
Torque min. (kg/cm)
4,40
Setting Speed min. (sec/60 degrees)
0,15
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
175°
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
3
Current Draw max. (mA)
2000
Torque min. (N/cm)
43,10
Torque max. (N/cm)
53,90
Housing
Engineering Plastic
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Metal
