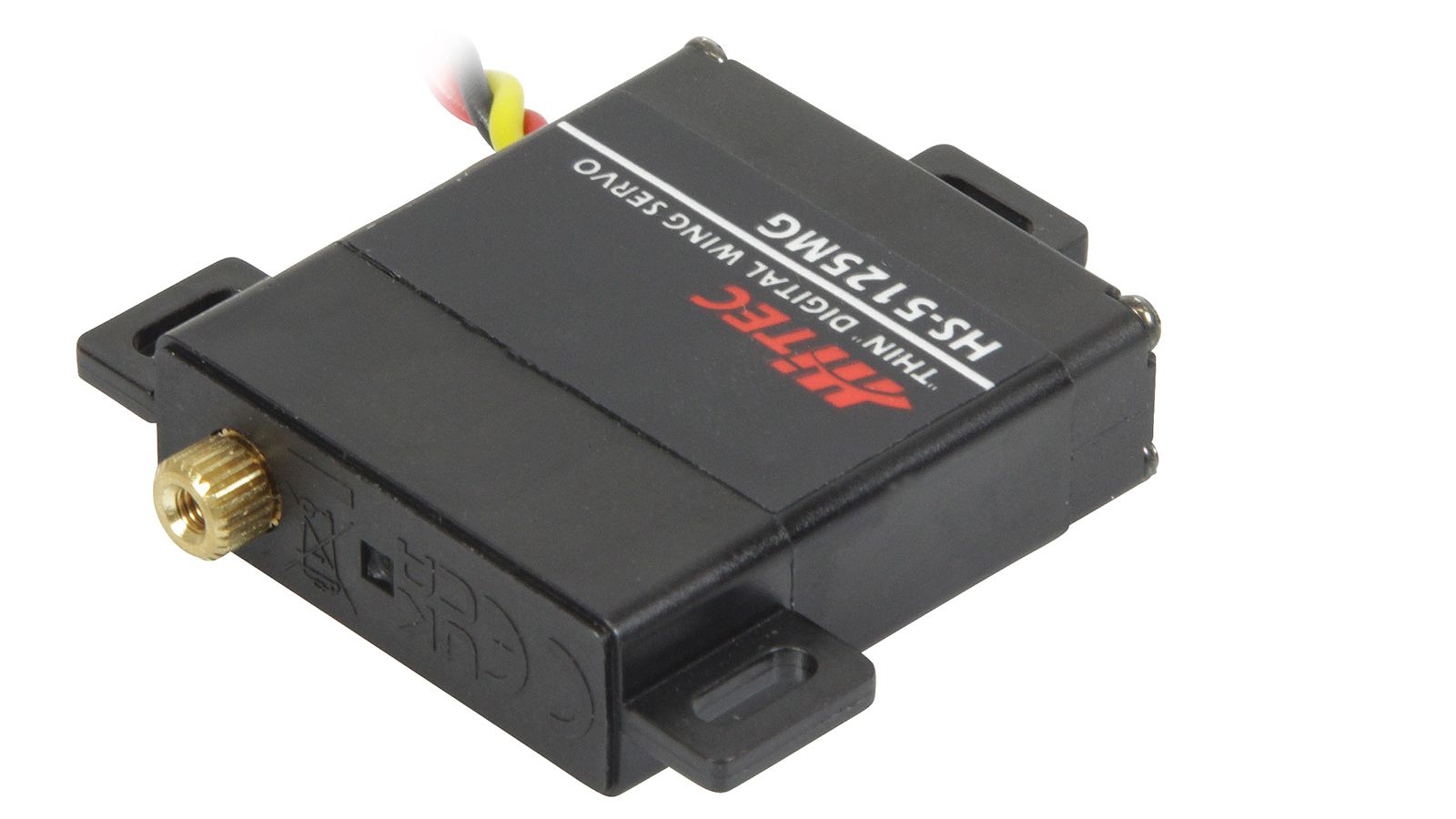

Servo HS-5125MG
Item No.: 113125
4,8-6 V | max. 31,4 N/cm | max. 0,14 Sek/60° | IP4X

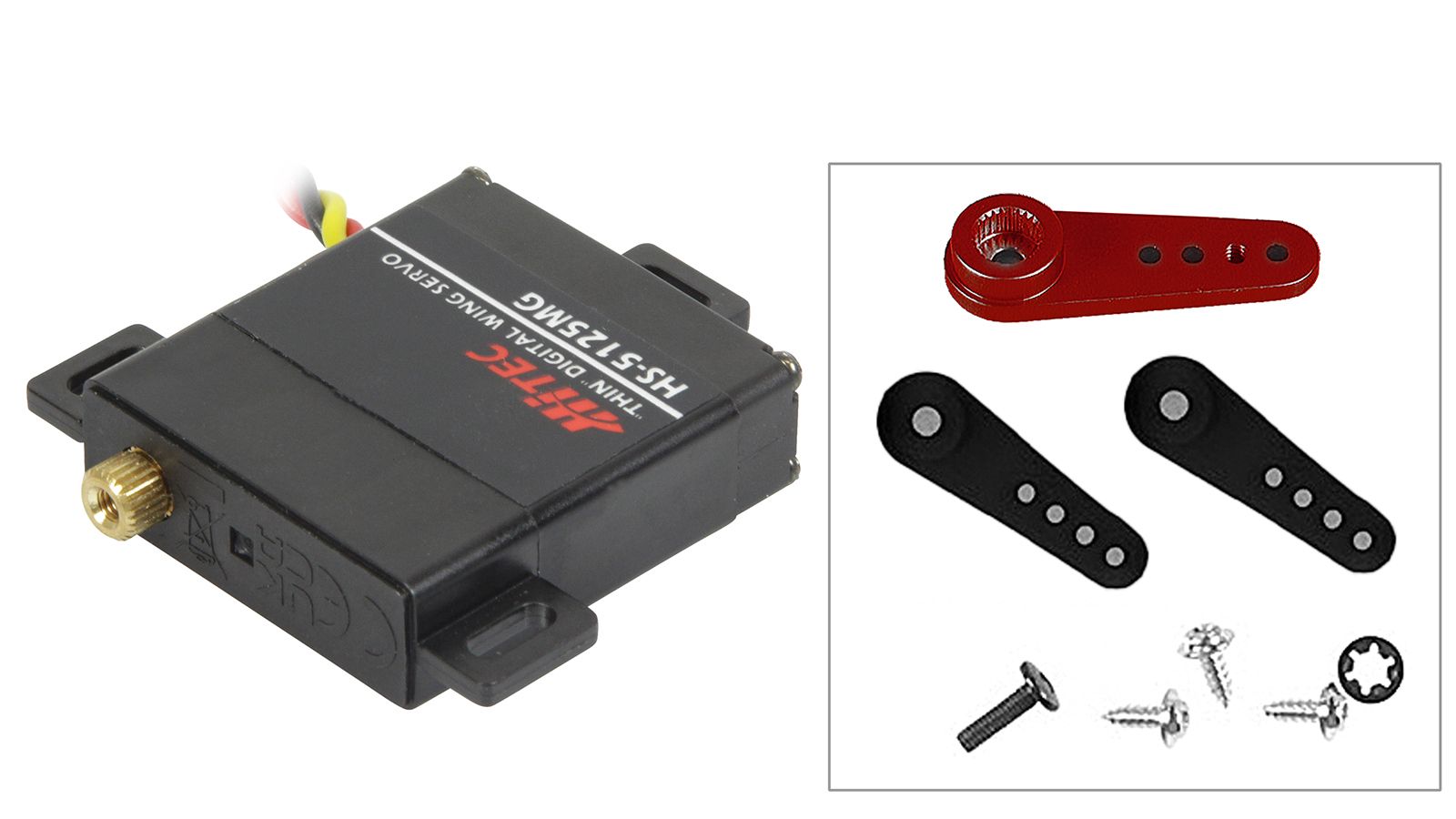

Contents:
- 1x HiTEC Servo HS-5125MG
- Servo arm set (MS-L25, MS-ML25)
- Mounting hardware
Description
The HiTEC servo motor HS-5125MG delivers precise motion in a compact footprint and connects directly to common controllers via traditional, proven PWM. An analog potentiometer provides fine, repeatable position feedback, while the programmable drive lets you tailor behavior to your application. The brushed motor with metal core ensures smooth starts and stable control, and the metal geartrain maintains direct, durable power transfer for consistent, repeatable moves. At 6 V the actuator reaches 0.14 s/60° and supplies up to 0.32 N·m (45.3 oz-in) of torque for quick positioning with confident holding force. The wide 3.5–8.4 V supply range simplifies integration into existing systems and leaves headroom when sizing the electronics, resulting in a compact solution that blends agility and precision for clean, reliable positioning.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
10,00
Motor Type
Cored Metal Brush
Encoder
Potentiometer
IP Protection Class
IP4X
Communication
PWM
Servo Type
Digital
Voltage max. (V)
6,00
Torque max. (kg/cm)
3,30
Setting Speed max. (sec/60 degrees)
0,14
Hitec Servo Series
HS-5XXX Series
Weight (gramm)
24,00
Horn Gear Spline
M25T (Ø5,0mm)
Length (mm)
30,00
Height (mm)
34,00
Voltage min. (V)
4,80
Torque min. (kg/cm)
2,80
Setting Speed min. (sec/60 degrees)
0,18
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
175°
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
3
Current Draw max. (mA)
1400
Torque min. (N/cm)
27,50
Torque max. (N/cm)
31,40
Housing
Engineering Plastic
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Metal
