Servo HS-5086WP
Item No.: 115086
4,8-6 V | max. 31,4 N/cm | max. 0,15 Sek/60° | IP67
Contents:
- 1x HiTEC Servo HS-5086WP
- Servo arm set (M-I, M-X, M-O)
- Mounting hardware
Description
The HiTEC servo HS-5086WP uses a potentiometer for direct position feedback and a metal gear train that transmits force cleanly. At 6 V, the actuator delivers 0.15 s/60° and 35 N·cm, enabling fast, controlled moves with stable endpoints. Rated IP67, it is protected against dust and temporary immersion, making outdoor or wet-area deployments straightforward. The 3.5–8.4 V range creates design flexibility and simplifies installation in existing systems. Digital control provides crisp response and high holding torque, making repeatable motion profiles easy to implement. This servo motor combines a compact form with dependable performance when reliability and precise positioning are essential.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
15,20
Motor Type
Cored Metal Brush
Encoder
Potentiometer
IP Protection Class
IP67
Communication
PWM
Servo Type
Digital
Voltage max. (V)
6,00
Torque max. (kg/cm)
3,60
Setting Speed max. (sec/60 degrees)
0,15
Hitec Servo Series
HS-5XXX Series
Weight (gramm)
28,50
Horn Gear Spline
H24T (Ø6,0mm)
Length (mm)
31,00
Height (mm)
31,00
Voltage min. (V)
4,80
Torque min. (kg/cm)
3,00
Setting Speed min. (sec/60 degrees)
0,18
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
175°
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
3
Current Draw max. (mA)
1400
Torque min. (N/cm)
27,50
Torque max. (N/cm)
31,40
Housing
Engineering Plastic
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Metal
Optional Accessories

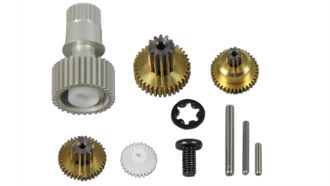

Spare Parts
