Description

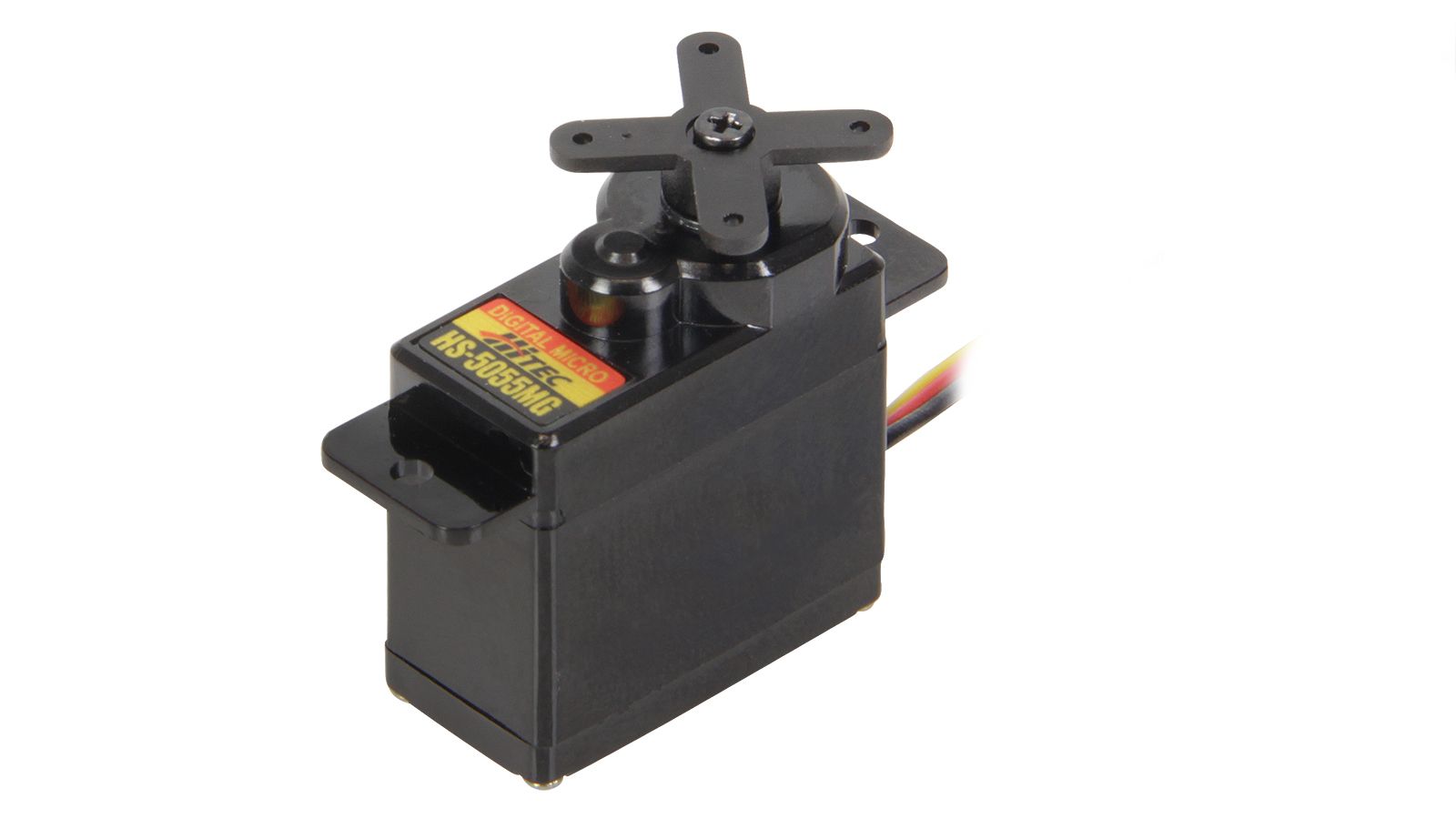

Small, powerful digital servo of the < 12 mm class
The HS-5055MG Ultra-Nano digital servo is fully programmable and offers unparalleled durability thanks to its exclusive metal gears, which are particularly well suited when low backlash and high positioning precision with moderate mechanical shock loads are important.
The HS-5055MG servo delivers maximum performance with minimum weight and with this data is also a favorite for industrial applications. Long life and uniquely designed gearing make it one of the most reliable and efficient mini servos on the market.
The HS-5055MG is a perfect choice for "smaller" high performance electric helicopters, airplanes and gliders.
The HS-5055MG Ultra-Nano digital servo is fully programmable and offers unparalleled durability thanks to its exclusive metal gears, which are particularly well suited when low backlash and high positioning precision with moderate mechanical shock loads are important.
The HS-5055MG servo delivers maximum performance with minimum weight and with this data is also a favorite for industrial applications. Long life and uniquely designed gearing make it one of the most reliable and efficient mini servos on the market.
The HS-5055MG is a perfect choice for "smaller" high performance electric helicopters, airplanes and gliders.
Technical data
Servo Width (mm)
11,60
Motor Type
Brushed Motor
Encoder
Potentiometer
Waterproof
No
Communication
PWM
Servo Type
Digital
Max. Voltage (V)
6,00
Max. Force (kg/cm)
1,60
Max. Setting Speed (sec / 60 degrees)
0,17
Gearing
F15T (Ø4,0)
Weight (gramm)
9,50

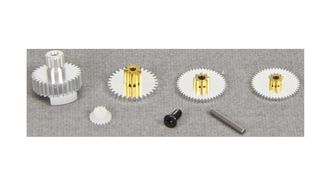

Spare Parts
