Servo HS-125MG
Item No.: 112125
4,8-6 V | max. 34,3 N/cm | max. 0,13 Sek/60° | IP4X
Contents:
- 1x HiTEC Servo HS-125MG
- 1x Servo arm MS-L25
- Mounting hardware
Description
When speed and precise motion in ultra-slim spaces matter, this HiTEC servo motor delivers exactly that. The HS-125MG uses a potentiometer for accurate position feedback and runs as an analog servo over the proven PWM interface, making integration with existing controllers straightforward. Its iron-core brushed motor achieves a transit time of 0.13 s per 60° at 6.0 V and provides 34 N·cm of torque. A metal geartrain with a ball bearing ensures smooth operation and dependable power transfer during frequent cycles. With a 4.8–6.0 V operating range and a width of just 10 mm (0.39 in), the actuator is ideal for tight installations that demand fast response and clean centering without sacrificing reliability.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
10,00
Motor Type
Cored Metal Brush
Encoder
Potentiometer
IP Protection Class
IP4X
Communication
PWM
Servo Type
Analog
Voltage max. (V)
6,00
Torque max. (kg/cm)
3,50
Setting Speed max. (sec/60 degrees)
0,13
Hitec Servo Series
HS-Series
Weight (gramm)
24,00
Horn Gear Spline
M25T (Ø5,0mm)
Length (mm)
30,00
Height (mm)
34,00
Voltage min. (V)
4,80
Torque min. (kg/cm)
3,00
Setting Speed min. (sec/60 degrees)
0,17
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
not possible
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
7
Current Draw max. (mA)
330
Torque min. (N/cm)
29,40
Torque max. (N/cm)
34,30
Housing
Engineering Plastic
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Metal
Optional Accessories

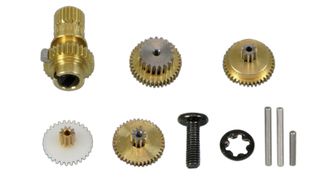

Spare Parts
