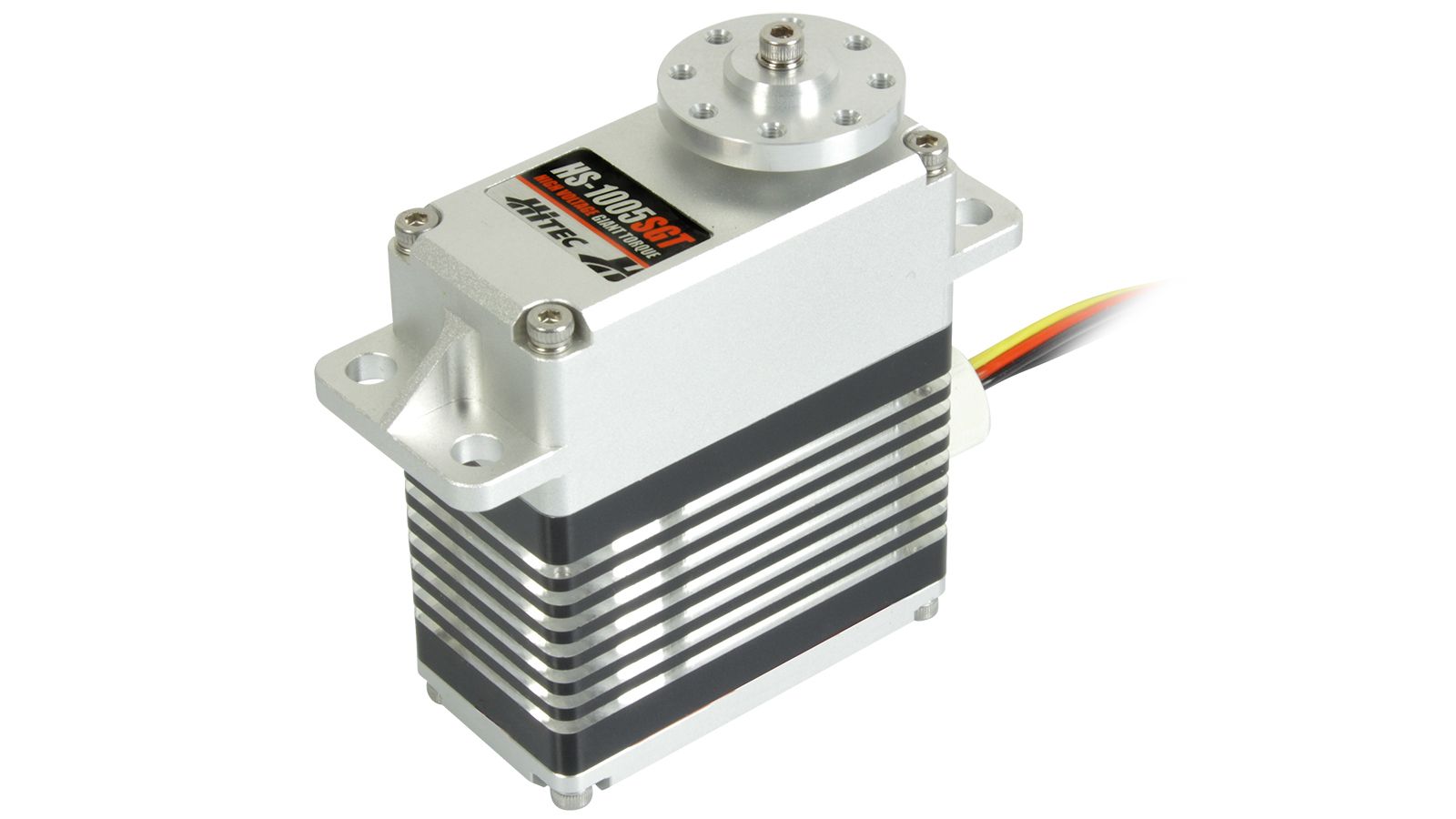

Servo HS-1005SGT
Item No.: 138105
11,1-14,8 V | max. 1078,7 N/cm | max. 0,19 Sek/60° | IP54
EUS:
This actuator falls under export control regulations. End User Statement is required.
Please contact us if you are interested in buying.
Contents:
- 1x HiTEC Servo HS-1005SGT
- Servo arm set (Q-OA, Q-IA, Q-XA, I-MO)
- Mounting hardware
Description
The HiTEC HS-1005SGT servo motor delivers maximum pulling power with clear feedback and a robust setup for harsh environments. A potentiometer provides precise position feedback and stable centering, while the proven PWM interface ties the actuator into existing controllers with ease. At 14.8 V, the brushed motor achieves 0.19 s per 60° and 1078 N·cm of torque. Separate supply domains support flexible architectures: motor 9.0–16.8 V, signal 3.5–8.4 V. A steel gear train engineered for high torque transfers power efficiently and keeps operation smooth. With IP54 protection, the servo resists dust and splashing water. The HS-1005SGT combines precision with immense power reserves in a compact industrial servo.
For further technical advice, please contact our Technical Support team📧.
For further technical advice, please contact our Technical Support team📧.
Technical data
Width (mm)
33,00
Motor Type
Cored Carbon Brush
Encoder
Potentiometer
IP Protection Class
IP54
Communication
PWM
Servo Type
Analog
Voltage max. (V)
14,80
Torque max. (kg/cm)
110,00
Setting Speed max. (sec/60 degrees)
0,19
Hitec Servo Series
HS-1XXX Series
Weight (gramm)
310,00
Horn Gear Spline
15T (Ø8,0mm)
Length (mm)
64,00
Height (mm)
73,00
Voltage min. (V)
11,10
Torque min. (kg/cm)
84,00
Setting Speed min. (sec/60 degrees)
0,26
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
not possible
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
90
Current Draw max. (mA)
6500
Torque min. (N/cm)
823,80
Torque max. (N/cm)
1078,70
Housing
Aluminum Alloy
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Steel
