Description

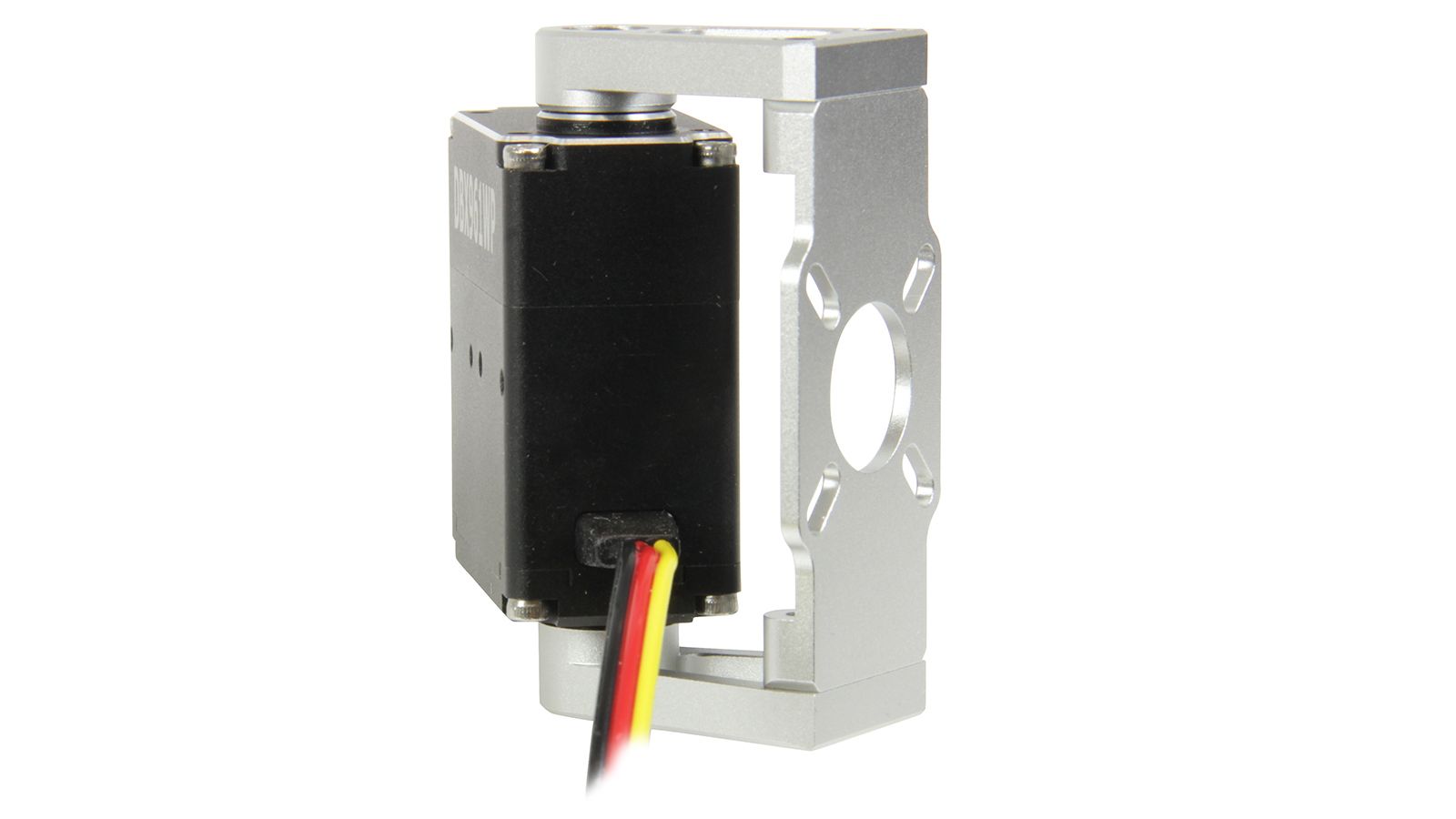

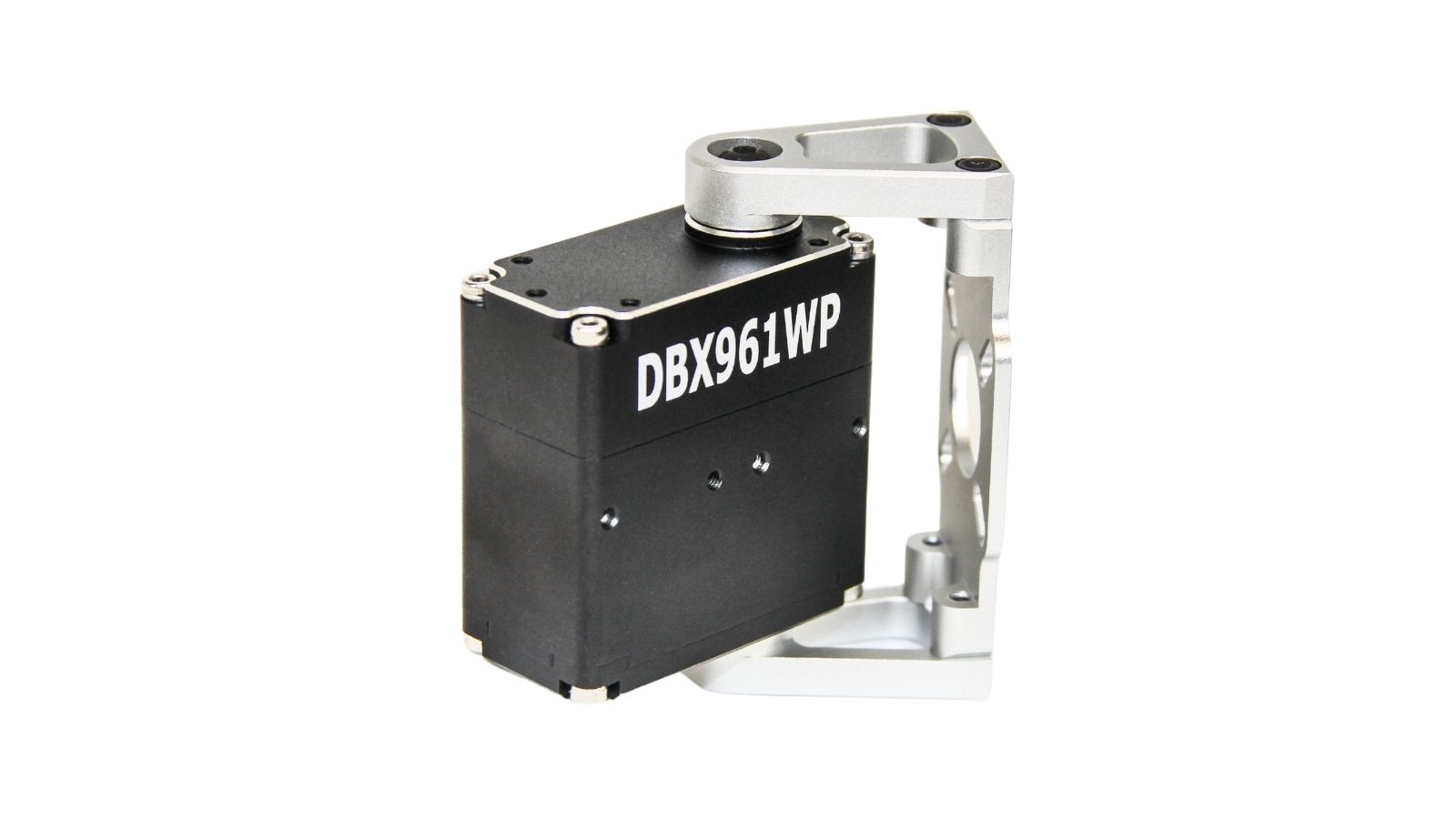

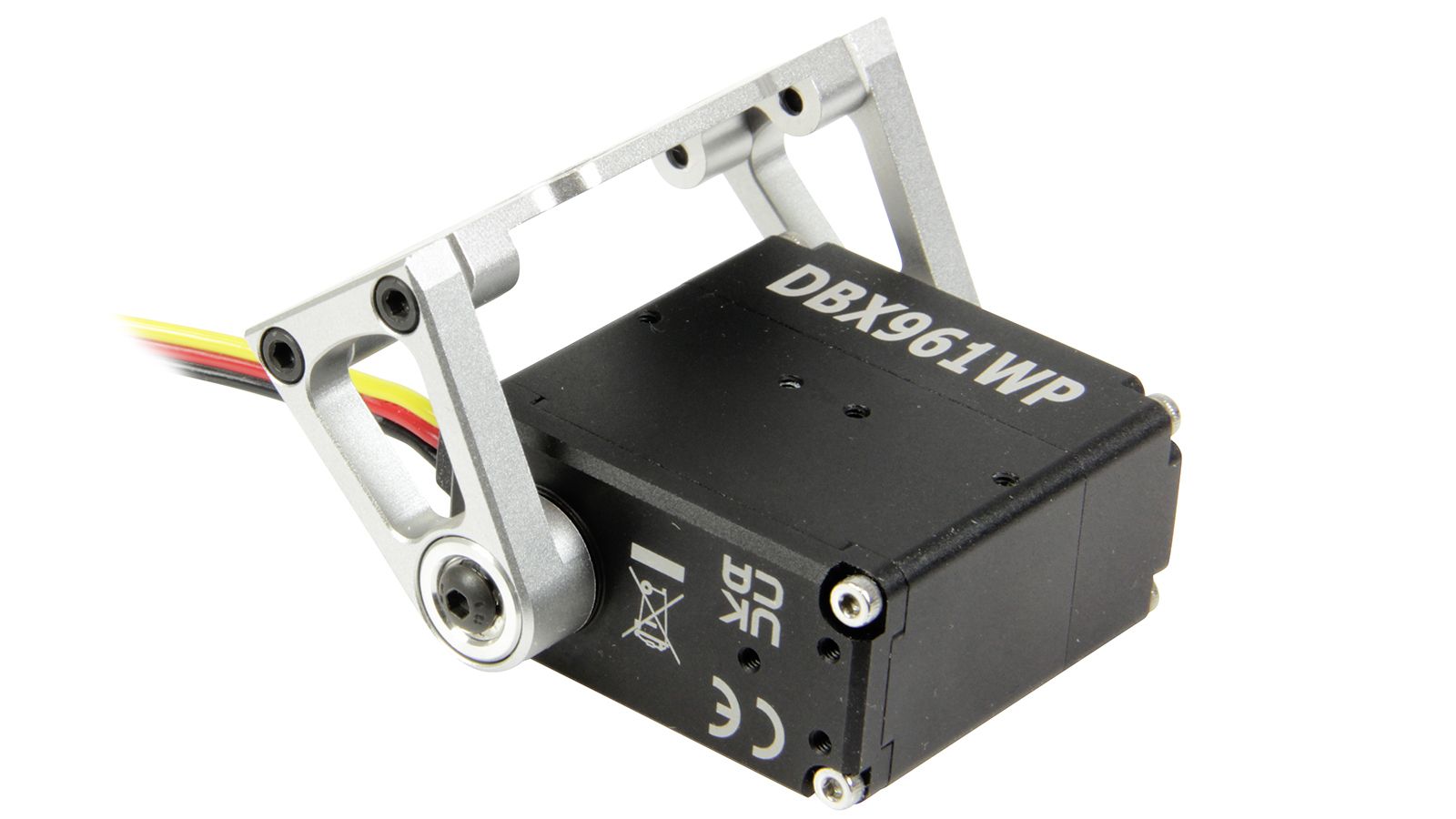

With PWM/TTL control and a compact footprint, the HiTEC DBX961WP sets a high bar for integrated positioning tasks. This digital servo motor uses a brushless drive for high efficiency, crisp centering, and long service life. Its IP67 rating ensures dependable operation in dusty or wet environments.
Delivering 539.60 N/cm of actuating force, it provides ample headroom for precise moves and stable holding. As an actuator, it drops cleanly into existing control architectures via PWM/TTL, while the precise potentiometer supplies repeatable position feedback. The hardened steel gear train transfers power with robust, low-wear behavior—ideal when high forces must be handled in tight spaces. A 6.00–7.4 V operating range keeps power planning simple and compatible with common supply concepts.
HiTEC combines strong mechanics with modern signal handling: a servo motor that unites integration, precision, and durability—well suited for applications in robotics, HVAC, and industrial automation.
For further technical advice, please contact our Technical Support team📧.
Delivering 539.60 N/cm of actuating force, it provides ample headroom for precise moves and stable holding. As an actuator, it drops cleanly into existing control architectures via PWM/TTL, while the precise potentiometer supplies repeatable position feedback. The hardened steel gear train transfers power with robust, low-wear behavior—ideal when high forces must be handled in tight spaces. A 6.00–7.4 V operating range keeps power planning simple and compatible with common supply concepts.
HiTEC combines strong mechanics with modern signal handling: a servo motor that unites integration, precision, and durability—well suited for applications in robotics, HVAC, and industrial automation.
For further technical advice, please contact our Technical Support team📧.
Technical data

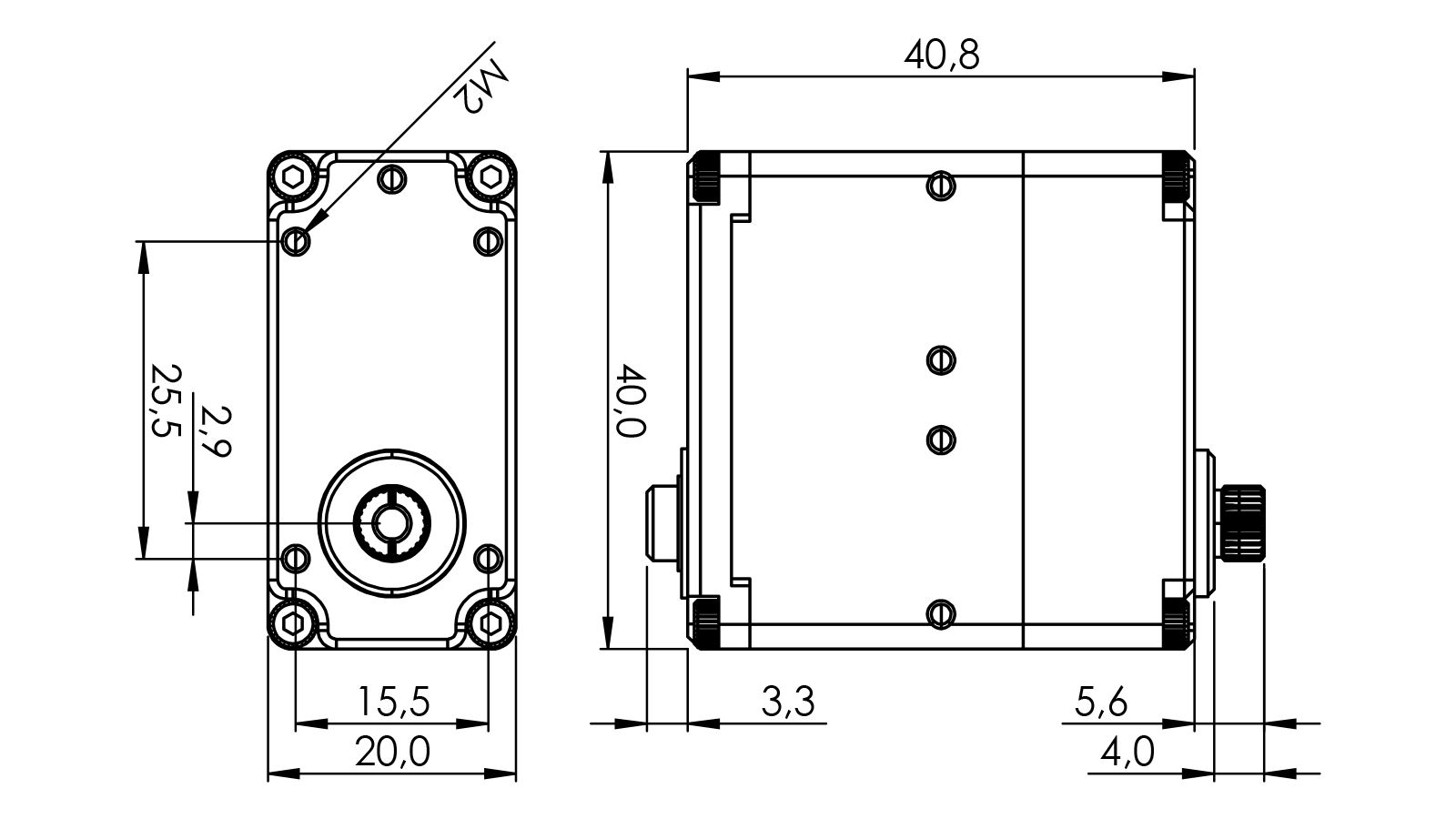

Width (mm)
20,00
Motor Type
BLDC
Encoder
Potentiometer
IP Protection Class
IP67
Communication
PWM / TTL
Servo Type
Digital
Voltage max. (V)
7,40
Torque max. (kg/cm)
55,00
Setting Speed max. (sec/60 degrees)
0,15
Hitec Servo Series
DB-Series
Weight (gramm)
106,70
Horn Gear Spline
H25T (Ø6,0mm)
Length (mm)
40,00
Height (mm)
40,80
Voltage min. (V)
6,00
Torque min. (kg/cm)
55,00
Setting Speed min. (sec/60 degrees)
0,18
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
260°
Multi Turn
not possible
Contniuos Rotation
No
Current Draw at idle (mA)
35
Current Draw max. (mA)
8000
Torque min. (N/cm)
539,60
Torque max. (N/cm)
539,60
Housing
Rugged Aluminum
Connector
Hitec 3 Pin (Uni)
Gearing (characteristic)
Hardened Steel
