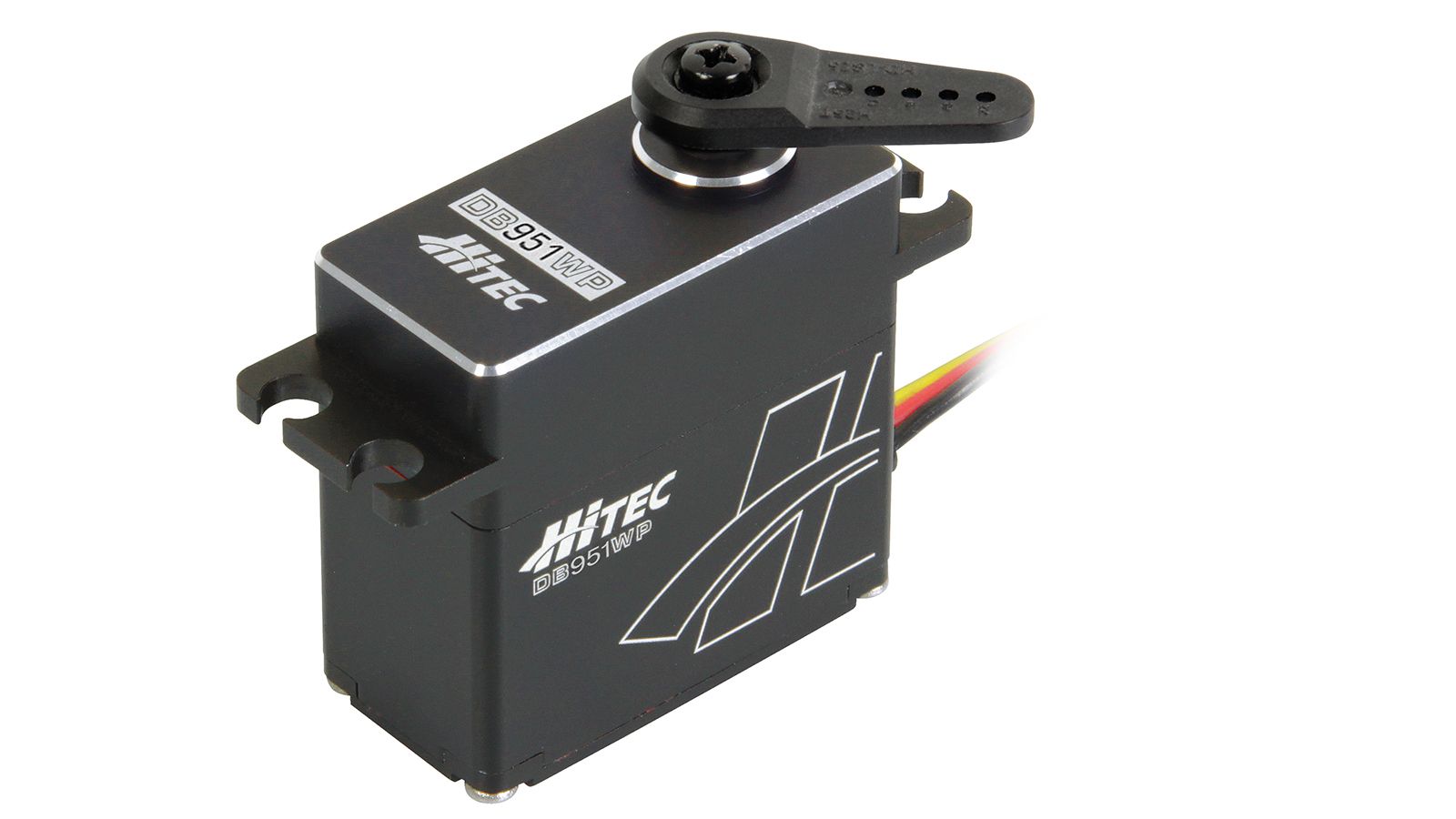

Servo DB951WP
Item No.: 1-03088
20mm, High Speed, Brushless, Hardened Steel Gear, Waterproof Actuator (7.4V)
Description
Featuring a torsionally rigid design and construction, the DB951WP boasts hardened steel gears, an ultra-efficient brushless motor, and a waterproof aluminum case, CNC-machined from solid billet stock. This powerhouse delivers an impressive 528 oz-in of torque with blistering speeds of 0.10 sec/60° @ 7.4 volts. Its superior precision, durability and speedy gear ratio make it the perfect servo for commercial applications demanding maximum performance and pinpoint accuracy.
Technical data
Servo Width (mm)
20,00
Motor Type
BLDC
Encoder
Potentiometer
Waterproof
IP67
Communication
PWM
Servo Type
Digital
Max. Voltage (V)
7,40
Max. Force (kg/cm)
38,00
Max. Setting Speed (sec / 60 degrees)
0,10
Hitec Servo Series
DB-Series
Weight (gramm)
90,00
Gearing
H25T (Ø6,0mm)
