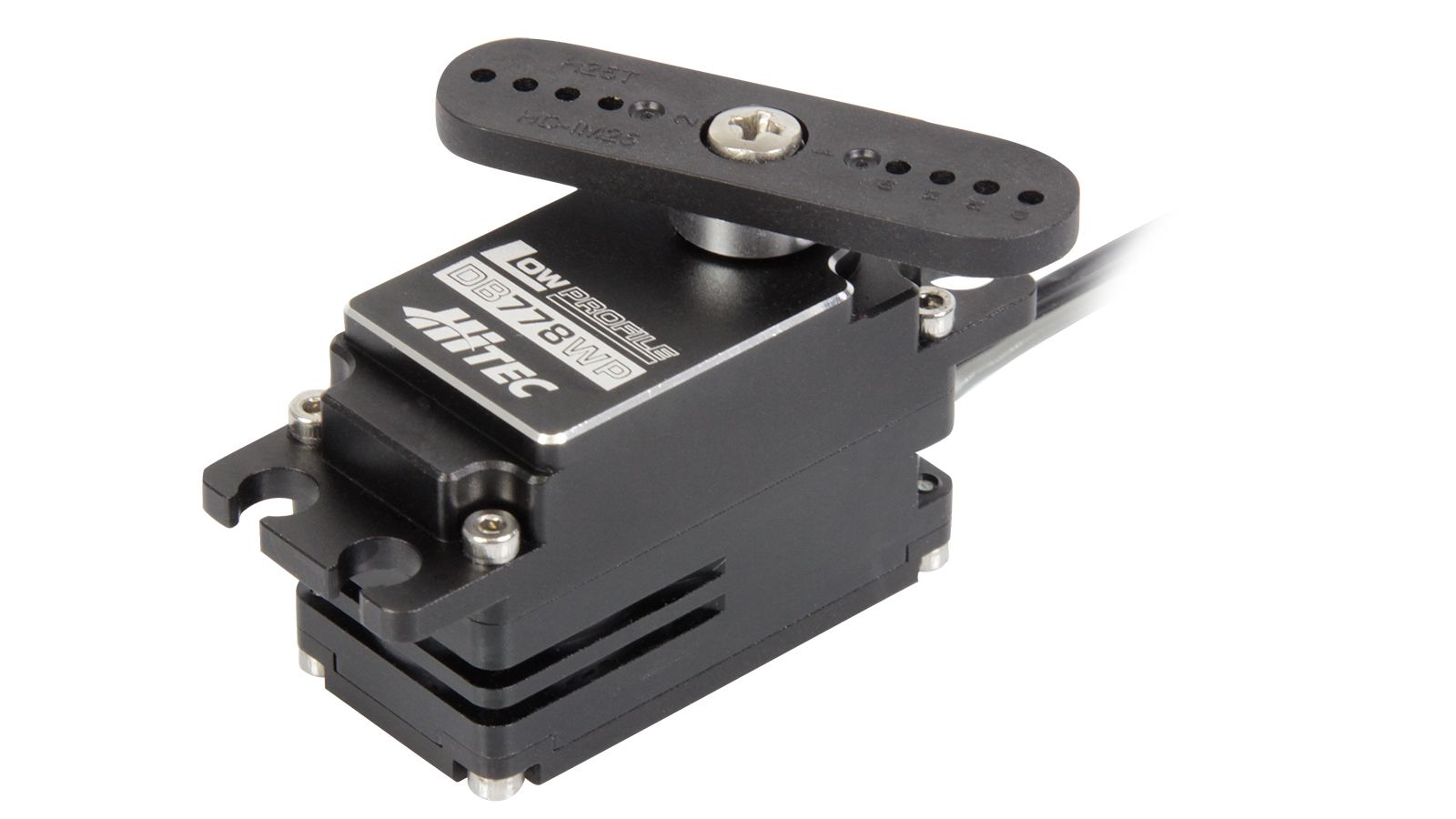

Servo DB778WP
Item No.: 1-02853
21mm, Brushless, Low Profile, High Voltage, High Torque, Steel Gear, Waterproof Actuator (7.4V)
Description
Our low profile DB778WP is a 21mm, steel gear industrial actuator engineered with an ultra-efficient brushless motor, high-resolution digital circuit and an all-aluminium, IP-67 rated waterproof case. Its superior torque and premium-quality construction make this servo the perfect choice for commercial applications needing high performance in compact spaces
Technical data
Servo Width (mm)
21,00
Motor Type
BLDC
Encoder
Potentiometer
Waterproof
IP67
Communication
PWM
Servo Type
Digital
Max. Voltage (V)
7,40
Max. Force (kg/cm)
18,00
Max. Setting Speed (sec / 60 degrees)
0,10
Hitec Servo Series
DB-Series
Weight (gramm)
66,00
H25T (Ø6,0mm)
