Linear Actuator HLS12-100380
Item No.: 1-02461
4 - 8,4 V | 100 mm | 380 : 1 | max. 217,71 N | max. 4,1 mm/s
Contents:
- 1x HiTEC Linear actuator HLS12-100380
- Mounting hardware
Description
The HiTEC HLS12 100380 is a compact linear actuator designed for demanding, controlled linear motion with high actuating force. Control is provided via a traditional PWM interface, which is compatible with common servo controllers and therefore enables straightforward integration into existing systems. In this way, the push and pull linear motion along the stroke axis can be adjusted precisely over the entire 100 mm stroke, from fully retracted to fully extended.
Inside, a robust brushed motor with metal core is combined with a gearbox featuring a gear ratio of 380 to 1 and 32-bit programmable digital electronics. The gear ratio provides exceptionally high actuating force while maintaining very finely resolved motion. Overall, this combination ensures smooth and precise linear actuation with high repeatability, sensitive positioning and a compact form factor, ideal for force-intensive adjustment tasks.
For further technical advice, please contact our Technical Support team📧.
Inside, a robust brushed motor with metal core is combined with a gearbox featuring a gear ratio of 380 to 1 and 32-bit programmable digital electronics. The gear ratio provides exceptionally high actuating force while maintaining very finely resolved motion. Overall, this combination ensures smooth and precise linear actuation with high repeatability, sensitive positioning and a compact form factor, ideal for force-intensive adjustment tasks.
For further technical advice, please contact our Technical Support team📧.

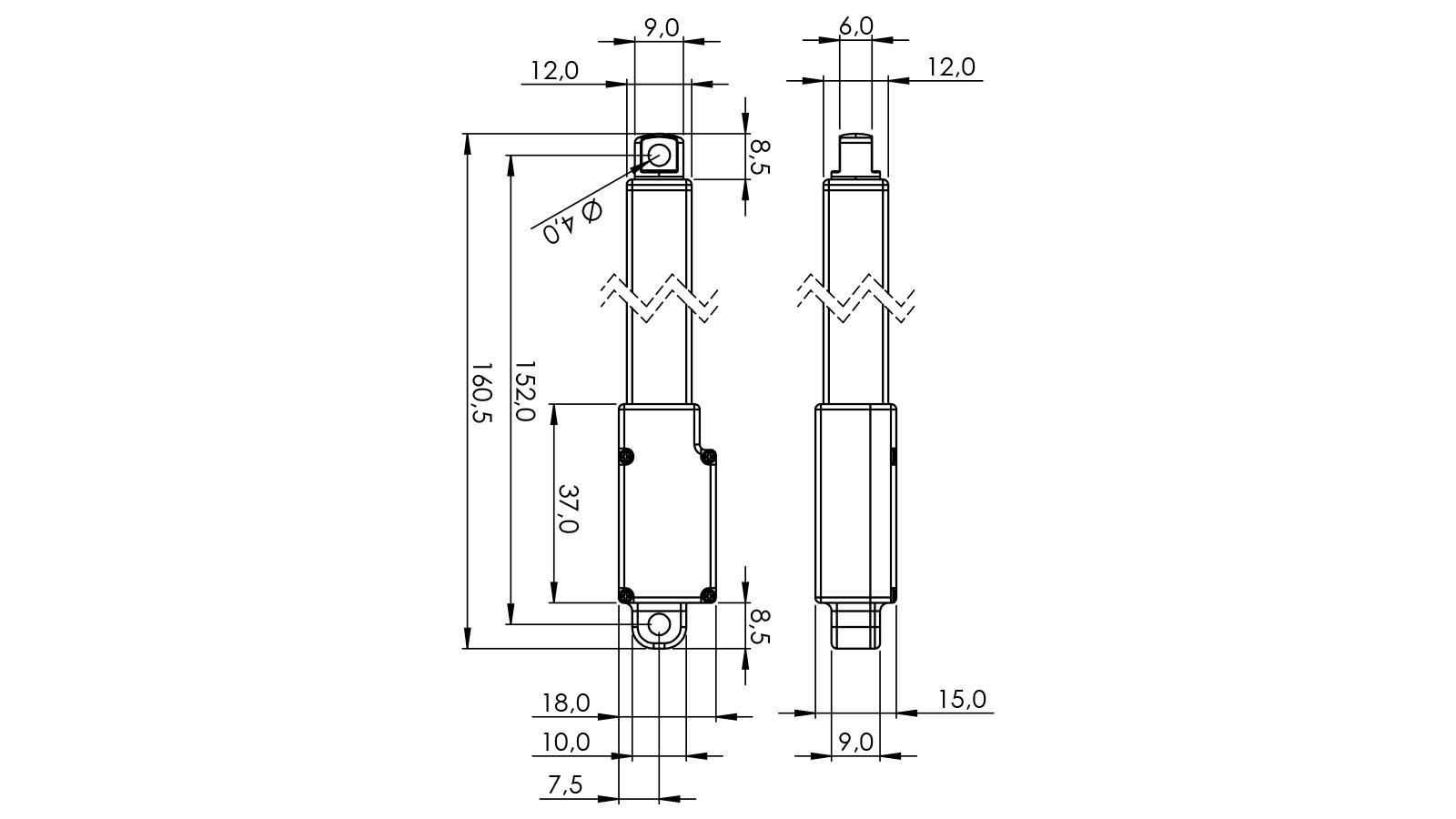

Technical data
Length (mm)
152,00
Width (mm)
15,00
Height (mm)
18,00
Weight (g)
56,00
Communication
PWM
output length (mm)
100
Transmission Ratio
380:1
Torque max. lifted at 6V (N)
117,68
Torque min. (N)
141,22
Torque max. (N)
217,71
Side load max. (N)
15,00
Speed min. (mm/s)
2,60
Speed max. (mm/s)
4,10
Voltage min. (V)
4,00
Voltage max. (V)
8,40
Motor type
Cored Metal Brush
Gearing
Metal
Housing
Engineering Plastic
Connector
Hitec 3 Pin (Uni)
Servo Type
Digital
