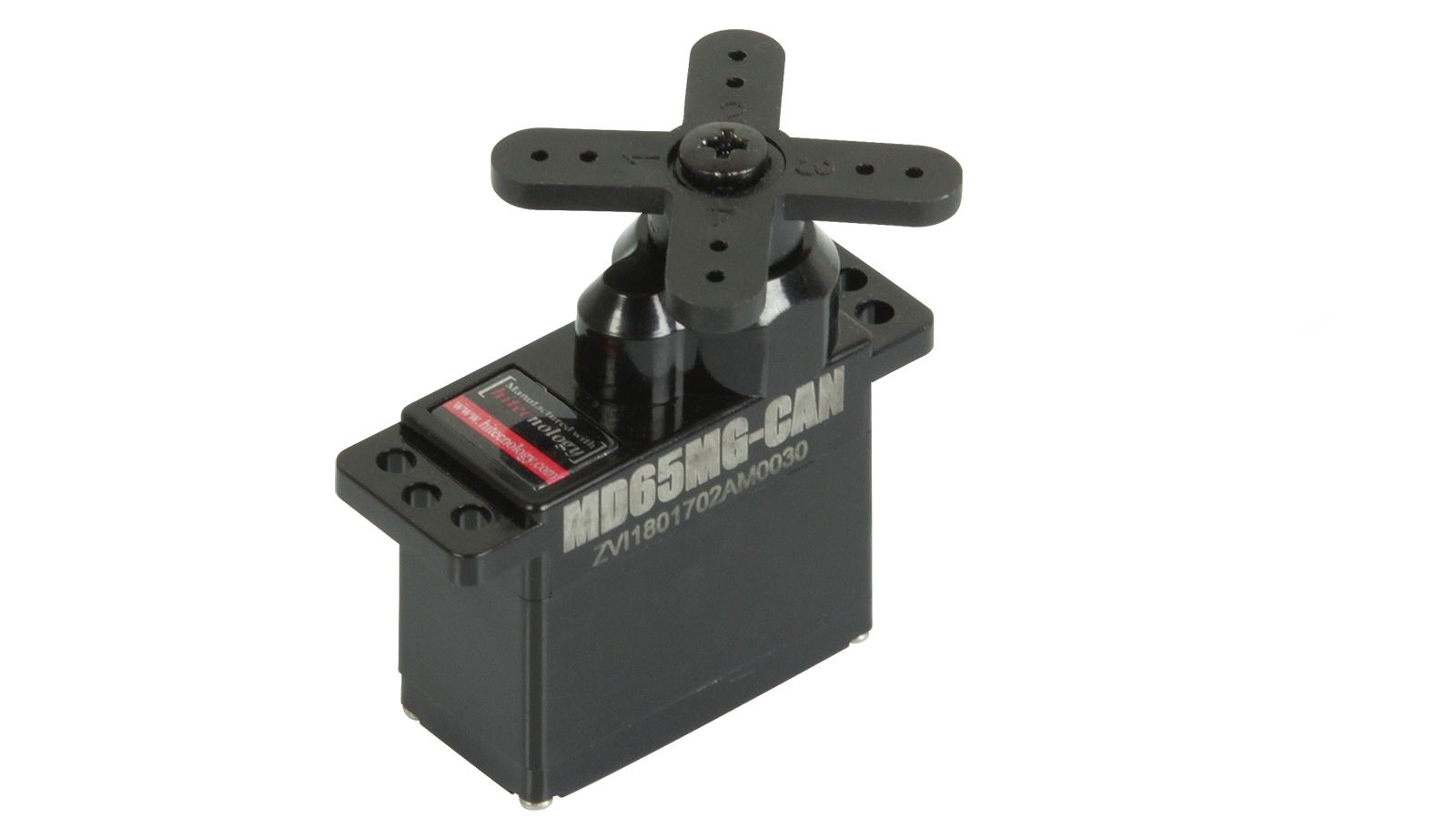

Servo MD65MG-UAVCAN / DroneCAN (AT)
Item No.: 1-01643
4,8-6 V | max. 21,57 N/cm | max. 0,11 Sek/60° | IP4X
Contents:
- 1x HiTEC Servo MD65MG- UAVCAN / DroneCAN
- Servo arm set (MS-I25, MS-X25, MS-L25)
- Mounting hardware
Description
Compact and precise: The HiTEC MD65MG servo pairs a non-contact magnetic encoder for exact feedback with quick drive dynamics. At 6 V, the metal-core brushed motor achieves 0.11 s per 60° and 21 N·cm (29.7 oz·in), ideal for fast positioning with confident control. Over UAVCAN/DroneCAN, the actuator communicates reliably in distributed systems; programmability enables application-specific parameters. The 4–8.4 V range provides headroom in power design. A ball-bearing metal gear train minimizes losses and keeps motion smooth. MD65MG shows how accurate feedback, bus communication, and a compact form translate into measurable productivity.
For further technical advice, please contact our Technical Support team?.
For further technical advice, please contact our Technical Support team?.
Technical data
Width (mm)
11,60
Motor Type
Cored Metal Brush
Encoder
Magnetic Encoder
IP Protection Class
IP4X
Communication
DroneCAN
Servo Type
Digital
Voltage max. (V)
6,00
Torque max. (kg/cm)
2,20
Setting Speed max. (sec/60 degrees)
0,11
Hitec Servo Series
MD-Series
Weight (gramm)
12,80
Horn Gear Spline
M25T (Ø5,0mm)
Length (mm)
23,60
Height (mm)
20,00
Voltage min. (V)
4,80
Torque min. (kg/cm)
1,80
Setting Speed min. (sec/60 degrees)
0,14
Angle Standard (degrees)
± 60°
Rotation Angle programmable (degrees)
300°
Multi Turn
not possible
Continuos Rotation
No
Current Draw at idle (mA)
30
Current Draw max. (mA)
1200
Torque min. (N/cm)
17,65
Torque max. (N/cm)
21,57
Housing
Engineering Plastic
Connector
Hitec 4 Pin (Uni)
Gearing (characteristic)
Metal
